INTAKE 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

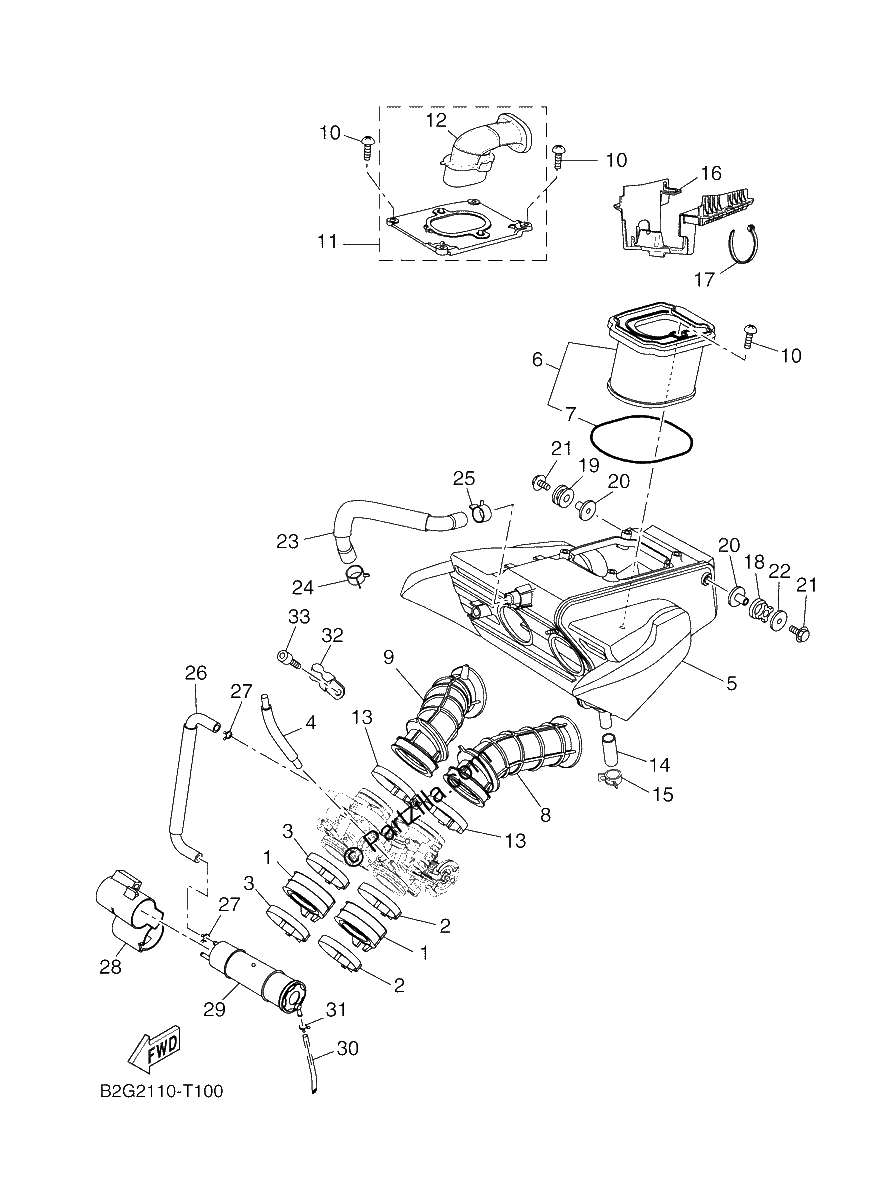

Diagrama de INTAKE 2

Repuestos

#1
1WS-13635-00-00
JOINT, INTAKE 1
$24.06¢12 029
1
#2
90450-56011-00
HOSE CLAMP ASSY
$11.36¢5 681
1
#3
90450-56012-00
HOSE CLAMP ASSY
$32.83¢16 416
1
#4
1WS-13542-00-00
HOSE, VACUUM SENSI
$4.70¢2 352
1
#5
1WS-14401-00-00
AIR CLEANER CASE A
$290.48¢145 239
1
#6
1WS-14450-00-00
ELEMENT ASSY, AIR
$38.27¢19 136
1
#7
1WS-14452-00-00
SEAL
$7.38¢3 691
1
#8
1WS-14469-01-00
FUNNEL, AIR (replaces 1WS-14469-00-00)
$23.91¢11 954
1
#9
1WS-1446C-01-00
FUNNEL 2 (replaces 1WS-1446C-00-00)
$23.62¢11 811
1
#10
90160-05013-00
SCREW, ROUND TAPPING
$6.75¢3 375
1
#11
1WS-14430-11-00
DUCT ASSY
$33.26¢16 629
1
#12
1WS-14437-11-00
. DUCT
$39.01¢19 504
1
#13
90450-56011-00
HOSE CLAMP ASSY
$11.36¢5 681
1
#14
1WS-1443E-00-00
PIPE, DRAIN
$4.46¢2 231
1
#15
90467-13083-00
CLIP
$5.77¢2 886
1
#16
B34-E4476-00-00
SEAL
$53.45¢26 726
1
#17
90464-16061-00
BAND
$7.68¢3 841
1
#18
90480-15001-00
Grommet
$7.68¢3 841
1
#19
90480-15014-00
Grommet
$4.40¢2 202
1
#20
90387-06300-00
Collar
$7.28¢3 640
1
#21
90111-06156-00
BOLT, HEX. SOCKET BUTTON
$1.74¢868
1
#22
90201-064K6-00
WASHER, PLATE
$6.88¢3 439
1
#23
1WS-11166-00-00
PIPE, BREATHER 1
$23.78¢11 891
1
#24
90467-17128-00
CLIP (replaces 90467-17089-00)
$7.30¢3 651
1
#25
90467-160A2-00
CLIP
$4.77¢2 386
1
#26
2RC-24323-00-00
PIPE 12 | FOR CAL
$40.70¢20 349
1
#27
90467-090A2-00
Clip
$2.74¢1 368
1
#28
2RC-24182-00-00
DAMPER, LOCATING 2 | FOR CAL
$89.35¢44 677
1
#29
2RC-24170-00-00
CANISTER ASSY | FOR CAL
$530.62¢265 311
1
#30
2RC-24324-00-00
PIPE 13 | FOR CAL
$11.43¢5 716
1
#31
90467-090A2-00
Clip
$2.74¢1 368
1
#32
1WS-24135-00-00
CLAMP 1 | FOR U49
$10.82¢5 411
1
#33
92017-06010-00
BOLT, BUTTON HEAD
$3.36¢1 679
1
