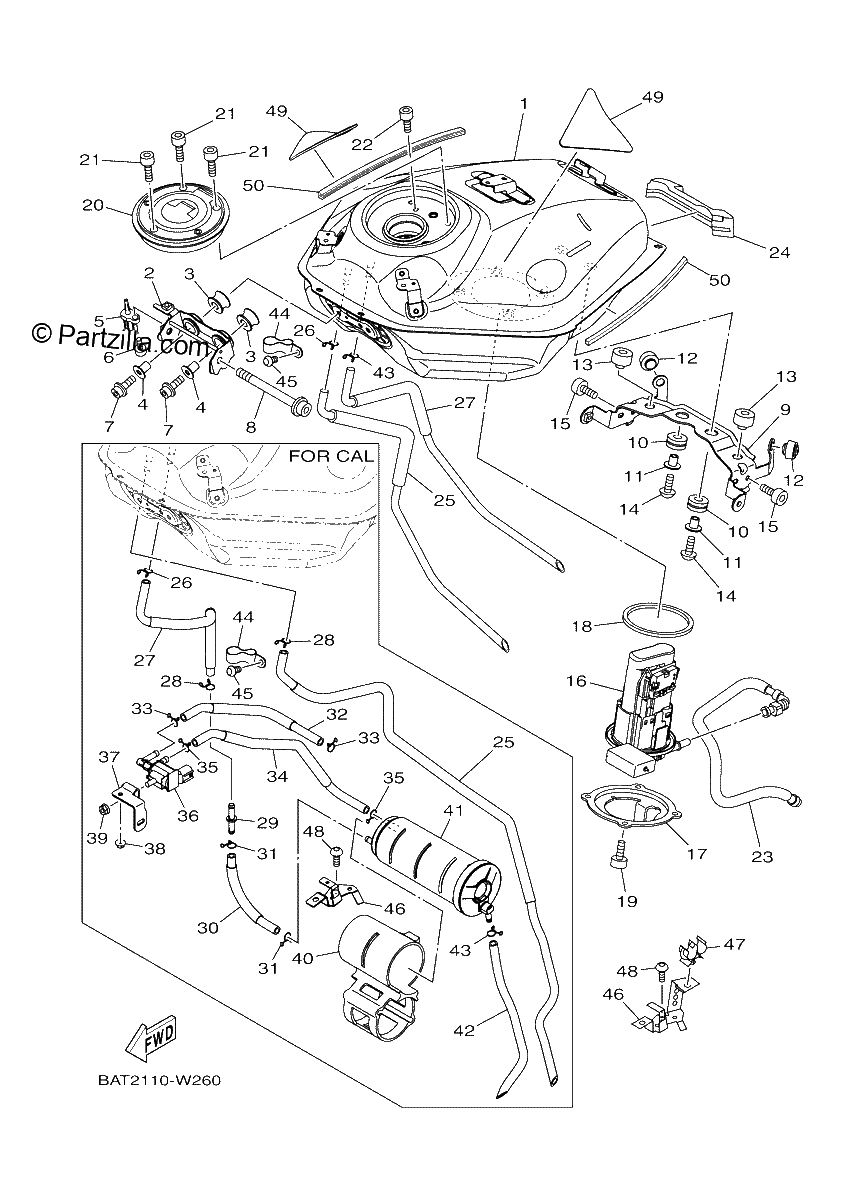

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FUEL TANK COMP.
$307.45¢153 726
#2
BRACKET, TANK FITTING
$28.65¢14 323
#3
GROMMET
$3.61¢1 805
#4
COLLAR
$6.22¢3 111
#5
SENSOR, AIR TEMPERATURE
$32.97¢16 485
#6
SCREW, PAN HEAD
$4.28¢2 139
#7
BOLT, HEXAGON SOCKET HEAD
$8.92¢4 462
#8
BOLT, FLANGE
$4.74¢2 369
#9
BRACKET, TANK FITTING
$47.78¢23 891
#10
GROMMET
$9.22¢4 611
#11
COLLAR
$9.50¢4 749
#12
STOPPER, MAIN STAND
$1.77¢886
#13
STOPPER, MAIN STAND
$9.28¢4 640
#14
BOLT, HEX. SOCKET BUTTON
$5.39¢2 697
#15
BOLT
$6.75¢3 375
#16
FUEL PUMP COMP.
$465.77¢232 886
#17
Bracket, Fuel Pump
$14.20¢7 101
#18
O-RING
$26.89¢13 443
#19
BOLT
$5.39¢2 697
#20
CAP ASSY
$248.96¢124 482
#21
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
#22
BOLT,HEX.SOCKET HEAD
$1.84¢920
#23
PIPE, FUEL 1
$84.29¢42 147
#24
DAMPER, side cover
$12.89¢6 446
#25
PIPE, OVERFLOW | FOR U49
$31.39¢15 698
#26
Clip
$2.74¢1 368
#27
PIPE 2
$25.17¢12 587
#43
Clip
$2.74¢1 368
#44
CLAMP 1 | FOR U49
$10.82¢5 411
#45
BOLT, BUTTON HEAD
$3.36¢1 679
#46
BRACKET, CANISTOR | FOR U49
$15.84¢7 918
#47
CLAMP
$4.00¢2 001
#48
BOLT, HEX. SOCKET BUTTON
$6.87¢3 433
#49
DAMPER, PLATE 1
$3.21¢1 604
#50
MOLD, FUEL TANK
$27.95¢13 973
