COWLING

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

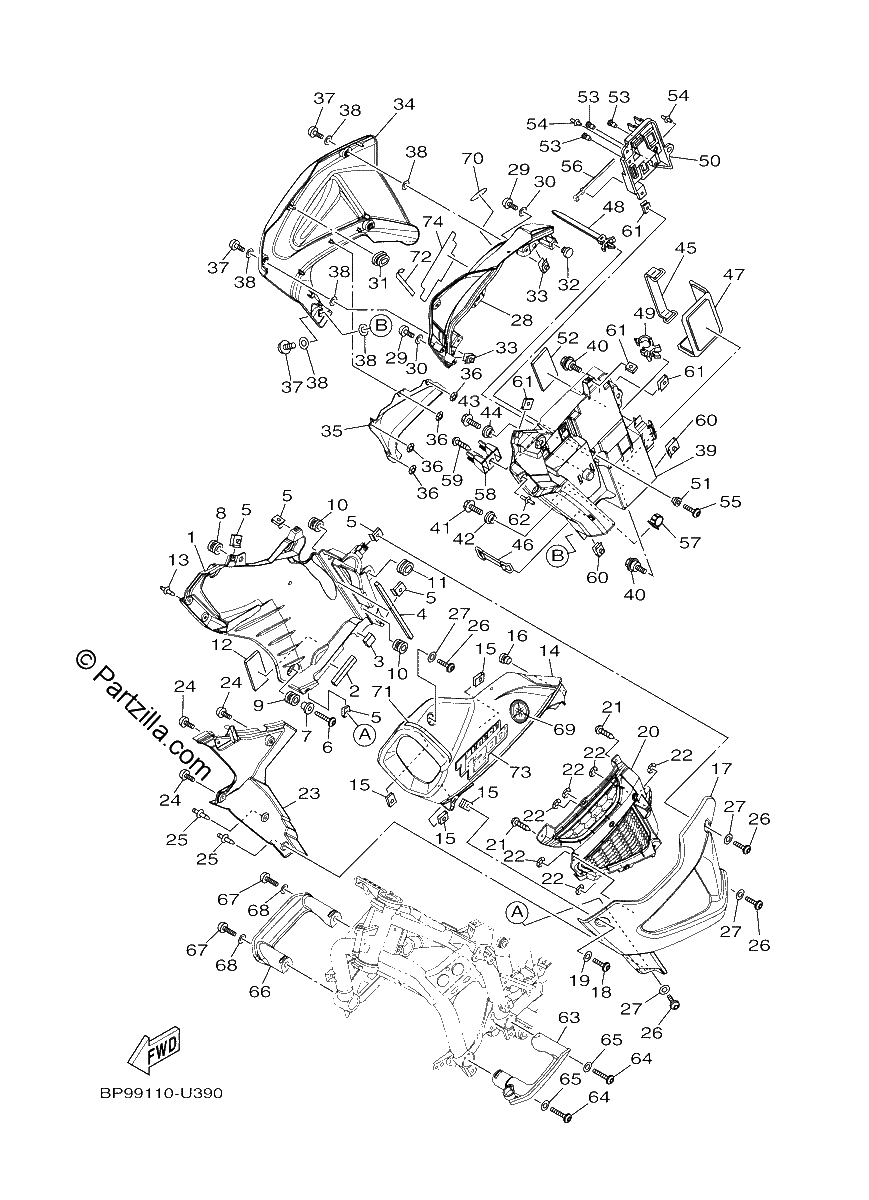

Diagrama de COWLING

Repuestos

#1
23P-2137U-00-00
GUIDE, AIR 1
$241.88¢120 940
1
#2
90520-10006-00
DAMPER, PLATE
$1.75¢874
1
#3
90520-10007-00
DAMPER, PLATE
$1.70¢851
1
#4
2D1-2174Y-00-00
DAMPER
$1.79¢897
1
#5
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#6
90111-06137-00
BOLT,HEX. SOCKET BUTTON
$5.23¢2 616
1
#7
90387-07042-00
COLLAR
$4.54¢2 271
1
#8
90480-12596-00
GROMMET
$9.99¢4 997
1
#9
90480-14452-00
GROMMET
$7.30¢3 651
1
#10
90480-18431-00
GROMMET
$7.51¢3 755
1
#11
90480-01558-00
Grommet
$4.31¢2 156
1
#12
5XT-21746-00-00
DAMPER
$7.23¢3 617
1
#13
90269-06008-00
RIVET
$8.10¢4 048
1
#14
23P-2842M-00-P6
COVER 1
$305.77¢152 887
1
#15
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#16
90338-10132-00
PLUG
$2.89¢1 443
1
#17
23P-2835U-00-P1
PANEL 1 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$273.00¢136 499
1
#18
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#19
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#20
23P-2837V-00-00
GRILL, AIR OUTLET 1
$169.38¢84 692
1
#21
97702-50014-00
SCREW, TAPPING
$6.76¢3 381
1
#22
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#23
23P-2836K-00-00
PANEL, INNER 1
$31.96¢15 979
1
#24
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$5.69¢2 846
1
#25
90269-06008-00
RIVET
$8.10¢4 048
1
#26
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#27
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#28
23P-2842N-00-P6
COVER 2
$231.06¢115 529
1
#29
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#30
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#31
90480-01558-00
Grommet
$4.31¢2 156
1
#32
90338-10132-00
PLUG
$2.89¢1 443
1
#33
5PW-2177L-01-00
PLATE, SPRING
$6.82¢3 410
1
#34
23P-2835V-00-P1
PANEL 2 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$286.59¢143 296
1
#35
23P-28365-00-00
COVER
$17.69¢8 844
1
#36
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#37
14B-28386-00-00
HEAD
$10.43¢5 215
1
#38
2TK-21757-00-00
WASHER,SPECIAL 1
$1.89¢943
1
#39
23P-8210E-01-00
BATTERY BOX ASSY
$44.02¢22 011
1
#40
90109-06171-00
BOLT
$7.10¢3 548
1
#41
95822-06016-00
BOLT, FLANGE
$1.64¢822
1
#42
90387-06153-00
COLLAR
$6.30¢3 151
1
#43
95802-06016-00
Bolt, Flange
$1.64¢822
1
#44
90387-066R8-00
COLLAR
$7.24¢3 622
1
#45
137-82131-01-00
BAND, BATTERY
$23.67¢11 833
1
#46
116-82131-00-00
BAND, BATTERY
$28.98¢14 490
1
#47
23P-82122-00-00
SEAT, BATTERY
$35.02¢17 509
1
#48
90464-50001-00
CLAMP
$2.21¢1 104
1
#49
90464-16006-00
CLAMP
$9.12¢4 560
1
#50
23P-28396-00-00
PLATE 1
$25.82¢12 909
1
#51
90387-06184-00
COLLAR
$4.98¢2 490
1
#52
5TH-21268-01-00
SEAL
$7.28¢3 640
1
#53
90338-06018-00
PLUG
$6.22¢3 111
1
#54
90269-06008-00
RIVET
$8.10¢4 048
1
#55
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
#56
90464-34002-00
CLAMP
$1.82¢909
1
#57
90464-20021-00
CLAMP
$4.51¢2 254
1
#58
23P-28321-00-00
STAY 1
$5.72¢2 858
1
#59
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#60
5PW-2177L-01-00
PLATE, SPRING
$6.82¢3 410
1
#61
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#62
90269-06008-00
RIVET
$8.10¢4 048
1
#63
23P-2834V-00-00
PROTECTOR 1
$67.48¢33 741
1
#64
92012-08030-00
BOLT, BUTTON HEAD
$6.20¢3 099
1
#65
90201-08043-00
WASHER, plate
$6.32¢3 162
1
#66
23P-2834W-00-00
PROTECTOR 2
$62.77¢31 383
1
#67
92012-08030-00
BOLT, BUTTON HEAD
$6.20¢3 099
1
#68
90201-08043-00
WASHER, plate
$6.32¢3 162
1
#69
5YU-2411B-01-00
EMBLEM
$57.82¢28 911
1
#70
5YU-2411B-01-00
EMBLEM
$57.82¢28 911
1
#71
BP8-28391-40-00
GRAPHIC 1
$18.17¢9 085
1
#72
BP8-28392-40-00
GRAPHIC 2
$17.65¢8 826
1
#73
BP8-2834C-20-00
EMBLEM, 1
$22.45¢11 224
1
#74
BP8-2834C-20-00
EMBLEM, 1
$22.45¢11 224
1
