FRONT MASTER CYLINDER 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

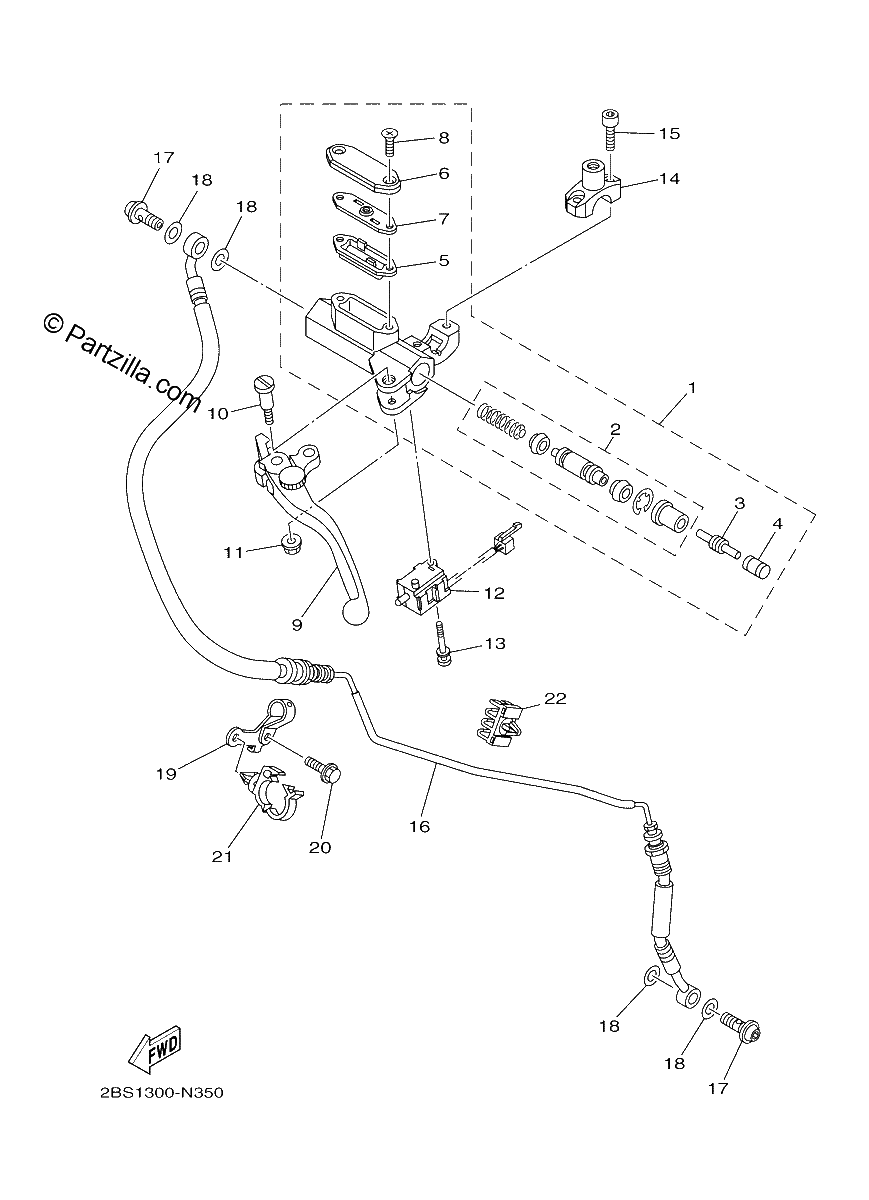

Diagrama de FRONT MASTER CYLINDER 2

Repuestos

#1
2BS-26401-00-00
MASTER CYLINDER SUB ASSY
$368.71¢184 356
1
#2
2BS-26402-00-00
CYLINDER KIT, MASTER (CLUTCH
$50.17¢25 088
1
#3
5YU-26464-00-00
ROD, PUSH
$9.68¢4 838
1
#4
3GM-26455-00-00
BUSH
$22.45¢11 225
1
#5
5YU-25854-50-00
DIAPHRAGM, RESERVOIR
$12.04¢6 019
1
#6
5YU-25852-50-00
CAP, RESERVOIR
$35.88¢17 938
1
#7
5YU-25855-50-00
BUSH, DIAPHRAGM
$10.45¢5 225
1
#8
98707-04012-00
SCREW, FLAT HEAD
$1.71¢856
1
#9
5YU-83912-11-00
LEVER 1
$122.76¢61 381
1
#10
23P-2589F-00-00
BOLT, LEVER
$12.69¢6 344
1
#11
95607-06100-00
NUT, U
$2.86¢1 431
1
#12
1MC-82917-01-00
SWITCH
$163.39¢81 694
1
#13
90159-04011-00
SCREW, WITH WASHER
$3.89¢1 944
1
#14
5YU-26393-10-00
HOLDER
$38.35¢19 175
1
#15
5YU-26332-00-00
BOLT
$2.31¢1 156
1
#16
23P-26470-00-00
HOSE, CLUTCH
$115.26¢57 631
1
#17
90401-10172-00
BOLT, UNION
$4.41¢2 206
1
#18
90201-10118-00
WASHER, PLATE
$3.44¢1 719
1
#19
23P-26481-00-00
HOLDER, 2
$9.85¢4 925
1
#20
95022-06010-00
BOLT, FLANGE
$6.49¢3 244
1
#21
90464-20010-00
CLAMP
$2.58¢1 288
1
#22
90464-07262-00
CLAMP
$4.70¢2 350
1
