SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

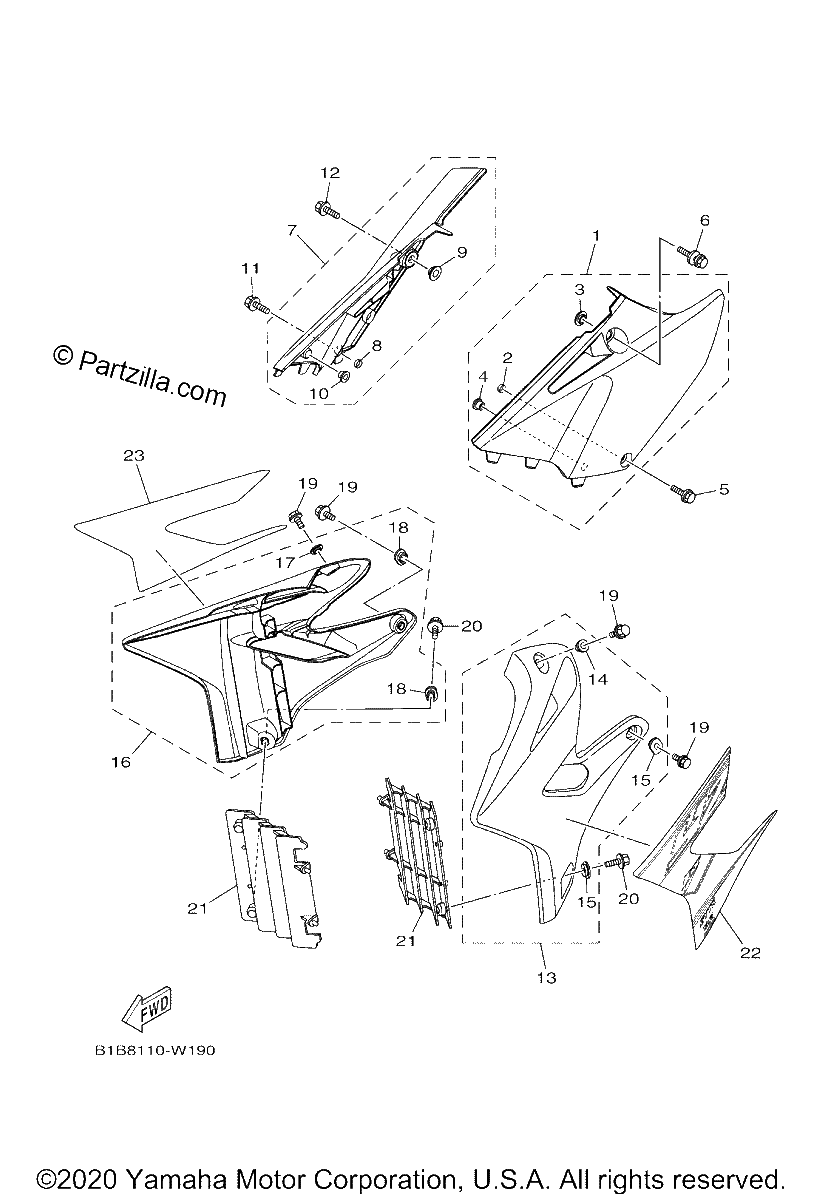

Diagrama de SIDE COVER

Repuestos

#1
1SS-21710-10-00
SIDE COVER ASSY 1
$37.82¢18 912
1
#2
90387-060U2-00
COLLAR
$8.69¢4 347
1
#3
5BE-21749-00-00
Collar
$5.27¢2 633
1
#4
90480-10068-00
GROMMET (replaces 90480-08608-00)
$7.42¢3 709
1
#5
90109-06304-00
BOLT
$0.99¢494
1
#6
90119-08095-00
BOLT, WITH WASHER
$6.83¢3 415
1
#7
1SS-21720-10-00
SIDE COVER ASSY 2
$37.82¢18 912
1
#8
90387-060U2-00
COLLAR
$8.69¢4 347
1
#9
5BE-21749-00-00
Collar
$5.27¢2 633
1
#10
90480-10068-00
GROMMET (replaces 90480-08608-00)
$7.42¢3 709
1
#11
90109-06304-00
BOLT
$0.99¢494
1
#12
90119-08095-00
BOLT, WITH WASHER
$6.83¢3 415
1
#13
1SS-21730-00-00
SIDE COVER ASSY 3
$30.44¢15 220
1
#14
90387-06009-00
COLLAR
$8.66¢4 330
1
#15
5TA-21749-00-00
Collar
$10.57¢5 284
1
#16
1SS-21740-00-00
SIDE COVER ASSY 4
$37.82¢18 912
1
#17
90387-06009-00
COLLAR
$8.66¢4 330
1
#18
5TA-21749-00-00
Collar
$10.57¢5 284
1
#19
90105-06064-00
Bolt, Flange
$2.92¢1 461
1
#20
90159-06021-00
SCREW, WITH WASHER
$2.83¢1 414
1
#21
5NL-2172A-20-00
PANEL 1
$20.17¢10 085
1
#22
BF1-2173E-20-00
GRAPHIC 1
$44.07¢22 034
1
#23
BF1-2173F-20-00
GRAPHIC 2
$43.49¢21 746
1
