FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

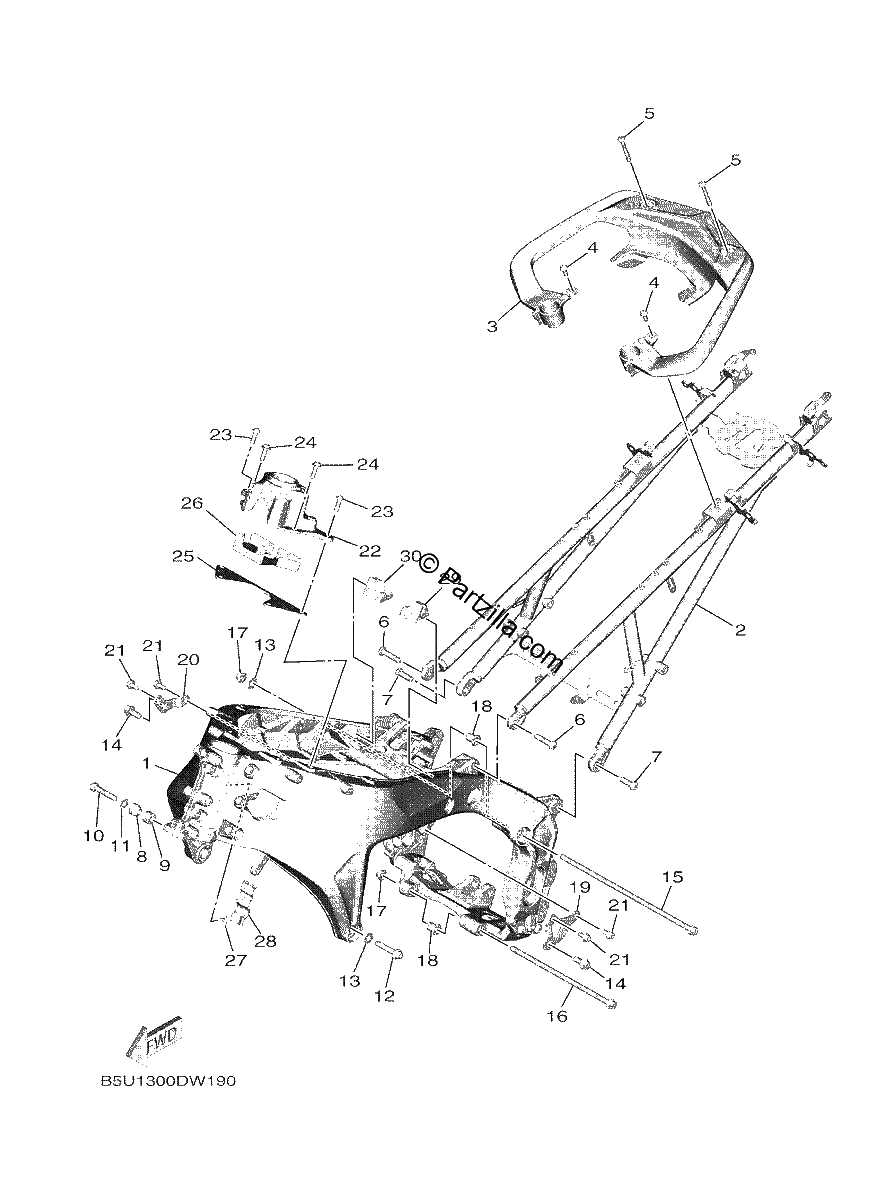

Diagrama de FRAME

Repuestos

#1
B5U-2111B-09-00
FRAME SUB COMP.
$3518.54¢1 759 269
1
#2
B5U-21190-09-00
REAR FRAME COMP.
$937.49¢468 744
1
#3
B5U-24773-09-00
HANDLE, SEAT
$172.18¢86 088
1
#4
90159-08005-00
SCREW, WITH WASHER
$3.06¢1 531
1
#5
90159-08006-00
SCREW, WITH WASHER
$4.00¢2 000
1
#6
90149-10076-00
SCREW
$4.40¢2 200
1
#7
90149-10074-00
SCREW
$7.69¢3 844
1
#8
2C0-21414-00-00
BOSS, ENGINE MOUNT
$27.43¢13 713
1
#9
5VY-21424-00-00
BOSS, ENGINE MOUNT
$32.09¢16 044
1
#10
90110-10058-00
BOLT, HEXAGON SOCKET HEAD
$7.99¢3 994
1
#11
90201-10083-00
WASHER, PLATE
$3.01¢1 506
1
#12
90110-10059-00
BOLT, HEXAGON SOCKET HEAD
$6.06¢3 031
1
#13
90201-10084-00
WASHER, PLATE
$2.50¢1 250
1
#14
95D37-10025-00
BOLT, FLANGE (replaces 90105-10475-00)
$2.04¢1 019
1
#15
90105-10487-00
BOLT, FLANGE
$35.76¢17 881
1
#16
90105-10437-00
BOLT, FLANGE
$13.70¢6 850
1
#17
90179-10247-00
NUT
$9.22¢4 613
1
#18
4C8-21495-00-00
BOLT, ENGINE ADJUSTING
$22.63¢11 313
1
#19
B5U-21315-00-00
STAY, ENGINE 1
$16.80¢8 400
1
#20
B5U-21316-00-00
STAY, ENGINE 2
$10.19¢5 094
1
#21
90109-085E2-00
bolt
$7.13¢3 563
1
#22
B7N-2137F-00-00
STAY 1
$93.61¢46 806
1
#23
90109-08246-00
BOLT
$4.55¢2 275
1
#24
90110-08126-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#25
B5U-2137G-00-00
STAY 2
$20.76¢10 381
1
#26
B7N-23892-00-00
SHIELD, HEAT
$15.26¢7 631
1
#27
5VX-21289-00-00
PLUG, BLIND
$4.66¢2 331
1
#28
34D-82176-00-00
DAMPER
$1.80¢900
1
#29
B7N-2117F-00-00
COVER
$6.63¢3 313
1
#30
B7N-2117M-00-00
COVER 2
$6.63¢3 313
1
