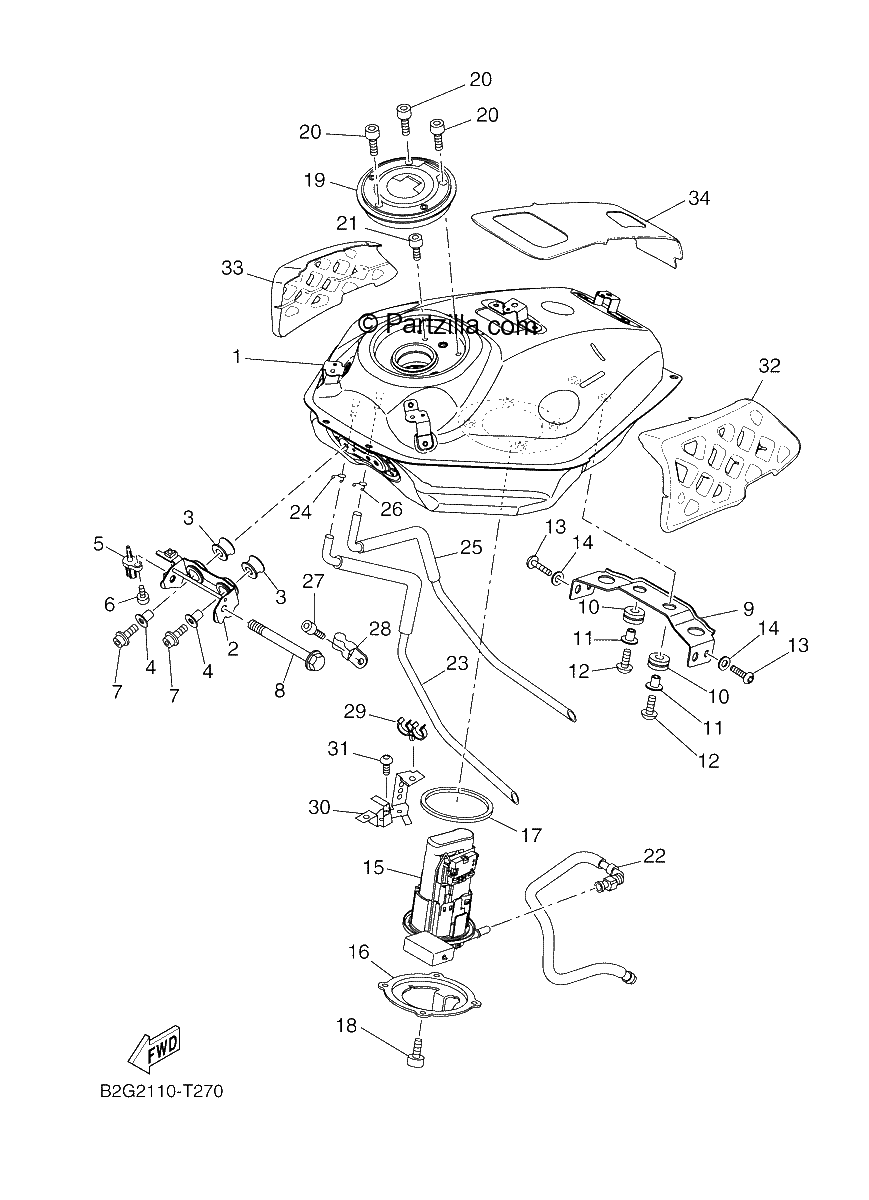

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FUEL TANK COMP.
$353.80¢176 899
#2
BRACKET, TANK FITTING
$33.37¢16 687
#3
GROMMET
$3.61¢1 805
#4
COLLAR
$6.22¢3 111
#5
SENSOR, AIR TEMPERATURE
$32.97¢16 485
#6
SCREW, PAN HEAD
$4.28¢2 139
#7
BOLT, HEXAGON SOCKET HEAD
$8.92¢4 462
#8
BOLT, FLANGE
$4.74¢2 369
#9
BRACKET, TANK FITTING
$17.04¢8 522
#10
GROMMET
$9.22¢4 611
#11
COLLAR
$9.50¢4 749
#12
BOLT, HEX. SOCKET BUTTON
$5.39¢2 697
#13
BOLT, BUTTON HEAD
$6.76¢3 381
#14
WASHER
$0.89¢443
#15
FUEL PUMP COMP.
$465.77¢232 886
#16
Bracket, Fuel Pump
$14.20¢7 101
#17
O-RING
$26.89¢13 443
#18
BOLT
$5.39¢2 697
#19
CAP ASSY
$334.27¢167 135
#20
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
#21
BOLT,HEX.SOCKET HEAD
$1.84¢920
#22
PIPE, FUEL 1
$84.29¢42 147
#23
PIPE, OVERFLOW | FOR U49
$31.39¢15 698
#24
Clip
$2.74¢1 368
#25
PIPE 2 | FOR U49
$28.91¢14 455
#26
Clip
$2.74¢1 368
#27
BOLT, BUTTON HEAD
$3.36¢1 679
#28
CLAMP 1 | FOR U49
$10.82¢5 411
#29
CLAMP
$4.00¢2 001
#30
BRACKET, CANISTOR | FOR U49
$15.84¢7 918
#31
BOLT, HEX. SOCKET BUTTON
$6.87¢3 433
#32
DAMPER, PLATE 1
$102.56¢51 279
#33
DAMPER, PLATE 2
$78.40¢39 198
#34
DAMPER, plate 3
$49.47¢24 737
