INTAKE 1 FOR U49

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

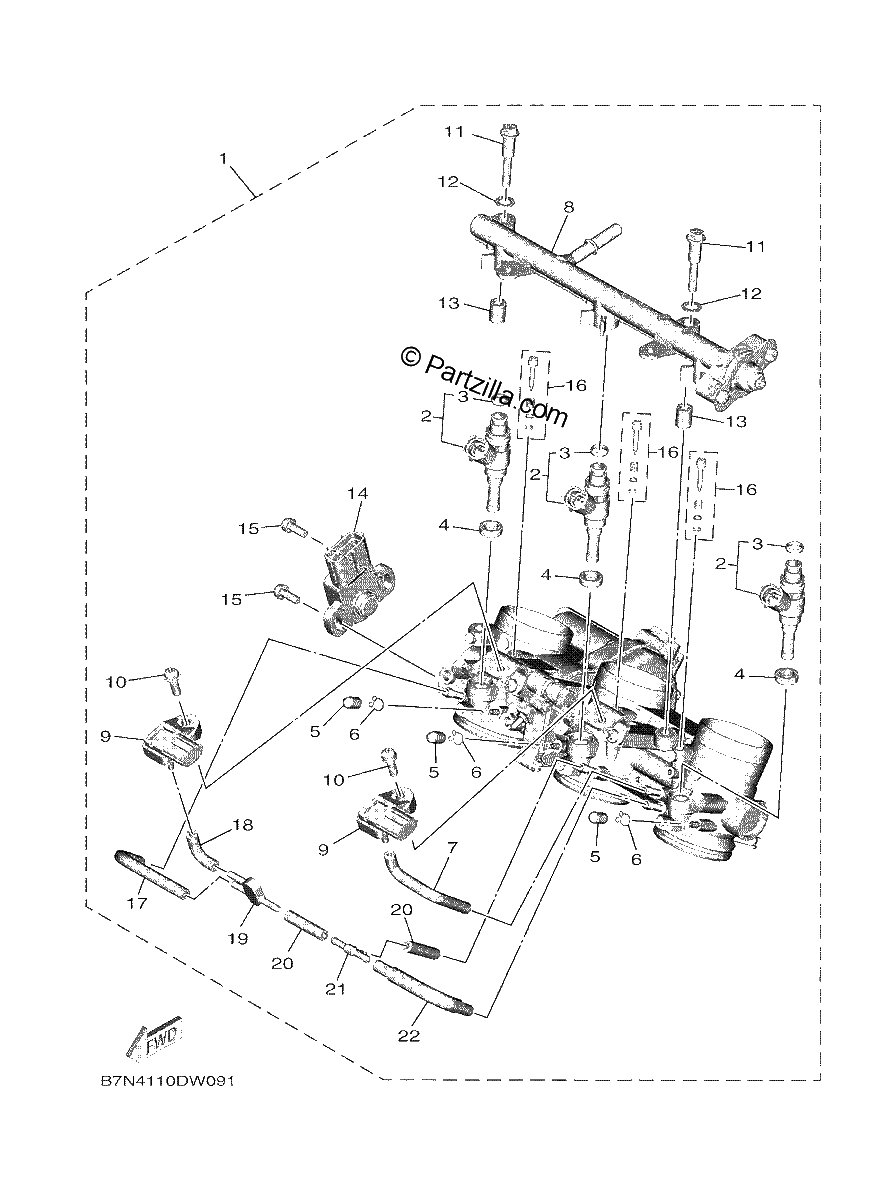

Diagrama de INTAKE 1 FOR U49

Repuestos

#1
B7N-13750-10-00
THROTTLE BODY ASSY
$1586.24¢793 119
1
#2
B7N-13761-00-00
. INJECTOR
$106.11¢53 056
1
#3
5PS-14147-00-00
O-RING
$11.09¢5 544
1
#4
8FP-13556-00-00
RUBBER, INJECTOR
$14.65¢7 325
1
#5
895-14169-00-00
CAP
$4.76¢2 381
1
#6
8A7-14139-00-00
CLIP, PIPE
$8.09¢4 044
1
#7
68V-13533-00-00
HOSE, VACUUM SENSING 4
$13.45¢6 725
1
#8
B7N-13930-00-00
. PIPE INLET ASSEMBLY
$258.65¢129 325
1
#9
1WS-82380-00-00
Sensor, Pressure
$203.69¢101 844
1
#10
2C0-14216-00-00
SCREW
$3.73¢1 863
1
#11
8HG-13573-00-00
BOLT 1
$12.05¢6 025
1
#12
8GL-13571-00-00
WASHER
$4.00¢2 000
1
#13
8HG-14534-00-00
Collar
$33.26¢16 631
1
#14
B3L-85885-00-00
THROTTLE SENSOR ASSY
$112.54¢56 269
1
#15
8CC-14216-10-00
SCREW
$8.50¢4 250
1
#16
2C0-14105-00-00
PILOT SCREW SET
$37.61¢18 806
1
#17
5FL-14348-00-00
. PIPE 1
$20.24¢10 119
1
#18
8FP-14349-00-00
PIPE
$12.06¢6 031
1
#19
3XV-14251-00-00
NIPPLE
$29.93¢14 963
1
#20
5FL-14348-10-00
PIPE 1
$4.92¢2 463
1
#21
68V-24376-00-00
PIPE, JOINT 1
$17.35¢8 675
1
#22
B7N-13542-00-00
. HOSE, VACUUM SENSING 1
$18.16¢9 081
1
