FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

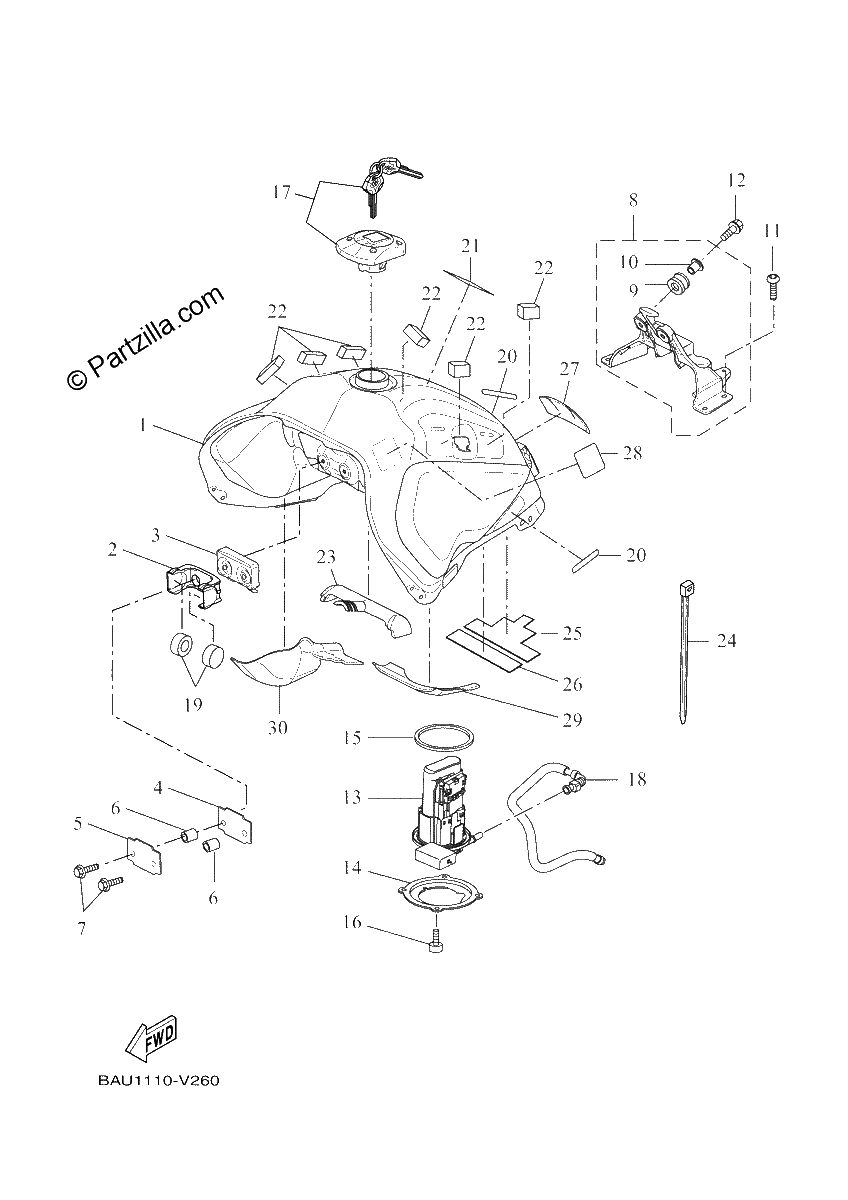

Diagrama de FUEL TANK

Repuestos

#1
BW3-24110-01-P2
FUEL TANK COMP.
$856.74¢428 369
1
#2
BW3-2412Y-00-00
BRACKET, TANK FITTING
$21.17¢10 586
1
#3
BW3-24181-00-00
DAMPER, LOCATING 1
$12.52¢6 262
1
#4
BW3-24182-00-00
DAMPER, LOCATING 2
$7.11¢3 553
1
#5
BW3-24186-00-00
WASHER, SPECIAL
$3.90¢1 949
1
#6
90387-06553-00
Collar
$7.81¢3 904
1
#7
95812-06025-00
BOLT, FLANGE
$0.71¢357
1
#8
BW3-24105-01-00
TANK BRACKET ASSY 2
$85.48¢42 740
1
#9
90480-18018-00
. .GROMMET
$3.62¢1 811
1
#10
90387-06136-00
COLLAR
$6.22¢3 111
1
#11
90111-06051-00
BOLT, HEX. SOCKET BUTTON
$4.74¢2 369
1
#12
95812-06025-00
BOLT, FLANGE
$0.71¢357
1
#13
BW3-13907-00-00
FUEL PUMP COMP.
$389.79¢194 896
1
#14
BW3-24491-00-00
BRACKET, FUEL PUMP
$16.45¢8 223
1
#15
1RC-24486-00-00
O-RING
$26.89¢13 443
1
#16
91312-05010-00
BOLT
$5.39¢2 697
1
#17
BW3-24602-00-00
CAP ASSY
$243.62¢121 808
1
#18
BW3-13971-01-00
PIPE, FUEL 1
$133.20¢66 602
1
#19
3TB-24181-00-00
DAMPER,LOCATING 1
$13.48¢6 739
1
#20
BW3-2411G-00-00
HOOK, SIDE COVER 1
$4.57¢2 283
1
#21
5UM-21717-E0-00
DAMPER
$5.40¢2 702
1
#22
90520-05025-00
DAMPER, PLATE
$1.22¢609
1
#23
BW3-24184-00-00
DAMPER, LOCATING 4
$33.26¢16 629
1
#24
90464-65001-00
CLAMP
$5.51¢2 754
1
#25
BW3-24595-00-00
PROTECTOR
$30.44¢15 220
1
#26
BW3-24595-10-00
PROTECTOR
$12.88¢6 440
1
#27
BW3-24141-00-00
PROTECTOR, FUEL TANK
$10.56¢5 278
1
#28
3FY-21575-01-00
SEAL 1
$10.14¢5 071
1
#29
BW3-2414H-00-00
DAMPER, PLATE 1
$42.41¢21 206
1
#30
BW3-2414J-00-00
DAMPER, PLATE 2
$17.53¢8 763
1
