FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

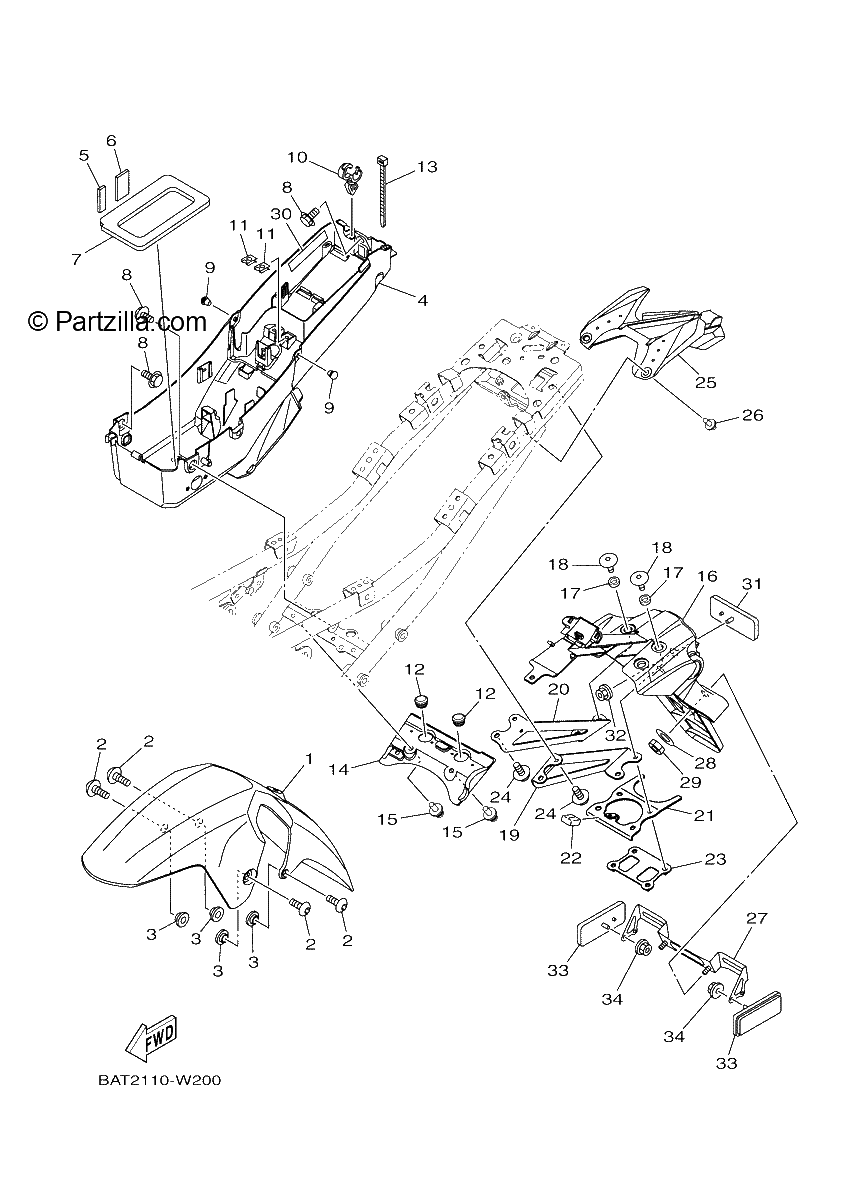

Diagrama de FENDER

Repuestos

#1
B4C-21511-00-00
FENDER, FRONT
$39.70¢19 849
1
#2
90111-06161-00
BOLT, HEX. SOCKET BUTTON
$2.92¢1 461
1
#3
90387-06355-00
COLLAR
$2.97¢1 483
1
#4
BAT-8212B-00-00
BOX, BATTERY 1
$51.68¢25 840
1
#5
BAT-21639-00-00
DAMPER 2
$3.21¢1 604
1
#6
BAT-21649-00-00
DAMPER
$4.47¢2 237
1
#7
1WS-21639-00-00
DAMPER 2
$6.11¢3 053
1
#8
90109-06202-00
BOLT
$2.98¢1 489
1
#9
90338-06018-00
PLUG
$6.22¢3 111
1
#10
90464-18002-00
CLAMP
$7.59¢3 795
1
#11
90183-04039-00
NUT, SPRING
$6.46¢3 231
1
#12
90480-14100-00
GROMMET
$7.07¢3 536
1
#13
90465-13275-00
CLAMP
$4.77¢2 386
1
#14
1WS-21642-00-00
GUARD, FLAP
$6.22¢3 111
1
#15
90269-06002-00
RIVET
$6.75¢3 375
1
#16
BAT-21629-00-00
GUARD, MUD
$56.41¢28 204
1
#17
90387-06372-00
COLLAR
$5.93¢2 967
1
#18
90111-06089-00
BOLT,HEX. SOCKET BUTTON
$6.87¢3 433
1
#19
1WS-2164F-00-00
STAY 1
$21.82¢10 908
1
#20
1WS-2164G-00-00
STAY 2
$20.00¢9 999
1
#21
BAT-21682-00-00
STAY, PLATE
$13.50¢6 751
1
#22
1WS-21746-00-00
DAMPER
$3.10¢1 553
1
#23
BAT-2161G-00-00
BRACKET 6
$9.77¢4 887
1
#24
90105-06205-00
BOLT, FLANGE
$1.54¢771
1
#25
1WS-2163A-00-00
COVER, REAR FENDER 1
$9.17¢4 583
1
#26
90269-07008-00
RIVET
$2.78¢1 392
1
#27
2RC-84751-00-00
BRACKET, LICENSE
$32.60¢16 301
1
#28
92902-06600-00
WASHER, plate
$3.13¢1 564
1
#29
95602-06100-00
NUT, SELF-LOCKING
$2.63¢1 317
1
#30
3JJ-28446-A1-00
LABEL, CAUTION
$4.54¢2 271
1
#31
3Y6-85130-02-00
Rear Reflector
$24.91¢12 455
1
#32
95602-05200-00
NUT, SELF-LOCKING
$7.51¢3 755
1
#33
3Y6-85130-02-00
Rear Reflector
$24.91¢12 455
1
#34
95702-05500-00
NUT,FLANGE (SILVER)
$0.84¢420
1
