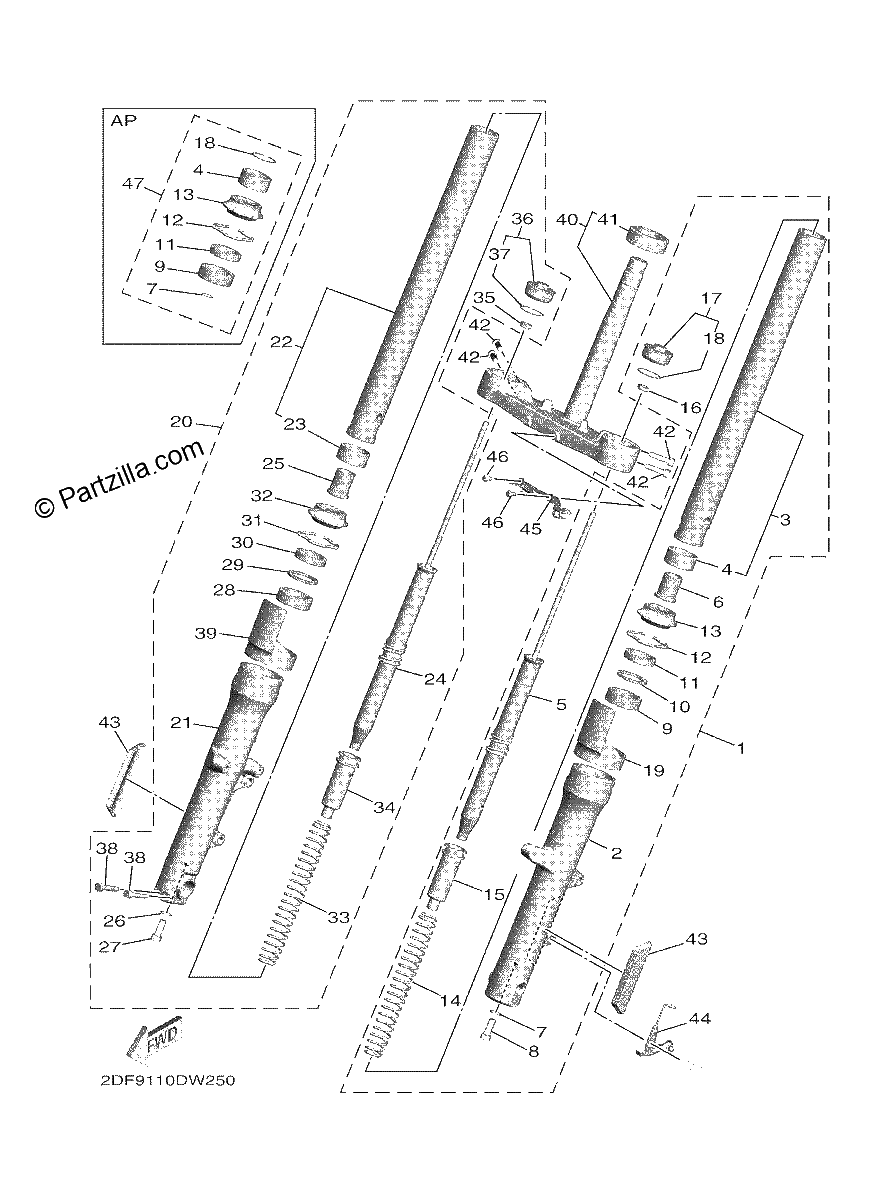

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$527.04¢263 523
#2
TUBE, OUTER (L.H)
$353.73¢176 864
#3
INNER TUBE COMP.1
$177.10¢88 550
#4
PISTON, FRONT FORK
$21.68¢10 839
#5
CYLINDER COMP., front fork
$204.76¢102 379
#6
SPINDLE, TAPER
$34.70¢17 348
#7
GASKET | (KYB)
$15.72¢7 860
#8
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#9
METAL, SLIDE 1
$34.19¢17 095
#10
WASHER, OIL SEAL
$7.38¢3 691
#11
OIL SEAL
$22.80¢11 402
#12
RING, SNAP
$6.69¢3 347
#13
SEAL, DUST
$32.17¢16 083
#14
SPRING, FRONT FORK
$36.35¢18 176
#15
SPACER
$27.13¢13 564
#16
NUT
$3.82¢1 909
#17
BOLT, cap
$59.40¢29 699
#18
O-RING
$15.12¢7 561
#19
COVER
$16.67¢8 337
#20
FRONT FORK ASSY (R.H)
$527.04¢263 523
#21
TUBE, OUTER 2
$356.90¢178 451
#22
INNER TUBE COMP.1
$177.10¢88 550
#23
PISTON, FRONT FORK
$21.68¢10 839
#24
CYLINDER COMP., front fork
$204.76¢102 379
#25
SPINDLE, TAPER
$34.70¢17 348
#26
GASKET | (KYB)
$15.72¢7 860
#27
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#28
METAL, SLIDE 1
$34.19¢17 095
#29
WASHER, OIL SEAL
$7.38¢3 691
#30
OIL SEAL
$22.80¢11 402
#31
RING, SNAP
$6.69¢3 347
#32
SEAL, DUST
$32.17¢16 083
#33
SPRING, FRONT FORK
$36.35¢18 176
#34
SPACER
$27.13¢13 564
#35
NUT
$3.82¢1 909
#36
BOLT, cap
$59.40¢29 699
#37
O-RING
$15.12¢7 561
#38
BOLT (3JP)
$5.75¢2 875
#39
COVER
$16.67¢8 337
#40
STEERING ASSY
$461.95¢230 977
#41
BEARING
$68.22¢34 109
#42
BOLT, HEXAGON SOCKET HEAD
$2.51¢1 254
#43
REFLECTOR ASSY
$33.28¢16 641
#44
HOLDER, BRAKE HOSE
$16.67¢8 337
#45
BRACKET 2
$22.36¢11 178
#46
BOLT, BUTTON HEAD
$2.24¢1 121
#47
FORK SEALS KIT
$91.40¢45 701
