SADDLEBAG

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

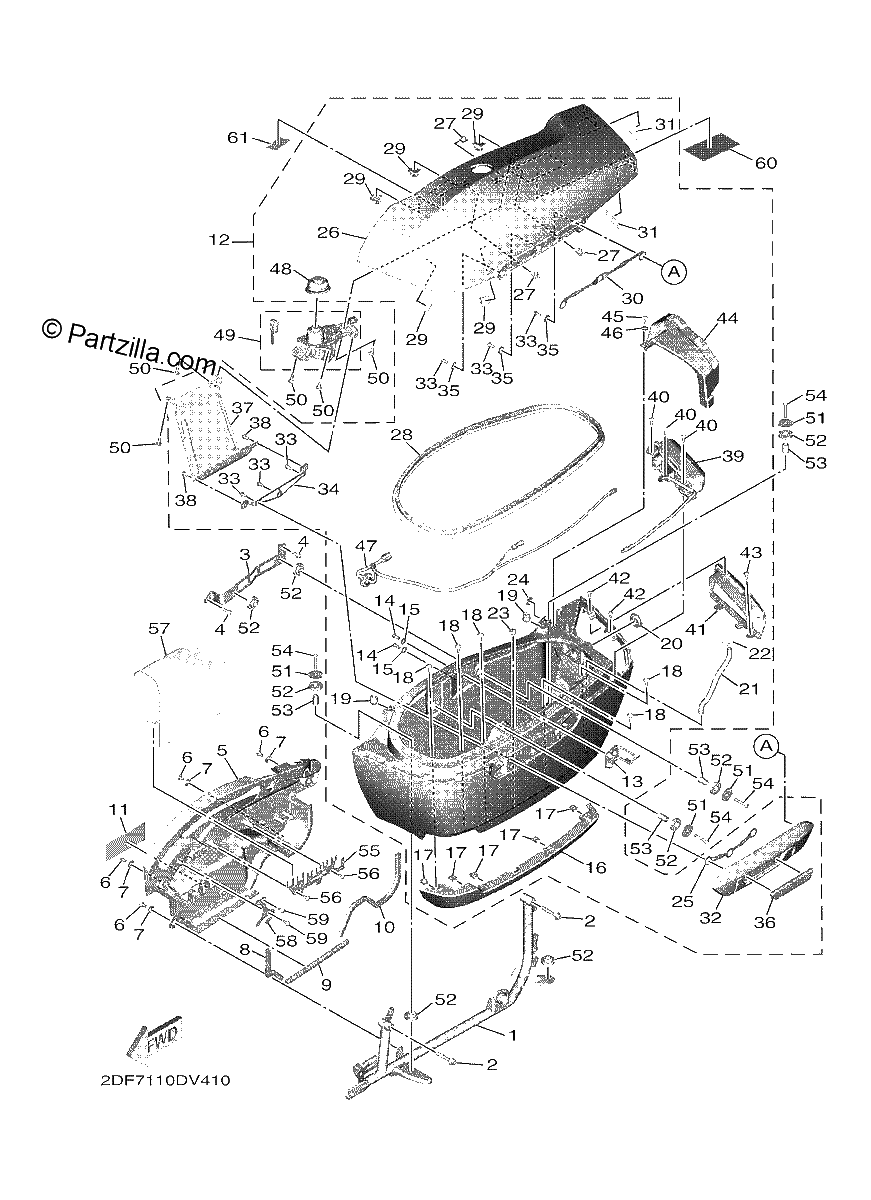

Diagrama de SADDLEBAG

Repuestos

#1
2DF-28473-00-00
FRAME, SADDLEBAG 1
$213.06¢106 530
1
#2
95D32-08045-00
BOLT, FLANGE DEEP RECESS
$0.89¢443
1
#3
2DF-28413-00-00
STAY, FRONT GUARD 1
$22.36¢11 178
1
#4
95027-06016-00
Bolt, Flange
$6.88¢3 439
1
#5
2DF-2846T-00-00
COVER, SIDE BOX 1
$78.80¢39 399
1
#6
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#7
90387-06071-00
COLLAR
$7.58¢3 789
1
#8
2DF-28425-00-00
DAMPER 3
$3.43¢1 713
1
#9
90520-08005-00
DAMPER, PLATE
$2.63¢1 317
1
#10
2DF-28455-00-00
DAMPER, 4
$10.95¢5 474
1
#11
4GY-2414H-00-00
DAMPER, PLATE 1
$2.40¢1 202
1
#12
2DF-28410-04-P2
SADDLEBAG ASSY., 1
$3050.94¢1 525 469
1
#13
2DF-28494-00-00
HOOK 3
$66.02¢33 011
1
#14
92017-06014-00
BOLT, BUTTON HEAD
$3.06¢1 529
1
#15
90201-06055-00
WASHER, PLATE
$3.22¢1 610
1
#16
2DF-2843J-00-00
COVER 3
$70.62¢35 311
1
#17
90183-05073-00
Nut, Spring
$11.73¢5 865
1
#18
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.44¢2 720
1
#19
2DF-28415-00-00
DAMPER 1
$4.05¢2 024
1
#20
2DF-2847F-00-00
SEAL 5
$2.69¢1 346
1
#21
90445-123G4-00
. HOSE (L170)
$4.37¢2 185
1
#22
90467-12M11-00
CLIP,SCISSOR
$2.50¢1 248
1
#23
90338-10132-00
PLUG
$2.89¢1 443
1
#24
2DF-2846F-00-00
SEAL 4
$2.74¢1 368
1
#25
2DF-284BE-00-00
STAY, 7
$17.27¢8 637
1
#26
2DF-28448-00-P3
.. SADDLEBAG 3 (VIVID PURPLISH BLUE COCKTAIL 5)
$324.20¢162 098
1
#27
90183-062A0-00
Nut, Spring
$3.82¢1 909
1
#28
2DF-28429-00-00
SEAL 2
$31.43¢15 715
1
#29
2DF-81128-00-00
Clamp
$3.21¢1 604
1
#30
2DF-284BG-00-00
STAY, 9
$22.70¢11 350
1
#31
2DF-284BP-00-00
SEAL, 16
$2.16¢1 081
1
#32
2DF-2843S-00-00
HINGE SUB-ASSY., 1
$492.29¢246 146
1
#33
90111-06102-00
. BOLT,HEX SOCKET BUTTON
$5.65¢2 823
1
#34
2DF-2846M-00-00
BRACKET, HINGE
$22.20¢11 098
1
#35
90201-06557-00
WASHER, PLATE
$3.02¢1 512
1
#36
2DF-85130-00-00
REAR REFLECTOR ASSY
$37.25¢18 624
1
#37
2DF-2846K-00-00
COVER, HINGE 1
$142.12¢71 059
1
#38
92017-06010-00
BOLT, BUTTON HEAD
$3.36¢1 679
1
#39
2DF-83330-00-00
REAR FLASHER LIGHT ASSY 1
$255.56¢127 782
1
#40
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#41
2DF-833A1-00-00
GARNISH, FLASHER 1
$89.15¢44 574
1
#42
98907-05012-00
SCREW, BIND | FOR CALIFORNIA
$6.76¢3 381
1
#43
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#44
2DF-2844B-00-00
LID 1
$37.44¢18 722
1
#45
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#46
90202-07015-00
WASHER, PLATE
$7.31¢3 657
1
#47
2DF-86176-01-00
Wire, Lead
$47.99¢23 995
1
#48
2DF-2845W-00-00
CAP,1
$28.07¢14 036
1
#49
2DF-W2849-11-00
LOCK ASSY (replaces 2DF-W2849-10-00)
$409.49¢204 746
1
#50
90111-06041-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#51
90201-065G8-00
WASHER, PLATE
$6.75¢3 375
1
#52
90480-20447-00
GROMMET
$6.75¢3 375
1
#53
90387-08111-00
Collar
$3.62¢1 811
1
#54
92017-06035-00
BOLT, BUTTON HEAD
$2.60¢1 299
1
#55
2DF-2849V-00-00
PLATE, 11
$15.59¢7 797
1
#56
97702-50014-00
SCREW, TAPPING
$6.76¢3 381
1
#57
2DF-82176-00-00
Damper
$11.09¢5 543
1
#58
2DF-2849W-00-00
PLATE, 12
$13.86¢6 929
1
#59
97702-50014-00
SCREW, TAPPING
$6.76¢3 381
1
#60
4XY-28446-02-00
LABEL, CAUTION
$8.87¢4 433
1
#61
BL3-21668-A0-00
LABEL, TIRE
$12.89¢6 446
1
