AUDIO EQUIPMENT 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

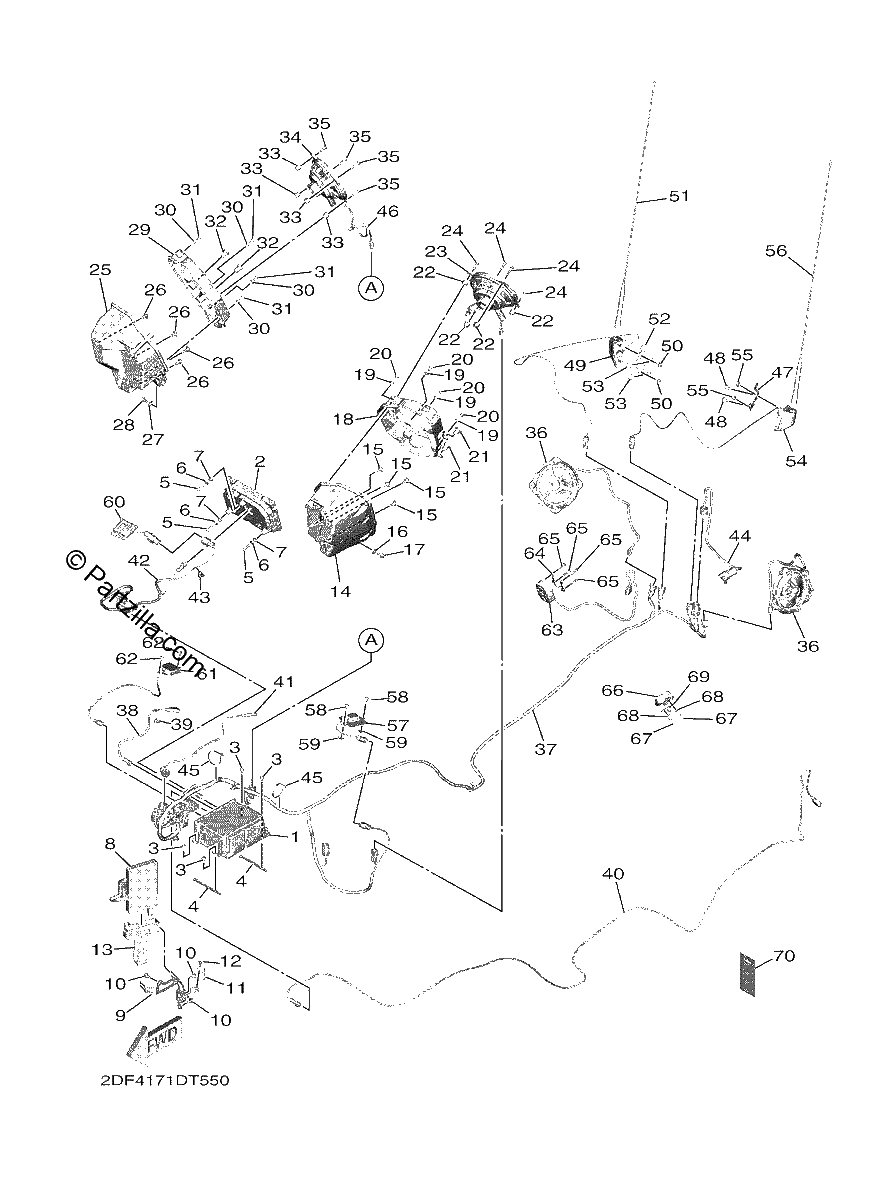

Diagrama de AUDIO EQUIPMENT 1

Repuestos

#1
2DF-88132-01-00
AMP. POWER
$5901.24¢2 950 619
1
#2
2DF-88101-00-00
CONT, LCD
No Disponible
1
#3
90110-05066-00
BOLT, HEXAGON SOCKET HEAD
$7.72¢3 863
1
#4
2DF-28337-00-00
HOLDER
$35.25¢17 625
1
#5
92012-06020-00
BOLT, BUTTON HEAD
$7.48¢3 738
1
#6
90201-06045-00
WASHER, PLATE
$7.35¢3 675
1
#7
90387-06184-00
COLLAR
$5.41¢2 706
1
#8
2DF-88182-00-00
BLACK BOX, CB
$2138.74¢1 069 369
1
#9
2DF-2138T-00-00
BRKT., INNER 1
$35.41¢17 706
1
#10
90105-06064-00
Bolt, Flange
$3.17¢1 588
1
#11
2DF-2256L-00-00
Bracket
$5.10¢2 550
1
#12
90110-06245-00
BOLT, HEXAGON SOCKET HEAD
$7.46¢3 731
1
#13
2DF-21646-00-00
BAND
$26.80¢13 400
1
#14
2DF-88162-00-00
BOX, SPEAKER 1
$208.31¢104 156
1
#15
90109-06320-00
bolt
$8.06¢4 031
1
#16
90387-06184-00
COLLAR
$5.41¢2 706
1
#17
95D32-06014-00
BOLT, FLANGE DEEP RECESS
$0.28¢138
1
#18
2DF-8818B-00-00
COVER 1
$61.44¢30 719
1
#19
90387-06255-00
COLLAR
$7.28¢3 638
1
#20
90111-05048-00
BOLT, HEX. SOCKET BUTTON
$1.25¢625
1
#21
90179-06524-00
Nut
$4.28¢2 138
1
#22
90179-06520-00
NUT
$7.49¢3 744
1
#23
2DF-88161-00-00
SPEAKER 1
$450.91¢225 456
1
#24
92012-06020-00
BOLT, BUTTON HEAD
$7.48¢3 738
1
#25
2DF-88172-00-00
BOX, SPEAKER 2
$208.31¢104 156
1
#26
90109-06320-00
bolt
$8.06¢4 031
1
#27
90387-06184-00
COLLAR
$5.41¢2 706
1
#28
95D32-06014-00
BOLT, FLANGE DEEP RECESS
$0.28¢138
1
#29
2DF-8818C-00-00
COVER 2
$11.70¢5 850
1
#30
90387-06255-00
COLLAR
$7.28¢3 638
1
#31
90111-05048-00
BOLT, HEX. SOCKET BUTTON
$1.25¢625
1
#32
90179-06524-00
Nut
$4.28¢2 138
1
#33
90179-06520-00
NUT
$7.49¢3 744
1
#34
2DF-88161-00-00
SPEAKER 1
$450.91¢225 456
1
#35
92012-06020-00
BOLT, BUTTON HEAD
$7.48¢3 738
1
#36
2DF-88171-00-00
SPEAKER, 2
$453.68¢226 838
1
#37
2DF-88136-20-00
CORD, AMP
$1161.24¢580 619
1
#38
2DF-821F1-00-00
LEAD, USB 1
$85.08¢42 538
1
#39
90464-30011-00
CLAMP
$1.90¢950
1
#40
2DF-821F2-00-00
LEAD, USB 2
$176.84¢88 419
1
#41
2DF-821G1-00-00
LEAD, AUX
$148.30¢74 150
1
#42
2DF-82174-10-00
CORD ASSY
$621.24¢310 619
1
#43
90464-54086-00
CLAMP
$3.02¢1 513
1
#44
2DF-88197-00-00
CORD, HEAD SET 2
$158.05¢79 025
1
#45
90464-15195-00
CLAMP
$3.30¢1 650
1
#46
90464-16061-00
BAND
$8.35¢4 175
1
#47
2DF-881B4-00-00
BRKT., ANTENNA 3
$19.19¢9 594
1
#48
90111-06109-00
BOLT,HEX. SOCKET BUTTON
$7.46¢3 731
1
#49
2DF-88144-00-00
BRACKET, ANTENNA
$209.26¢104 631
1
#50
90179-06054-00
Nut
$7.36¢3 681
1
#51
2DF-88141-00-00
POLE, antenna
$53.24¢26 619
1
#52
2DF-881A4-00-00
BRKT., ANTENNA 2
$19.19¢9 594
1
#53
90111-06109-00
BOLT,HEX. SOCKET BUTTON
$7.46¢3 731
1
#54
2DF-88144-10-00
BRACKET, ANTENNA
$202.46¢101 231
1
#55
90179-06054-00
Nut
$7.36¢3 681
1
#56
2DF-88143-00-00
POLE, antenna
$79.56¢39 781
1
#57
2DF-881A1-00-00
ANTENNA, GPS
$102.67¢51 338
1
#58
97702-50012-00
SCREW, TAPPING
$3.85¢1 925
1
#59
90183-05042-00
NUT, SPRING
$1.25¢625
1
#60
2DF-86269-00-00
ANTENNA COMP
$204.09¢102 044
1
#61
2DF-881A2-00-00
ANTENNA, BLUETOOTH
$236.88¢118 438
1
#62
97702-50012-00
SCREW, TAPPING
$3.85¢1 925
1
#63
2DF-88168-00-00
REMOTE CONTROL 1
$233.49¢116 744
1
#64
2DF-2846S-00-00
PLATE, 9
$15.29¢7 644
1
#65
98517-05020-00
SCREW, PAN HEAD (replaces 98507-05020-00)
$1.61¢806
1
#66
2DF-88169-00-00
REMOTE CONTROL 1
$181.85¢90 925
1
#67
92017-06020-00
BOLT, BUTTON HEAD
$3.04¢1 519
1
#68
90201-06045-00
WASHER, PLATE
$7.35¢3 675
1
#69
2DF-88178-00-00
BRACKET, REMOTE CONTROL
$9.38¢4 688
1
#70
2DF-881C1-00-00
NAVIGATION TICKET
$744.99¢372 494
1
