FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

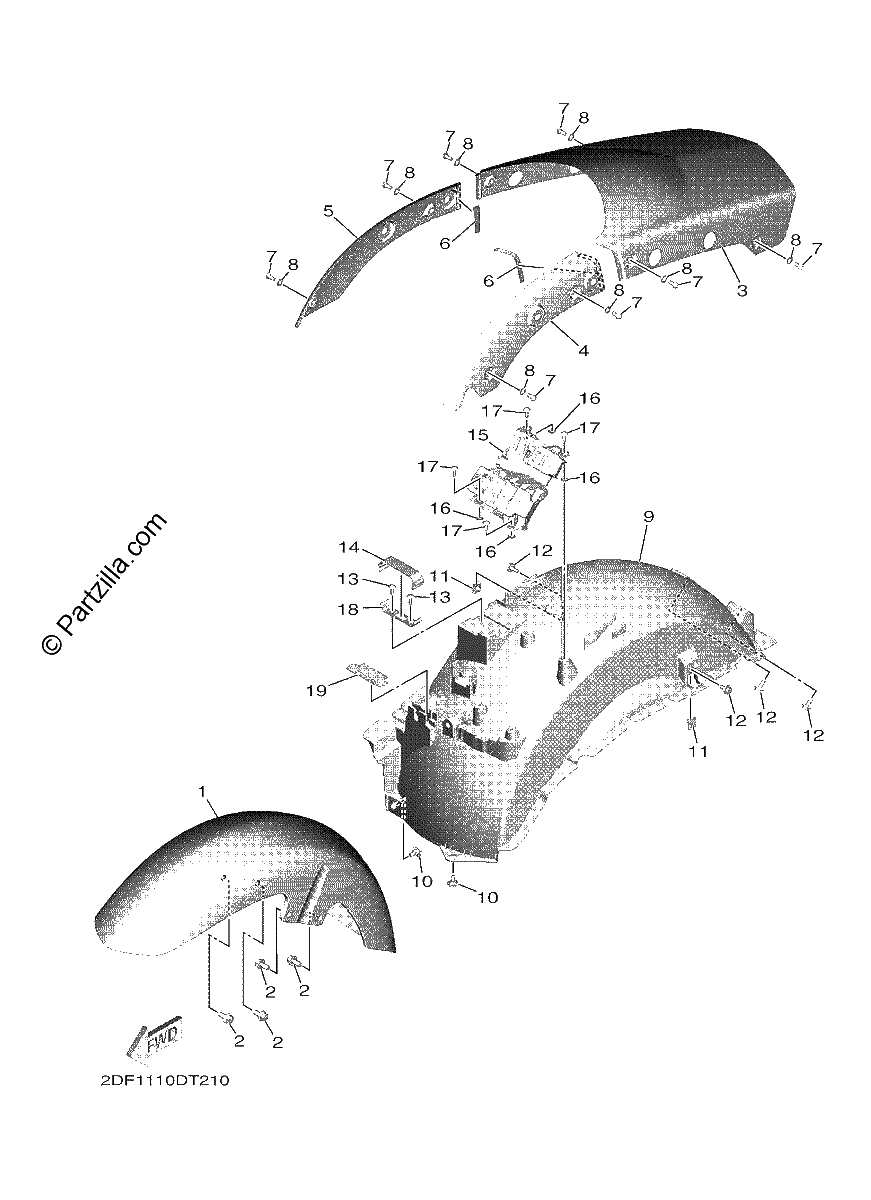

Diagrama de FENDER

Repuestos

#1
2DF-YK215-00-P3
FRONT FENDER COMP. (VIVID PURPLISH BLUE COCKTAIL 5)
$556.32¢278 162
1
#2
95D32-08016-00
BOLT, FLANGE DEEP RECESS
$1.05¢523
1
#3
2DF-YK216-00-P3
REAR FENDER COMP. (VIVID PURPLISH BLUE COCKTAIL 5)
$692.29¢346 144
1
#4
2DF-YK263-00-P3
CLEAR STAY, FENDER 1 (VIVID PURPLISH BLUE COCKTAIL 5)
$342.79¢171 396
1
#5
2DF-YK264-00-P3
CLEAR STAY, FENDER 2 (VIVID PURPLISH BLUE COCKTAIL 5)
$342.79¢171 396
1
#6
13S-28237-00-00
DAMPER 3
$7.31¢3 657
1
#7
92014-06012-00
BOLT,BUTTON HEAD
$2.71¢1 357
1
#8
92902-06200-00
WASHER
$0.89¢443
1
#9
2DF-21629-00-00
GUARD, MUD
$161.99¢80 995
1
#10
90109-06322-00
bolt
$5.95¢2 973
1
#11
90183-06053-00
Nut, Spring
$6.68¢3 341
1
#12
90119-06242-00
BOLT, WITH WASHER
$6.43¢3 214
1
#13
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#14
122-82131-00-00
BAND, BATTERY
$7.72¢3 858
1
#15
2DF-21688-00-00
BRACKET, REAR STAY
$29.23¢14 617
1
#16
2DF-21616-00-00
WASHER, SPECIAL 2
$1.08¢541
1
#17
90269-05055-00
RIVET,SPEC'L SHAPE
$7.67¢3 835
1
#18
2DF-2161A-00-00
BRACKET 3
$6.22¢3 111
1
#19
2DF-21669-00-00
SEAL
$2.74¢1 368
1
