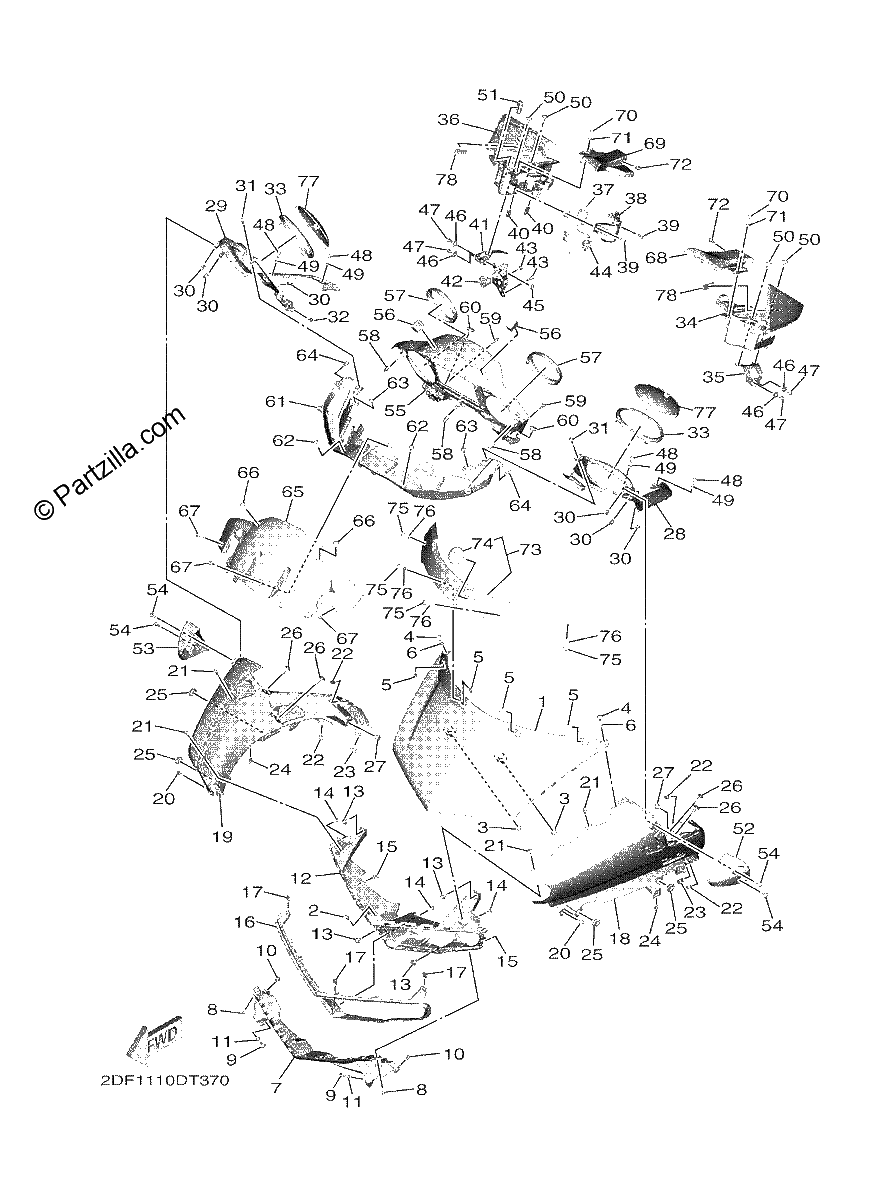

COWLING
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BODY, COWLING (VIVID PURPLISH BLUE COCKTAIL 5)
$174.03¢87 015
#2
Clamp
$0.67¢333
#3
PLUG
$2.89¢1 443
#4
BOLT, HEX. SOCKET BUTTON
$6.83¢3 415
#5
NUT, SPRING
$2.60¢1 299
#6
WASHER, PLATE
$7.05¢3 525
#7
BODY, COWLING 2 (VIVID PURPLISH BLUE COCKTAIL 5)
$149.56¢74 779
#8
SCREW, TRUSS HEAD TAPPING
$3.54¢1 771
#9
BOLT, HEX. SOCKET BUTTON
$6.83¢3 415
#10
NUT, SPRING
$1.15¢575
#11
WASHER, PLATE
$7.05¢3 525
#12
GRILL, AIR INTAKE 1
$117.30¢58 650
#13
BOLT, WITH WASHER
$6.75¢3 375
#14
SCREW, TAPPING
$3.54¢1 771
#15
NUT, SPRING
$1.15¢575
#16
MOLE 3
$178.62¢89 309
#17
NUT, SPRING
$1.15¢575
#18
COVER 1 (VIVID PURPLISH BLUE COCKTAIL 5)
$281.01¢140 507
#19
COVER 2 (VIVID PURPLISH BLUE COCKTAIL 5)
$357.11¢178 555
#20
SCREW, TAPPING
$3.33¢1 667
#21
RIVET
$8.10¢4 048
#22
NUT, SPRING
$2.60¢1 299
#23
NUT, SPRING
$7.30¢3 651
#24
NUT, SPRING
$1.15¢575
#25
Grommet
$5.27¢2 633
#26
BOLT, HEXAGON SOCKET HEAD
$4.13¢2 064
#27
PLUG
$2.89¢1 443
#28
PANEL, console 1
$76.84¢38 421
#29
PANEL, CONSOLE 2
$67.30¢33 649
#30
NUT, SPRING
$2.60¢1 299
#31
RIVET
$8.10¢4 048
#32
NUT, SPRING
$1.15¢575
#33
MOLE 5
$26.08¢13 041
#34
BOX SUB ASSY
$184.57¢92 288
#35
BRACKET 4
$8.11¢4 054
#36
BOX, SUB-ASSY., 3
$174.94¢87 469
#37
LOCK SET
$135.54¢67 770
#38
STOPPER PIN ASSY
$23.10¢11 552
#39
SCREW, BIND
$7.15¢3 577
#40
NUT, SPRING
$2.92¢1 461
#41
BRACKET 5
$6.46¢3 231
#42
BRACKET 10
$35.72¢17 859
#43
Bolt, Flange
$6.92¢3 461
#44
CLAMP
$1.81¢903
#45
Nut
$0.86¢431
#46
WASHER, PLATE
$6.00¢3 001
#47
Bolt, Flange
$6.92¢3 461
#48
BOLT,HEX. SOCKET BUTTON
$5.00¢2 501
#49
WASHER, plate
$0.85¢426
#50
BOLT, HEX. SOCKET BUTTON
$6.87¢3 433
#51
Grommet
$12.52¢6 262
#52
COVER, HANDLE UPPER 1
$51.77¢25 886
#53
COVER, HANDLE UPPER 2
$51.77¢25 886
#54
BOLT,HEX. SOCKET BUT
$5.44¢2 720
#55
COVER, METER
$183.49¢91 747
#56
DAMPER, PLATE
$0.61¢305
#57
MOLE 4
$25.04¢12 518
#58
Clamp
$0.67¢333
#59
RIVET
$8.10¢4 048
#60
Grommet
$5.27¢2 633
#61
PANEL, INNER 5
$66.98¢33 488
#62
BOLT,HEX. SOCKET BUT
$5.44¢2 720
#63
SCREW, TAPPING
$3.33¢1 667
#64
NUT, SPRING
$2.60¢1 299
#65
HOOD 1
$77.46¢38 732
#66
BOLT,HEX. SOCKET BUT
$5.44¢2 720
#67
RIVET
$8.10¢4 048
#68
PROTECTOR 1
$22.02¢11 011
#69
PROTECTOR 2
$21.37¢10 683
#70
BOLT,HEX. SOCKET BUTTON
$5.00¢2 501
#71
WASHER, plate
$0.85¢426
#72
RIVET
$8.10¢4 048
#73
BODY, COWLING
$420.15¢210 076
#74
EMBLEM (replaces 1RC-2413B-00-00)
$21.98¢10 988
#75
BOLT, HEX. SOCKET BUTTON
$6.92¢3 461
#76
WASHER, PLATE
$7.05¢3 525
#77
GRILLE, SPEAKER 1
$37.44¢18 722
#78
LABEL, CAUTION
$1.22¢609
