CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

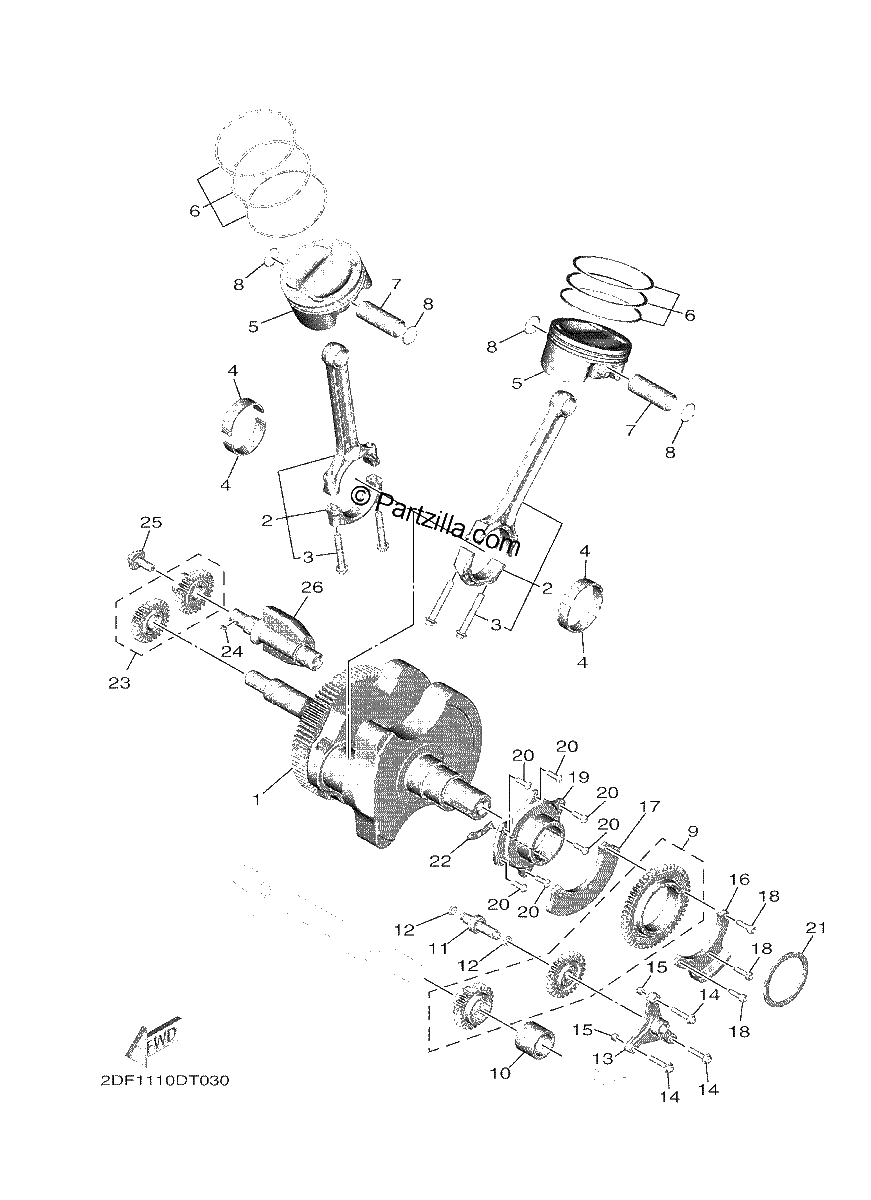

Diagrama de CRANKSHAFT PISTON

Repuestos

#1
2DF-11400-00-00
Crankshaft Assy
$1010.84¢505 419
1
#2
5C7-11650-01-00
CONNECTING ROD ASSY
$358.00¢178 998
1
#3
5YU-11654-00-00
BOLT, CONNECTING ROD
$7.82¢3 910
1
#4
5YU-11656-40-00
PLANE BEARING, CONNECTING ROD | UR YELLOW
$16.38¢8 188
1
#4
5YU-11656-30-00
PLANE BEARING, CONNECTING ROD | UR GREEN
$17.12¢8 562
1
#4
5YU-11656-20-00
PLANE BEARING, CONNECTING ROD | UR BROWN
$16.53¢8 263
1
#4
5YU-11656-10-00
PLANE BEARING, CONNECTING ROD | UR BLACK
$17.56¢8 780
1
#4
5YU-11656-00-00
PLANE BEARING, CONNECTING ROD | UR BLUE
$17.69¢8 844
1
#5
2DF-11631-00-00
PISTON (Std)
$145.06¢72 530
1
#6
2DF-11610-00-00
Piston Ring Set (STD)
$31.42¢15 709
1
#7
5VK-11633-00-00
PIN, PISTON
$40.01¢20 004
1
#8
93450-23172-00
Circlip
$1.13¢564
1
#9
2DF-W114B-00-00
DRIVE GEAR SET
$227.67¢113 833
1
#10
2DF-11478-00-00
Collar
$15.80¢7 900
1
#11
1D7-11455-00-00
SHAFT 1
$34.19¢17 095
1
#12
93210-06003-00
O-RING
$4.65¢2 323
1
#13
2DF-1135A-00-00
Bracket
$23.40¢11 701
1
#14
90109-06028-00
BOLT
$1.55¢776
1
#15
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#16
2DF-11454-00-00
WEIGHT 1
$61.79¢30 895
1
#17
2DF-1145A-00-00
WEIGHT 3
$56.37¢28 187
1
#18
90110-06211-00
BOLT, HEXAGON SOCKET HEAD
$2.24¢1 121
1
#19
2DF-11444-00-00
Housing
$160.05¢80 023
1
#20
90149-06166-00
Screw
$7.14¢3 571
1
#21
1D7-11483-00-00
WASHER, WEIGHT 1
$30.11¢15 053
1
#22
2DF-11479-00-00
Gasket
$31.53¢15 767
1
#23
1D7-W114A-01-00
BREAKER GEAR SET
$169.21¢84 605
1
#24
90282-04001-00
KEY, STRAIGHT
$5.49¢2 743
1
#25
90105-10445-00
BOLT, FLANGE
$10.60¢5 302
1
#26
2DF-11464-00-00
WEIGHT 2
$160.19¢80 098
1
