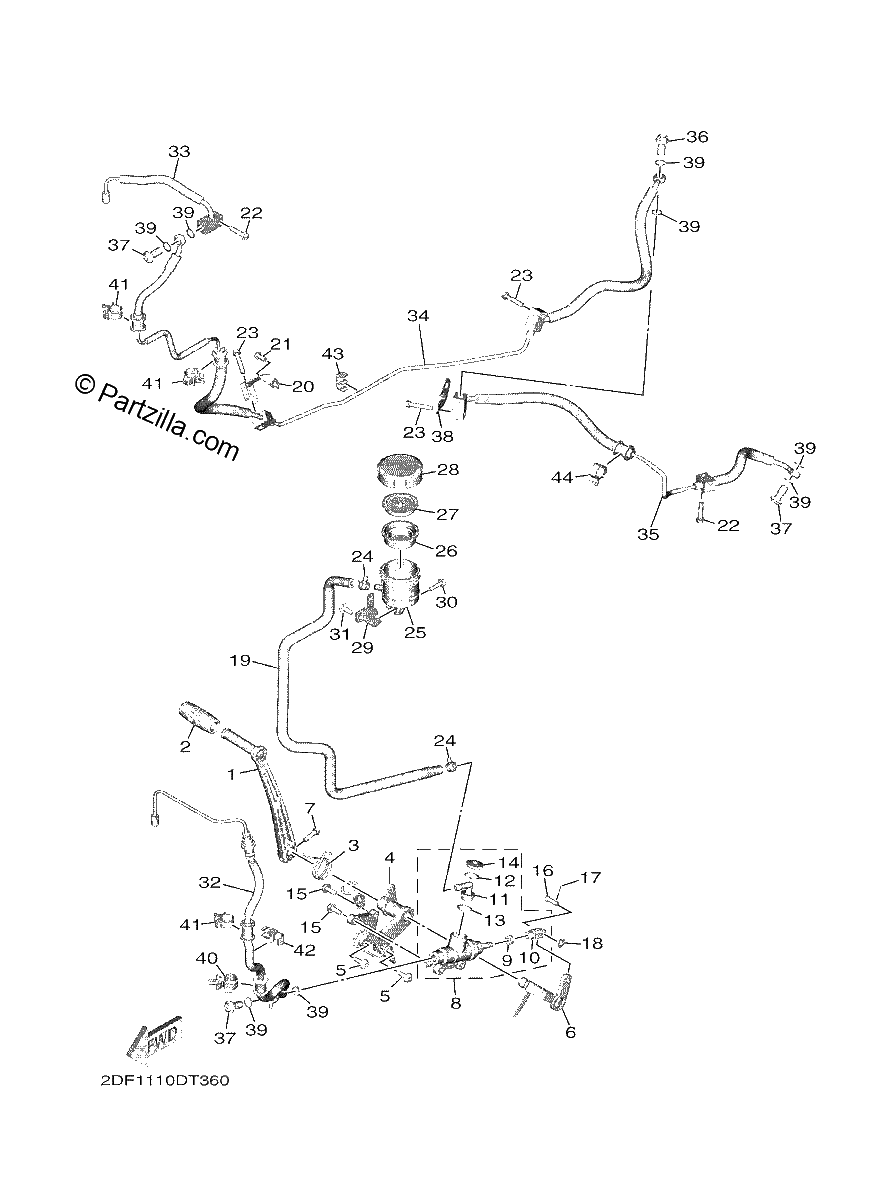

REAR MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PEDAL, BRAKE
$82.17¢41 084
#2
COVER, SHIFT PEDAL
$14.34¢7 170
#3
SPRING, RETURN
$7.95¢3 973
#4
BRACKET, MASTER CYLINDER
$68.08¢34 040
#5
BOLT, HEX. SOCKET BUTTON
$4.28¢2 139
#6
LEVER
$39.92¢19 958
#7
Bolt, Flange
$3.65¢1 823
#8
RR. MASTER CYLINDER ASSY.
$154.73¢77 366
#9
. Nut
$7.72¢3 858
#10
JOINT
$42.70¢21 350
#11
JOINT
$13.39¢6 693
#12
CIRCLIP
$6.51¢3 254
#13
. O-Ring
$6.32¢3 162
#14
COVER, DUST
$19.34¢9 672
#15
BOLT, HEX. SOCKET BUTTON
$4.28¢2 139
#16
Pin, Clevis
$4.91¢2 455
#17
PIN, COTTER
$6.74¢3 370
#18
WASHER
$0.89¢443
#19
Hose, Reservoir
$32.26¢16 129
#20
HOLDER, BRAKE HOSE
$14.74¢7 371
#21
BOLT, BUTTON HEAD
$2.24¢1 121
#22
BOLT, FLANGE
$1.61¢805
#23
BOLT, FLANGE
$3.99¢1 995
#24
Clip
$5.75¢2 875
#25
TANK, RESERVOIR
$17.39¢8 694
#26
DIAPHRAGM, RESERVOIR
$23.29¢11 644
#27
BUSH, DIAPHRAGM
$6.14¢3 070
#28
CAP, RESERVOIR
$27.73¢13 863
#29
PLATE, RESERVOIR
$6.92¢3 461
#30
Bolt, Flange
$0.55¢276
#31
BOLT, HEXAGON SOCKET HEAD
$6.87¢3 433
#32
HOSE, BRAKE 4
$68.86¢34 431
#33
HOSE, BRAKE 5
$53.44¢26 720
#34
HOSE, BRAKE 6
$149.56¢74 779
#35
HOSE, BRAKE 7
$104.05¢52 026
#36
BOLT, UNION
$9.07¢4 537
#37
BOLT, UNION
$4.06¢2 030
#38
Bracket
$8.63¢4 313
#39
GASKET
$7.72¢3 858
#40
Clamp
$5.93¢2 967
#41
CLAMP
$9.12¢4 560
#42
CLAMP
No Disponible
#43
CLAMP
$6.01¢3 007
#44
CLAMP
$9.12¢4 560
