FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

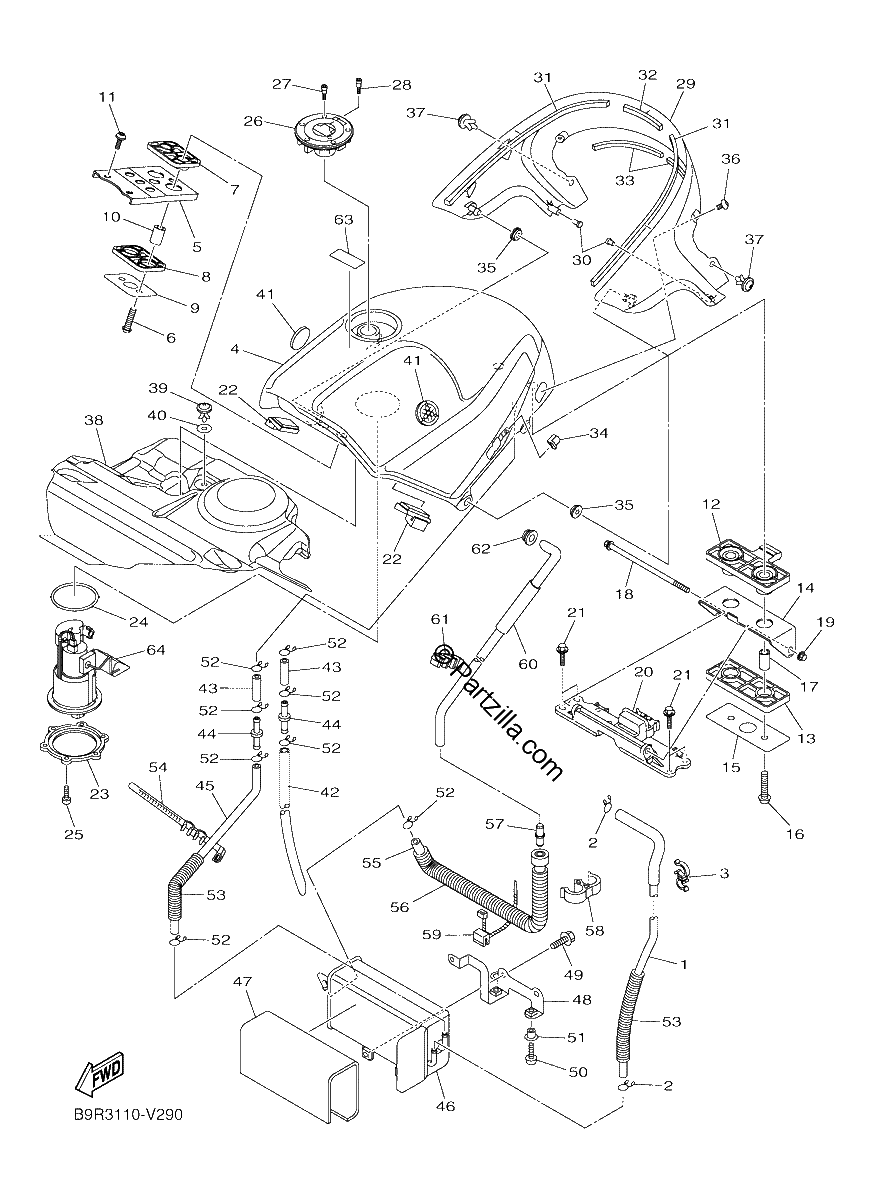

Diagrama de FUEL TANK

Repuestos

#1
1MC-1443J-10-00
PIPE
$85.87¢42 935
1
#2
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#3
90464-28153-00
CLAMP | FOR CALIFORNIA
$2.64¢1 322
1
#4
3P6-YK241-01-UJ
FUEL TANK COMP. (RADICAL WHITE)
$1070.64¢535 319
1
#5
5JW-24191-20-00
BRACKET, FUEL TANK 1
$26.22¢13 110
1
#6
92012-08035-00
BOLT, BUTTON HEAD
$4.13¢2 064
1
#7
5JW-24181-00-00
DAMPER, LOCATING 1
$11.29¢5 647
1
#8
5JW-24182-00-00
DAMPER, LOCATING 2
$9.13¢4 566
1
#9
5JW-24187-00-00
WASHER, SPECIAL
$6.12¢3 059
1
#10
90387-0813V-00
COLLAR
$4.81¢2 403
1
#11
90149-06302-00
SCREW
$4.70¢2 352
1
#12
3P6-24183-01-00
DAMPER, LOCATING 3
$12.18¢6 089
1
#13
5JW-24184-01-00
DAMPER, LOCATING 4
$17.76¢8 878
1
#14
5JW-24192-01-00
BRACKET, FUEL TANK 2
$27.54¢13 771
1
#15
5JW-24186-00-00
WASHER, SPECIAL
$7.88¢3 939
1
#16
92012-08035-00
BOLT, BUTTON HEAD
$4.13¢2 064
1
#17
90387-0813V-00
COLLAR
$4.81¢2 403
1
#18
95812-08160-00
Bolt, Flange
$14.62¢7 308
1
#19
95702-08500-00
NUT, FLANGE
$0.91¢454
1
#20
3P6-21348-00-00
BRACKT, TANK FITTING
$38.80¢19 401
1
#21
95822-06020-00
Bolt, Flange
$3.05¢1 524
1
#22
3P6-24184-01-00
DAMPER, LOCATING 4
$6.74¢3 370
1
#23
1MC-24491-00-00
BRACKET, FUEL PUMP
$28.61¢14 306
1
#24
19B-24486-01-00
O-RING
$40.92¢20 458
1
#25
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#26
39P-24602-10-00
CAP ASSY
$287.60¢143 802
1
#27
90110-05112-00
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
1
#28
91312-05010-00
BOLT
$5.39¢2 697
1
#29
3P6-24129-10-UJ
COVER, SIDE 1
$284.92¢142 462
1
#30
90338-06018-00
PLUG
$6.22¢3 111
1
#31
3P6-2414H-00-00
DAMPER, PLATE 1
$5.99¢2 996
1
#32
3P6-2414J-00-00
DAMPER, PLATE 2
$3.43¢1 713
1
#33
2D1-2414R-00-00
DAMPER, PLATE 6
$7.28¢3 640
1
#34
5PW-2411J-01-00
DAMPER, SIDE COVER
$7.04¢3 519
1
#35
90480-01558-00
Grommet
$4.31¢2 156
1
#36
90111-05023-00
BOLT, HEX. SOCKET BUTTON
$7.07¢3 536
1
#37
90269-06081-00
RIVET
$6.23¢3 117
1
#38
1MC-2416F-00-00
INSULATOR, FUEL TANK 1
$121.81¢60 904
1
#39
90269-06081-00
RIVET
$6.23¢3 117
1
#40
90202-06008-00
WASHER, PLATE
$4.28¢2 139
1
#41
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$21.98¢10 988
1
#42
90445-11036-00
HOSE
$18.75¢9 373
1
#43
90445-11066-00
HOSE | FOR CALIFORNIA
$3.52¢1 759
1
#44
4XY-14568-00-00
JOINT
$6.51¢3 254
1
#45
B88-24312-10-00
PIPE 2 | FOR CALIFORNIA
$50.84¢25 421
1
#46
3P6-24170-00-00
CANISTER ASSY | FOR CALIFORNIA
$333.12¢166 560
1
#47
3P6-2414E-00-00
SEAL 2 | FOR CALIFORNIA
$14.03¢7 015
1
#48
B88-2419F-00-00
BRACKET, CANISTOR | FOR CALIFORNIA
$17.80¢8 901
1
#49
95804-06012-00
Bolt, Flange
$2.50¢1 248
1
#50
92014-06012-00
BOLT,BUTTON HEAD
$2.71¢1 357
1
#51
90387-0603J-00
COLLAR | FOR CALIFORNIA
$8.97¢4 485
1
#52
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#53
3P6-2432A-00-00
PROTECTOR, PIPE 2 | FOR CALIFORNIA
$22.29¢11 143
1
#54
90464-10009-00
CLAMP | FOR CALIFORNIA
$4.76¢2 380
1
#55
B88-24314-00-00
PIPE 4
$12.07¢6 038
1
#56
B88-24327-00-00
PROTECTOR, PIPE
$14.10¢7 049
1
#57
4JP-21753-00-00
BOSS,CONNECTOR
$4.19¢2 093
1
#58
90464-16002-00
Clamp
$2.21¢1 104
1
#59
90464-45005-00
Clamp
$3.76¢1 880
1
#60
B88-24315-00-00
PIPE 5
$25.23¢12 615
1
#61
90464-10011-00
Clamp
$5.05¢2 524
1
#62
90480-15016-00
Grommet
$10.26¢5 129
1
#63
1TP-2118K-A2-00
. LABEL, CAUTION
$6.59¢3 295
1
#64
5JW-13907-23-00
FUEL PUMP COMP. (replaces 5JW-13907-22-00)
$626.30¢313 151
1
