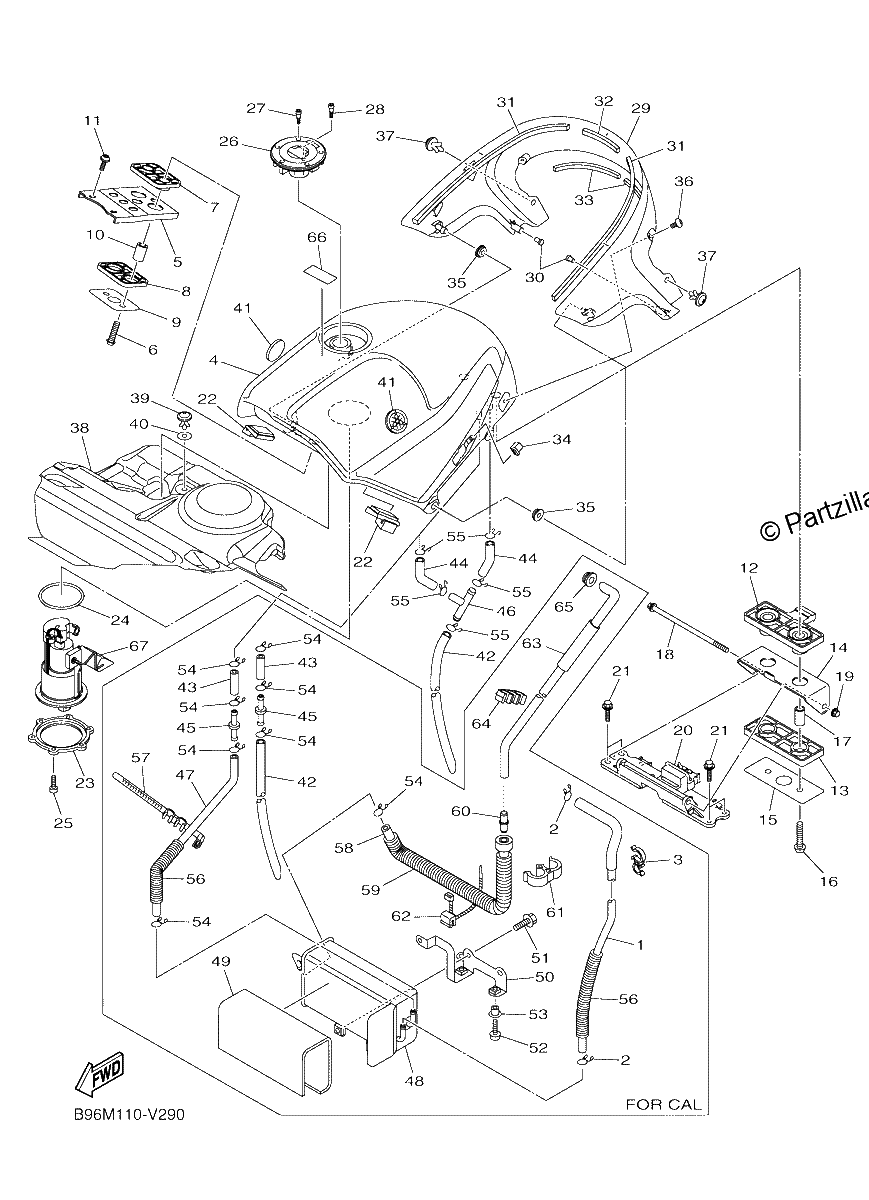

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#4
FUEL TANK COMP.
$1390.23¢695 113
#5
BRACKET, FUEL TANK 1
$28.50¢14 250
#6
BOLT, BUTTON HEAD
$4.49¢2 244
#7
DAMPER, LOCATING 1
$12.28¢6 138
#8
DAMPER, LOCATING 2
$9.93¢4 963
#9
WASHER, SPECIAL
$6.65¢3 325
#10
COLLAR
$5.22¢2 613
#11
SCREW
$5.11¢2 556
#12
DAMPER, LOCATING 3
$13.24¢6 619
#13
DAMPER, LOCATING 4
$19.30¢9 650
#14
BRACKET, FUEL TANK 2
$29.94¢14 969
#15
WASHER, SPECIAL
$8.56¢4 281
#16
BOLT, BUTTON HEAD
$4.49¢2 244
#17
COLLAR
$5.22¢2 613
#18
Bolt, Flange
$15.89¢7 944
#19
NUT, FLANGE
$0.99¢494
#20
BRACKT, TANK FITTING
$42.18¢21 088
#21
Bolt, Flange
$3.31¢1 656
#22
DAMPER, LOCATING 4
$7.33¢3 663
#23
BRACKET, FUEL PUMP
$31.10¢15 550
#24
O-RING
$44.47¢22 237
#25
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
#26
CAP ASSY
$312.61¢156 306
#27
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
#28
BOLT
$5.86¢2 931
#29
COVER, SIDE 1 | Use for Color Black Metallic X ( SMX / 0903 )
$470.95¢235 475
#30
PLUG
$6.76¢3 381
#31
DAMPER, PLATE 1
$6.51¢3 256
#32
DAMPER, PLATE 2
$3.73¢1 863
#33
DAMPER, PLATE 6
$7.91¢3 956
#34
DAMPER, SIDE COVER
$7.65¢3 825
#35
Grommet
$4.69¢2 344
#36
BOLT, HEX. SOCKET BUTTON
$7.69¢3 844
#37
RIVET
$6.78¢3 388
#38
INSULATOR, FUEL TANK 1
$132.40¢66 200
#39
RIVET
$6.78¢3 388
#40
WASHER, PLATE
$4.65¢2 325
#41
EMBLEM (replaces 1RC-2413B-00-00)
$23.89¢11 944
#42
HOSE
$20.38¢10 188
#44
HOSE (L45)
$4.55¢2 275
#46
WAY 3
$10.19¢5 094
#55
CLIP | FOR CALIFORNIA
$7.60¢3 800
#66
. LABEL, CAUTION
$7.16¢3 581
#67
FUEL PUMP COMP. (replaces 5JW-13907-22-00)
$680.76¢340 381
