FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

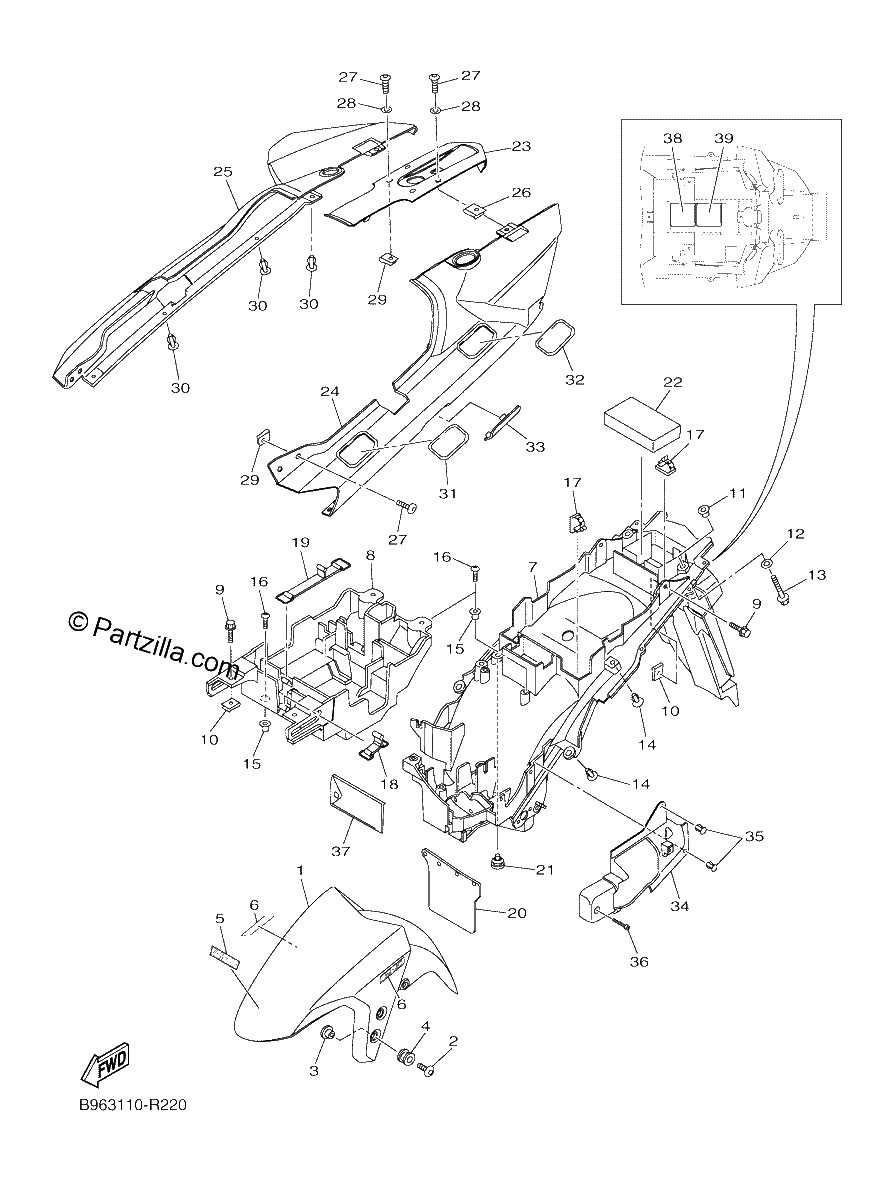

Diagrama de FENDER

Repuestos

#1
1MD-21511-00-P4
FENDER, FRONT
$221.36¢110 681
1
#2
90111-06043-00
BOLT, HEX. SOCKET BUTTON
$3.96¢1 981
1
#3
90387-065J6-00
Collar
$7.60¢3 800
1
#4
90480-12072-00
GROMMET
$7.94¢3 969
1
#5
3WF-2153E-71-00
EMBLEM, YAMAHA
$5.34¢2 669
1
#6
2BS-21578-01-00
EMBLEM (replaces 2BS-21578-00-00)
$5.29¢2 644
1
#7
B88-21611-00-00
FENDER, REAR
$182.39¢91 194
1
#8
1MD-2160E-00-00
BOX
$157.44¢78 719
1
#9
90119-06159-00
BOLT, WITH WASHER
$7.48¢3 738
1
#10
90183-060A7-00
NUT, SPRING
$7.72¢3 863
1
#11
90387-06231-00
COLLAR
$5.40¢2 700
1
#12
90201-07081-00
WASHER, PLATE
$8.45¢4 225
1
#13
95802-06040-00
Bolt, Flange
$5.41¢2 706
1
#14
90269-06081-00
RIVET
$6.78¢3 388
1
#15
90338-08226-00
PLUG
$1.94¢969
1
#16
97702-60020-00
SCREW, TAPPING
$0.41¢206
1
#17
90464-13185-00
CLAMP
$4.59¢2 294
1
#18
B88-2811G-00-00
BAND
$9.00¢4 500
1
#19
4J2-82131-01-00
BAND, BATTERY
$28.76¢14 381
1
#20
5JW-21621-10-00
FLAP
$24.11¢12 056
1
#21
90480-10M36-00
GROMMET
No Disponible
1
#22
B95-8252U-00-00
COVER
$30.19¢15 094
1
#23
B88-21651-00-P0
COVER, REAR FENDER
$223.61¢111 806
1
#24
B88-2471K-00-P0
COVER, TAIL 1
$179.05¢89 525
1
#25
B88-2472K-00-P0
COVER, TAIL 2
$260.88¢130 438
1
#26
90183-051A0-00
NUT, SPRING
$3.17¢1 588
1
#27
90111-05044-00
BOLT, HEX. SOCKET BUTTON
$7.72¢3 863
1
#28
90202-05180-00
WASHER, PLATE
$7.66¢3 831
1
#29
90183-050A0-00
NUT, SPRING
$5.30¢2 650
1
#30
90269-06081-00
RIVET
$6.78¢3 388
1
#31
3P6-2163E-01-P8
COVER, REAR FENDER
$39.26¢19 631
1
#32
3P6-2163E-11-P8
COVER, REAR FENDER
$39.26¢19 631
1
#33
3P6-2163F-01-P8
COVER, REAR FENDER
$39.01¢19 506
1
#34
1MC-2163A-00-00
COVER, REAR FENDER 1
$15.81¢7 906
1
#35
90269-06081-00
RIVET
$6.78¢3 388
1
#36
97702-50125-00
SCREW, TAPPING
$2.42¢1 213
1
#37
B95-28100-01-00
TOOL KIT
$10.34¢5 169
1
