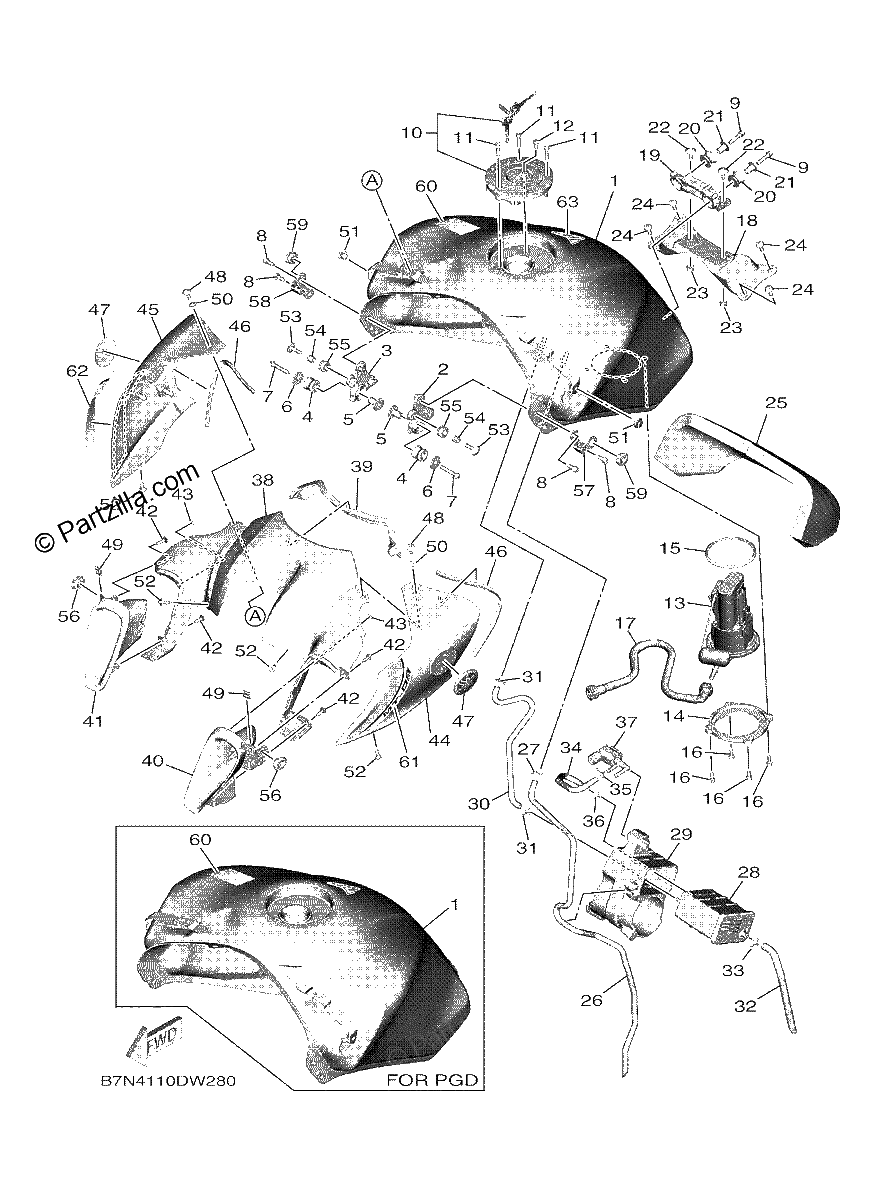

Diagrama de FUEL TANK 2

Repuestos

#1
B7N-Y2410-00-01
FUEL TANK COMP. (PASTEL DARK GRAY)
$824.54¢412 269
1
#2
B7N-24191-00-00
BRACKET, FUEL TANK 1
$25.70¢12 851
1
#3
B7N-24192-00-00
BRACKET, FUEL TANK 2
$28.55¢14 277
1
#4
90480-18008-00
GROMMET
$3.48¢1 742
1
#5
90387-06266-00
COLLAR
$4.30¢2 151
1
#6
90201-06072-00
WASHER, PLATE
$7.01¢3 507
1
#7
92012-06035-00
BOLT, BUTTON HEAD
$1.89¢943
1
#8
95E37-06014-00
BOLT, FLANGE DEEP RECESS
$0.38¢190
1
#9
95E32-06025-00
BOLT, FLANGE DEEP RECESS
$0.54¢270
1
#10
39P-24602-00-00
CAP ASSY
$248.96¢124 482
1
#11
90110-05112-00
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
1
#12
91312-05010-00
BOLT
$5.39¢2 697
1
#13
1RC-13907-01-00
FUEL PUMP COMP.
$426.33¢213 164
1
#14
1RC-24491-00-00
BRACKET, FUEL PUMP
$27.00¢13 501
1
#15
1RC-24486-00-00
O-RING
$26.89¢13 443
1
#16
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#17
B7N-13971-00-00
PIPE, FUEL 1
$59.93¢29 963
1
#18
B7N-2413Y-00-00
BRACKET, TANK FITTING
$47.60¢23 799
1
#19
B7N-2419F-00-00
BRACKET, CANISTOR
$20.02¢10 011
1
#20
3D7-24339-00-00
GROMMET
$3.61¢1 805
1
#21
90387-06136-00
COLLAR
$6.22¢3 111
1
#22
90111-06136-00
BOLT, HEX. SOCKET BUTTON
$5.16¢2 582
1
#23
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#24
90111-06029-00
BOLT, HEX. SOCKET BUTTON
$5.16¢2 582
1
#25
B7N-2414H-00-00
DAMPER, PLATE 1
$8.97¢4 485
1
#26
B7N-24315-00-00
PIPE 5
$22.20¢11 098
1
#27
90467-090A2-00
Clip
$2.74¢1 368
1
#28
B7N-24170-00-00
CANISTER ASSY
$75.06¢37 530
1
#29
B7N-24183-00-00
DAMPER, LOCATING 3
$59.87¢29 935
1
#30
B7N-24313-10-00
PIPE 3
$29.84¢14 921
1
#31
90467-090A2-00
Clip
$2.74¢1 368
1
#32
B7N-24316-00-00
PIPE 6
$9.23¢4 617
1
#33
90467-10041-00
Clip
$6.99¢3 496
1
#34
B7N-24317-10-00
PIPE 7
$19.61¢9 804
1
#35
90467-090A2-00
Clip
$2.74¢1 368
1
#36
90467-09103-00
Clip
$2.74¢1 368
1
#37
B7N-86120-00-00
SOLENOID VALVE ASSY
$44.72¢22 362
1
#38
B7N-241B1-00-00
COVER, TANK
$108.47¢54 234
1
#39
B7N-2418B-00-00
MOLE, FUEL TANK 1
$46.40¢23 201
1
#40
B7N-2837N-00-00
GRILL, AIR INTAKE 1
$10.45¢5 227
1
#41
B7N-2837R-00-00
GRILL, AIR INTAKE 2
$7.51¢3 755
1
#42
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#43
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#44
B7N-2137W-00-3E
SCOOP, AIR 1 (PASTEL DARK GRAY)
$75.43¢37 714
1
#45
B7N-2137X-00-3E
SCOOP, AIR 2 (PASTEL DARK GRAY)
$75.43¢37 714
1
#46
90520-07002-00
DAMPER, PLATE
$1.23¢615
1
#47
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$21.98¢10 988
1
#48
90111-05007-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#49
90183-05042-00
NUT, SPRING
$1.15¢575
1
#50
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#51
90269-09006-00
RIVET
$1.64¢822
1
#52
90269-06001-00
RIVET
$5.93¢2 967
1
#53
90111-06137-00
BOLT,HEX. SOCKET BUTTON
$5.23¢2 616
1
#54
90387-06057-00
COLLAR
$6.75¢3 375
1
#55
90480-14003-00
GROMMET
$6.83¢3 415
1
#56
90480-01558-00
Grommet
$4.31¢2 156
1
#57
B7N-2411F-00-00
PLATE, FITTING
$5.68¢2 841
1
#58
B7N-2411L-00-00
HOOK TANK FITTING
$6.15¢3 076
1
#59
90480-13567-00
GROMMET
$4.25¢2 128
1
#60
29P-2816R-01-00
LABEL, WARNING GENERAL INFO.
$3.40¢1 702
1
#61
B7N-2173E-10-00
GRAPHIC 1 (PASTEL DARK GRAY)
$27.00¢13 501
1
#62
B7N-2173F-10-00
GRAPHIC 2 (PASTEL DARK GRAY)
$27.00¢13 501
1
