FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

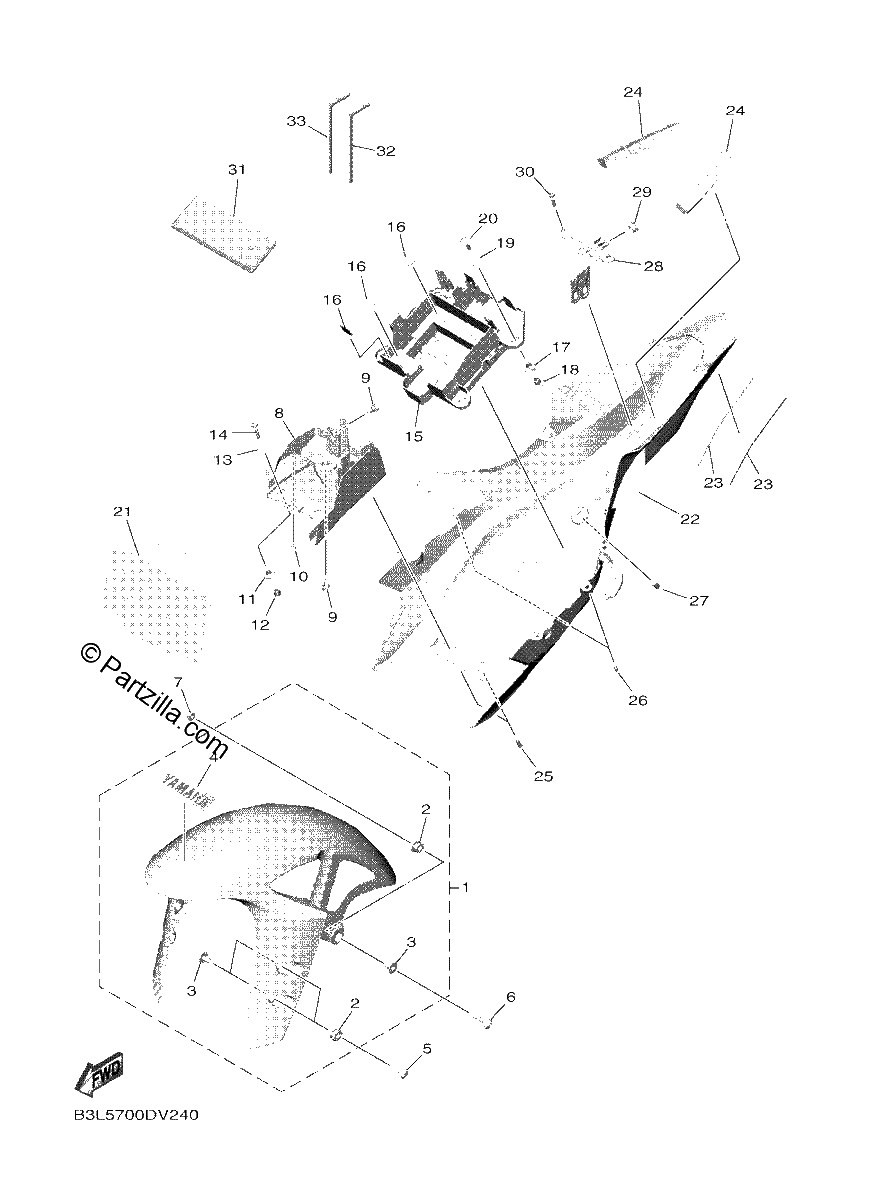

Diagrama de FENDER

Repuestos

#1
14B-Y2151-30-P9
FRONT FENDER ASSY
$176.23¢88 113
1
#2
90480-12072-00
GROMMET
$7.30¢3 651
1
#3
90387-065J6-00
Collar
$6.99¢3 496
1
#4
99244-00080-00
EMBLEM, YAMAHA
$14.98¢7 492
1
#5
90111-06043-00
BOLT, HEX. SOCKET BUTTON
$3.65¢1 823
1
#6
90111-06030-00
BOLT, HEX. SOCKET BUTTON
$3.66¢1 829
1
#7
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#8
B3L-8212B-00-00
BOX, BATTERY 1
$28.95¢14 473
1
#9
90105-06181-00
Bolt, Flange
$1.64¢822
1
#10
90338-07043-00
PLUG
$6.03¢3 013
1
#11
90480-13018-00
GROMMET
$6.83¢3 415
1
#12
90387-073M2-00
COLLAR
$8.00¢4 002
1
#13
90201-06088-00
WASHER, PLATE
$6.87¢3 433
1
#14
90110-06172-00
BOLT, HEXAGON SOCKET HEAD
$8.92¢4 462
1
#15
2CR-8212C-00-00
BOX, BATTERY 2
$25.16¢12 581
1
#16
13S-21649-00-00
DAMPER
$7.23¢3 617
1
#17
90480-13018-00
GROMMET
$6.83¢3 415
1
#18
90387-073M2-00
COLLAR
$8.00¢4 002
1
#19
90201-06088-00
WASHER, PLATE
$6.87¢3 433
1
#20
90110-06172-00
BOLT, HEXAGON SOCKET HEAD
$8.92¢4 462
1
#21
B3L-21652-00-00
Protector
$13.59¢6 797
1
#22
2CR-21611-00-00
FENDER, REAR
$41.12¢20 562
1
#23
3C5-2414H-00-00
DAMPER, PLATE 1
$5.21¢2 605
1
#24
90520-20003-00
DAMPER, PLATE
$6.87¢3 433
1
#25
90269-06008-00
RIVET
$8.10¢4 048
1
#26
90269-05005-00
RIVET
$3.29¢1 644
1
#27
90269-07076-00
RIVET,SPEC'L SHAPE
$6.55¢3 278
1
#28
2CR-2117E-00-00
BRACKET, TAILLIGHT
$23.72¢11 862
1
#29
90480-10003-00
GROMMET
$6.88¢3 439
1
#30
90110-06163-00
BOLT, HEXAGON SOCKET
$8.39¢4 198
1
#31
2CR-28100-00-00
TOOL KIT
$59.26¢29 630
1
#32
23P-28164-00-00
WRENCH, HEXAGON 8
$2.99¢1 495
1
#33
14B-28164-00-00
WRENCH, HEXAGON 8
$4.13¢2 064
1
