COWLING 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

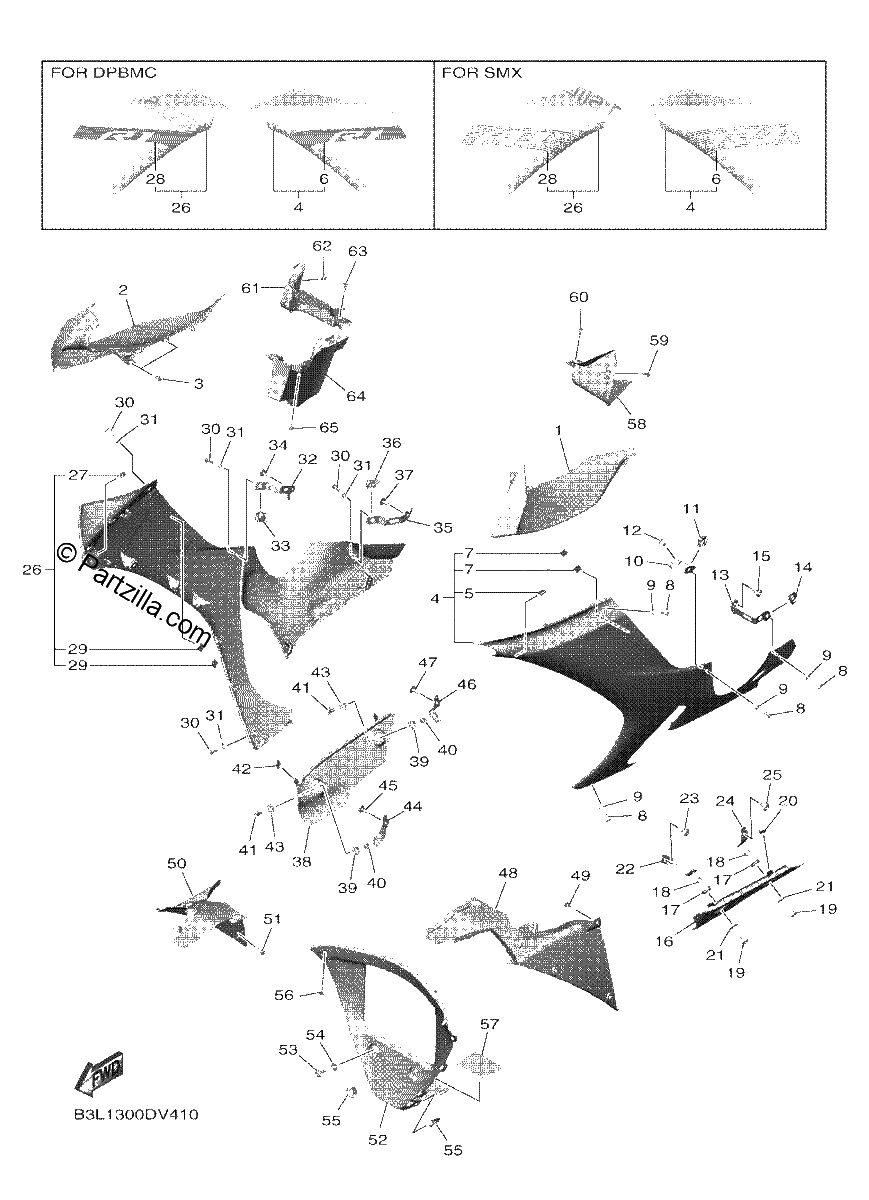

Diagrama de COWLING 2

Repuestos

#1
B3L-2842A-00-P1
COVER 5
$166.70¢83 350
1
#2
B3L-2843C-00-P1
COVER 6
$152.75¢76 375
1
#3
90183-05076-00
NUT, SPRING
$2.82¢1 412
1
#4
B3L-Y283U-10-P1
PANEL ASSEMBLY 1
$517.31¢258 656
1
#5
90464-07018-00
Clamp
$0.72¢363
1
#6
B3L-28391-10-00
GRAPHIC 1
$51.21¢25 606
1
#7
B3L-24595-00-00
Protector
$1.75¢875
1
#8
2CR-28386-00-00
HEAD
$14.65¢7 325
1
#9
8HG-21757-00-00
WASHER, SPECIAL 1
$1.06¢531
1
#10
B3L-2833K-00-00
BRACKET 13
$6.11¢3 056
1
#11
2CR-2177L-00-00
PLATE, SPRING
$5.71¢2 856
1
#12
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#13
B3L-2833L-00-00
BRACKET 14
$11.85¢5 925
1
#14
2CR-2177L-00-00
PLATE, SPRING
$5.71¢2 856
1
#15
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#16
B3L-2834V-00-00
PROTECTOR 1
$218.71¢109 356
1
#17
90480-14477-00
GROMMET
$3.84¢1 919
1
#18
90387-06307-00
COLLAR
$4.76¢2 381
1
#19
90149-06302-00
SCREW
$5.11¢2 556
1
#20
5PW-2411J-01-00
DAMPER, SIDE COVER
$7.65¢3 825
1
#21
90201-06063-00
WASHER, PLATE
$7.49¢3 744
1
#22
B3L-2833R-00-00
BRKT., 17
$16.32¢8 163
1
#23
90111-06182-00
BOLT,HEX. SOCKET BUTTON
$7.48¢3 738
1
#24
B3L-2833T-00-00
BRKT.,18
$14.44¢7 219
1
#25
90111-06182-00
BOLT,HEX. SOCKET BUTTON
$7.48¢3 738
1
#26
B3L-Y283V-10-P1
PANEL ASSEMBLY 2
$517.31¢258 656
1
#27
90464-07018-00
Clamp
$0.72¢363
1
#28
B3L-28392-10-00
GRAPHIC 2
$51.21¢25 606
1
#29
B3L-24595-00-00
Protector
$1.75¢875
1
#30
2CR-28386-00-00
HEAD
$14.65¢7 325
1
#31
8HG-21757-00-00
WASHER, SPECIAL 1
$1.06¢531
1
#32
B3L-2833M-00-00
BRACKET 15
$7.72¢3 863
1
#33
2CR-2177L-00-00
PLATE, SPRING
$5.71¢2 856
1
#34
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#35
B3L-2833N-00-00
BRACKET 16
$10.34¢5 169
1
#36
2CR-2177L-00-00
PLATE, SPRING
$5.71¢2 856
1
#37
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#38
B3L-2834W-00-00
PROTECTOR 2
$212.61¢106 306
1
#39
90480-14477-00
GROMMET
$3.84¢1 919
1
#40
90387-06307-00
COLLAR
$4.76¢2 381
1
#41
90149-06302-00
SCREW
$5.11¢2 556
1
#42
5PW-2411J-01-00
DAMPER, SIDE COVER
$7.65¢3 825
1
#43
90201-06063-00
WASHER, PLATE
$7.49¢3 744
1
#44
B3L-2833U-00-00
BRKT.,19
$10.45¢5 225
1
#45
90111-06182-00
BOLT,HEX. SOCKET BUTTON
$7.48¢3 738
1
#46
B3L-2833V-00-00
BRKT.,20
$9.01¢4 506
1
#47
90111-06182-00
BOLT,HEX. SOCKET BUTTON
$7.48¢3 738
1
#48
B3L-2836K-00-00
PANEL, INNER 1
$30.70¢15 350
1
#49
90269-06008-00
RIVET
$8.80¢4 400
1
#50
B3L-2836L-00-00
PANEL, INNER 2
$28.64¢14 319
1
#51
90269-06008-00
RIVET
$8.80¢4 400
1
#52
B3L-2836M-00-00
PANEL, INNER 3
$42.50¢21 250
1
#53
90149-06302-00
SCREW
$5.11¢2 556
1
#54
90387-06309-00
COLLAR
$7.39¢3 694
1
#55
2CR-2177L-00-00
PLATE, SPRING
$5.71¢2 856
1
#56
90269-06008-00
RIVET
$8.80¢4 400
1
#57
B3L-23472-00-00
Protector
$6.72¢3 363
1
#58
B3L-2837L-00-00
PANEL, console 1
$19.85¢9 925
1
#59
90109-05018-00
bolt
$2.61¢1 306
1
#60
90269-06008-00
RIVET
$8.80¢4 400
1
#61
B3L-2837M-00-00
PANEL, CONSOLE 2
$23.42¢11 712
1
#62
90109-05018-00
bolt
$2.61¢1 306
1
#63
90269-06008-00
RIVET
$8.80¢4 400
1
#64
B3L-2838K-00-00
BOX 1
$13.54¢6 769
1
#65
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$5.19¢2 594
1
