ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

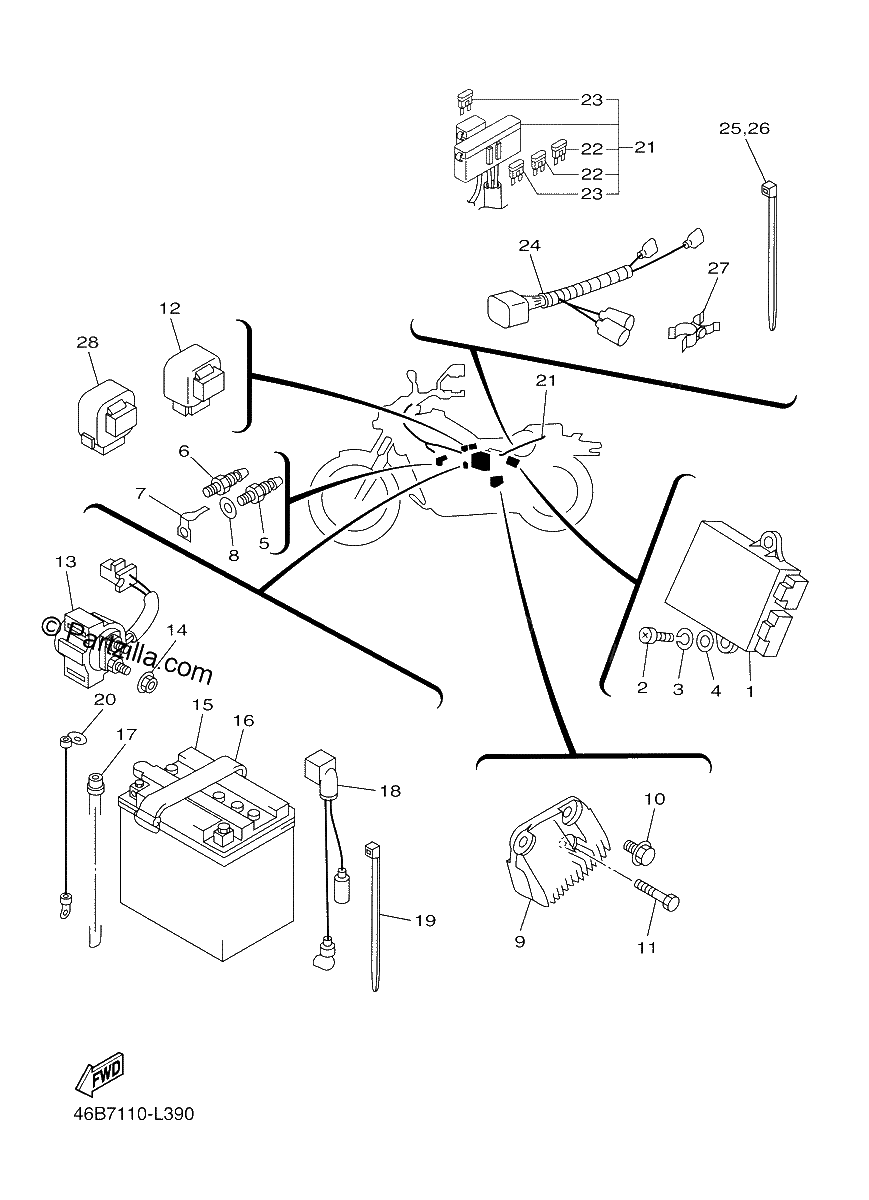

Diagrama de ELECTRICAL 1

Repuestos

#1
2UJ-82305-00-00
IGNITOR UNIT ASSY
$534.74¢267 369
1
#2
98507-06016-00
SCREW, PAN HEAD
$2.67¢1 334
1
#3
92907-06100-00
WASHER, SPRING
$1.13¢564
1
#4
92907-06600-00
WASHER, PLATE (6TA)
$0.89¢443
1
#5
5FU-83790-00-00
HEATER ASSY (15W)
$30.21¢15 105
1
#6
5FU-83790-20-00
HEATER ASSY (30W)
$48.04¢24 018
1
#7
5FU-82103-00-00
TERMINAL 1
$7.23¢3 617
1
#8
90201-08016-00
WASHER, PLATE | FOR CALIFORNIA
$6.83¢3 415
1
#9
3DM-81960-01-00
RECTIFIER REGULATOR ASSY
$247.18¢123 590
1
#10
90119-06044-00
BOLT, WITH WASHER
$6.43¢3 214
1
#11
97007-06030-00
BOLT
$3.29¢1 644
1
#12
2UJ-81950-01-00
Relay Assy (2Uj-00)
$65.04¢32 522
1
#13
36Y-81940-01-00
STARTER RELAY ASSY (MS5D-201)
$163.27¢81 633
1
#14
95707-06500-00
NUT, FLANGE
$0.86¢431
1
#15
3DN-82110-01-00
BATTERY ASSY (G.S. GM10-3A-2)
$118.62¢59 311
1
#16
118-82131-00-00
BAND, BATTERY
$21.75¢10 873
1
#17
90445-08248-00
HOSE (L500)
No Disponible
1
#18
2UJ-82115-01-00
WIRE, PLUS LEAD
$26.82¢13 409
1
#19
90464-16061-00
BAND
$7.68¢3 841
1
#20
2UJ-82116-00-00
WIRE, MINUS LEAD
$13.63¢6 814
1
#21
46B-82590-00-00
WIRE HARNESS ASSY | U49
$257.40¢128 702
1
#22
5JJ-82151-30-00
. FUSE (10A-BL)
$7.58¢3 789
1
#23
5JJ-82151-20-00
FUSE (20A-BL)
$7.01¢3 507
1
#24
2UJ-82509-01-00
WIRE, SUB LEAD
$17.11¢8 556
1
#25
90464-16061-00
BAND
$7.68¢3 841
1
#26
90464-16061-00
BAND
$7.68¢3 841
1
#27
90464-16119-00
CLAMP | FOR CALIFORNIA
$3.07¢1 535
1
#28
3GM-83350-02-00
Flasher Relay Assy
$86.93¢43 464
1
