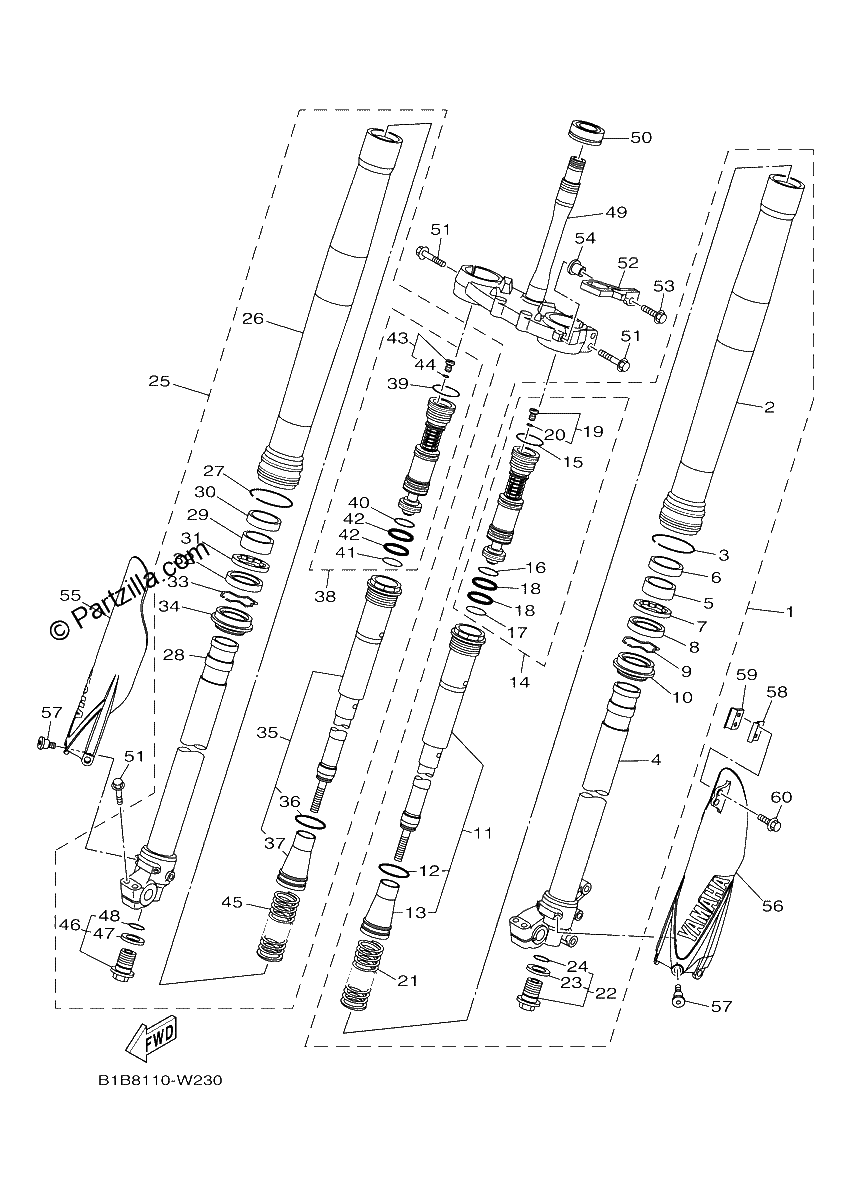

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$1983.74¢991 869
#2
TUBE, OUTER
$800.17¢400 088
#3
RING, SNAP
$4.97¢2 488
#4
INNER TUBE COMP.2
$607.69¢303 844
#5
PISTON, FRONT FORK
$24.64¢12 319
#6
METAL, SLIDE 1
$25.02¢12 513
#7
WASHER, OIL SEAL
$12.61¢6 306
#8
OIL SEAL
$27.14¢13 569
#9
RING, SNAP
$7.65¢3 825
#10
SEAL, DUST
$22.95¢11 475
#11
CYLINDER COMP., front fork
$566.24¢283 119
#12
O-RING
$3.81¢1 906
#13
SEAT, SPRING UPPER
$84.49¢42 244
#14
VALVE COMP.
$435.88¢217 938
#15
O-RING
$3.26¢1 631
#16
O-RING
$7.65¢3 825
#17
O-RING
$7.08¢3 538
#18
. O-RING
$8.85¢4 425
#19
AIR VALVE COMP.
$23.89¢11 944
#20
O-RING
$3.26¢1 631
#21
SPRING, FRONT FORK (K=4.3N/
No Disponible
#22
BOLT, CAP
$82.40¢41 200
#23
GASKET
$11.34¢5 669
#24
GASKET
$4.63¢2 313
#25
FRONT FORK ASSY (R.H)
$1987.49¢993 744
#26
TUBE, OUTER
$800.17¢400 088
#27
RING, SNAP
$4.97¢2 488
#28
INNER TUBE COMP.1
$623.69¢311 844
#29
PISTON, FRONT FORK
$24.64¢12 319
#30
METAL, SLIDE 1
$25.02¢12 513
#31
WASHER, OIL SEAL
$12.61¢6 306
#32
OIL SEAL
$27.14¢13 569
#33
RING, SNAP
$7.65¢3 825
#34
SEAL, DUST
$22.95¢11 475
#35
CYLINDER COMP., front fork
$566.24¢283 119
#36
O-RING
$3.81¢1 906
#37
SEAT, SPRING UPPER
$84.49¢42 244
#38
VALVE COMP.
$435.88¢217 938
#39
O-RING
$3.26¢1 631
#40
O-RING
$7.65¢3 825
#41
O-RING
$7.08¢3 538
#42
. O-RING
$8.85¢4 425
#43
AIR VALVE COMP.
$23.89¢11 944
#44
O-RING
$3.26¢1 631
#45
SPRING, FRONT FORK (K=4.3N/
No Disponible
#46
BOLT, CAP
$82.40¢41 200
#47
GASKET
$11.34¢5 669
#48
GASKET
$4.63¢2 313
#49
UNDER BRACKET COMP.
$766.24¢383 119
#50
BEARING
$60.51¢30 256
#51
BOLT, FLANGE DEEP RECESS
$2.94¢1 469
#52
GUIDE, CABLE
$7.94¢3 969
#53
BOLT, FLANGE DEEP RECESS
$0.81¢406
#54
Collar
$1.57¢788
#55
PROTECTOR 2
$16.54¢8 269
#56
PROTECTOR 1
$16.54¢8 269
#57
BOLT
$3.93¢1 963
#58
CLAMP
$19.71¢9 856
#59
CLAMP
$26.99¢13 494
#60
BOLT, FLANGE
$5.05¢2 525
