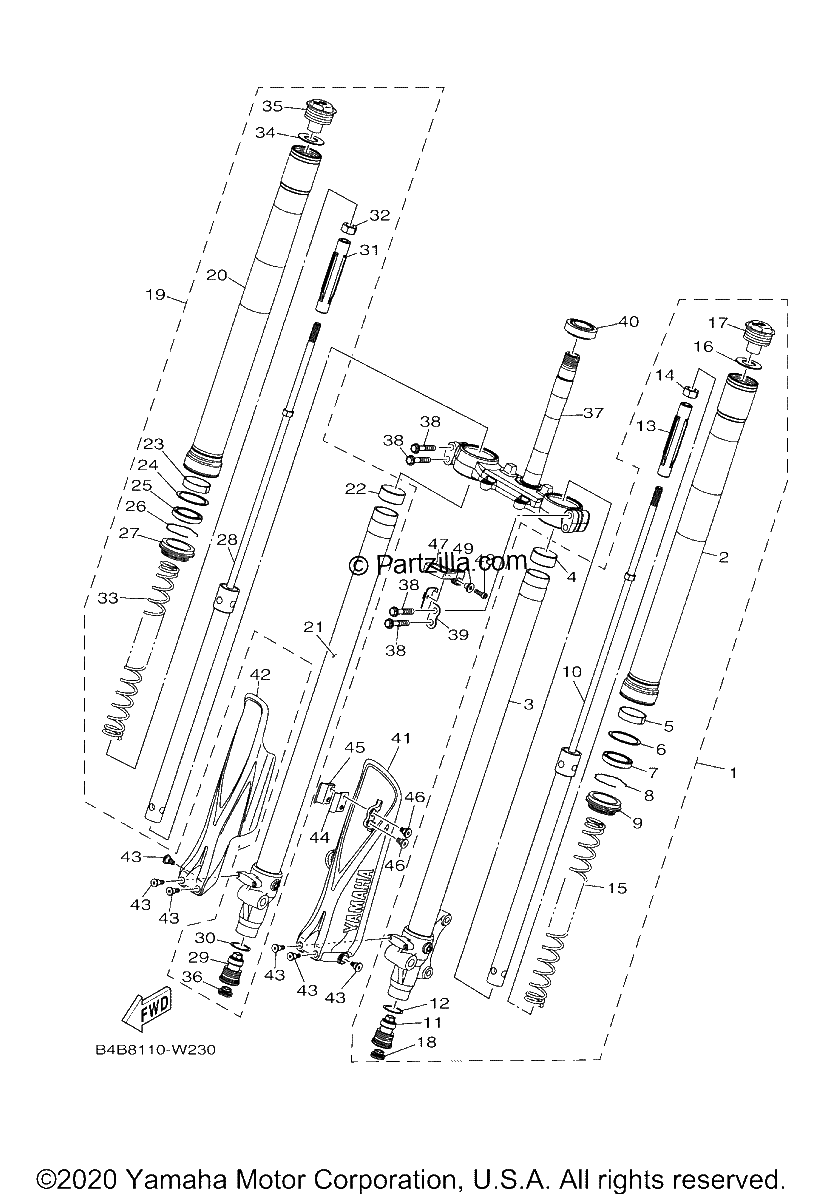

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$874.99¢437 494
#2
TUBE, OUTER 2
$603.20¢301 600
#3
INNER TUBE COMP.2
$301.59¢150 794
#4
PISTON, FRONT FORK
$32.14¢16 069
#5
METAL, SLIDE 1
$15.11¢7 556
#6
WASHER, SPRING UPPER
$9.13¢4 563
#7
OIL SEAL
$22.13¢11 063
#8
RING, SNAP
$5.66¢2 831
#9
SEAL, DUST
$23.24¢11 619
#10
CYLINDER COMP., front fork
$343.10¢171 550
#11
VALVE COMP.
$197.33¢98 663
#12
GASKET
$11.34¢5 669
#13
SEAT, SPRING UPPER
$31.95¢15 975
#14
NUT
$0.90¢450
#15
SPRING, FRONT FORK (replaces 4ES-23141-40-00)
$59.04¢29 519
#16
WASHER, SPRING UPPER
$5.88¢2 938
#17
BOLT, cap
$170.29¢85 144
#18
PLUG
$7.08¢3 538
#19
FRONT FORK ASSY (R.H)
$874.99¢437 494
#20
TUBE, OUTER 2
$603.20¢301 600
#21
INNER TUBE COMP.1
$301.59¢150 794
#22
PISTON, FRONT FORK
$32.14¢16 069
#23
METAL, SLIDE 1
$15.11¢7 556
#24
WASHER, SPRING UPPER
$9.13¢4 563
#25
OIL SEAL
$22.13¢11 063
#26
RING, SNAP
$5.66¢2 831
#27
SEAL, DUST
$23.24¢11 619
#28
CYLINDER COMP., front fork
$343.10¢171 550
#29
VALVE COMP.
$197.33¢98 663
#30
GASKET
$11.34¢5 669
#31
SEAT, SPRING UPPER
$31.95¢15 975
#32
NUT
$0.90¢450
#33
SPRING, FRONT FORK (replaces 4ES-23141-40-00)
$59.04¢29 519
#34
WASHER, SPRING UPPER
$5.88¢2 938
#35
BOLT, cap
$170.29¢85 144
#36
PLUG
$7.08¢3 538
#37
UNDER BRACKET COMP.
$807.49¢403 744
#38
BOLT 1
$6.42¢3 213
#39
GUIDE, CABLE
$25.72¢12 862
#40
BEARING TAPRD
$75.76¢37 881
#41
PROTECTOR 1
$20.55¢10 275
#42
PROTECTOR 2
$20.55¢10 275
#43
BOLT
$3.93¢1 963
#44
CLAMP
$19.71¢9 856
#45
CLAMP
$26.99¢13 494
#46
BOLT
$3.93¢1 963
#47
GUIDE, CABLE
$11.70¢5 850
#48
BOLT
$2.95¢1 475
#49
Collar
$3.16¢1 581
