CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

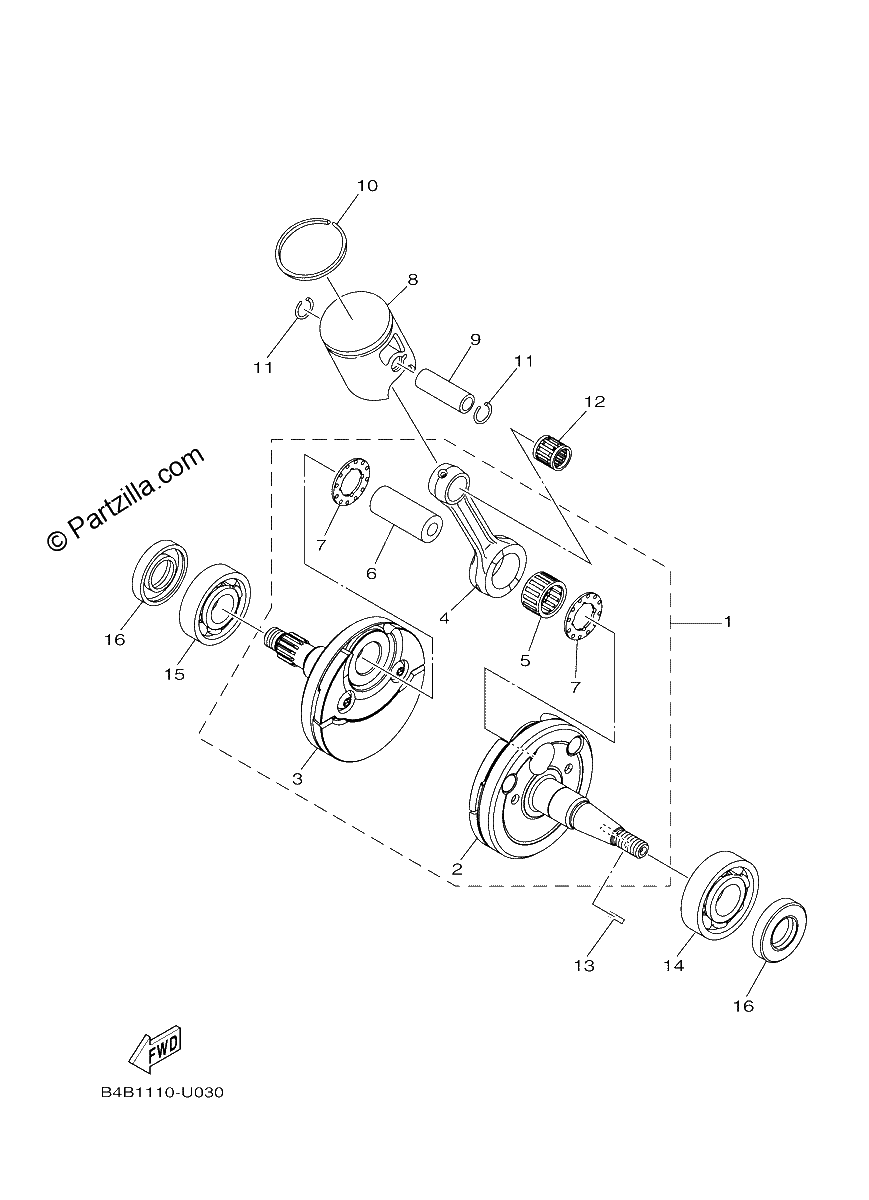

Diagrama de CRANKSHAFT PISTON

Repuestos

#1
B4B-11400-00-00
Crankshaft Assy
$347.08¢173 538
1
#2
B4B-11410-00-00
Crankshaft
$180.51¢90 256
1
#3
B4B-11420-00-00
Crankshaft
$164.53¢82 263
1
#4
B4B-11651-00-00
ROD, CONNECTING
$54.28¢27 138
1
#5
93310-420B1-00
BEARING
$56.59¢28 294
1
#6
2RA-11681-00-00
PIN, CRANK 1
$41.14¢20 569
1
#7
90209-20159-00
WASHER
$4.95¢2 475
1
#8
5PA-11631-10-D0
PISTON (STD) *{UR PURPLE}*
$89.89¢44 944
1
#8
5PA-11631-10-C0
PISTON (STD) *{UR GREEN}*
$90.34¢45 169
1
#8
5PA-11631-10-B0
PISTON (STD) (replaces 5PA-11631-00-B0)
$85.76¢42 881
1
#8
5PA-11631-10-A0
PISTON (STD) *{UR RED}*
$90.21¢45 106
1
#9
4ES-11633-00-00
PIN, PISTON
$17.01¢8 506
1
#10
5PA-11611-00-00
RING, PISTON
$16.23¢8 113
1
#11
93450-16115-00
CIRCLIP
$3.33¢1 663
1
#12
93310-21417-00
BEARING
$33.09¢16 544
1
#13
90280-03045-00
KEY, WOODRUFF
$6.88¢3 438
1
#14
93306-20438-00
BEARING
$46.48¢23 238
1
#15
93306-30421-00
BEARING
$67.25¢33 625
1
#16
93102-20485-00
OIL SEAL
$22.69¢11 344
1
