TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

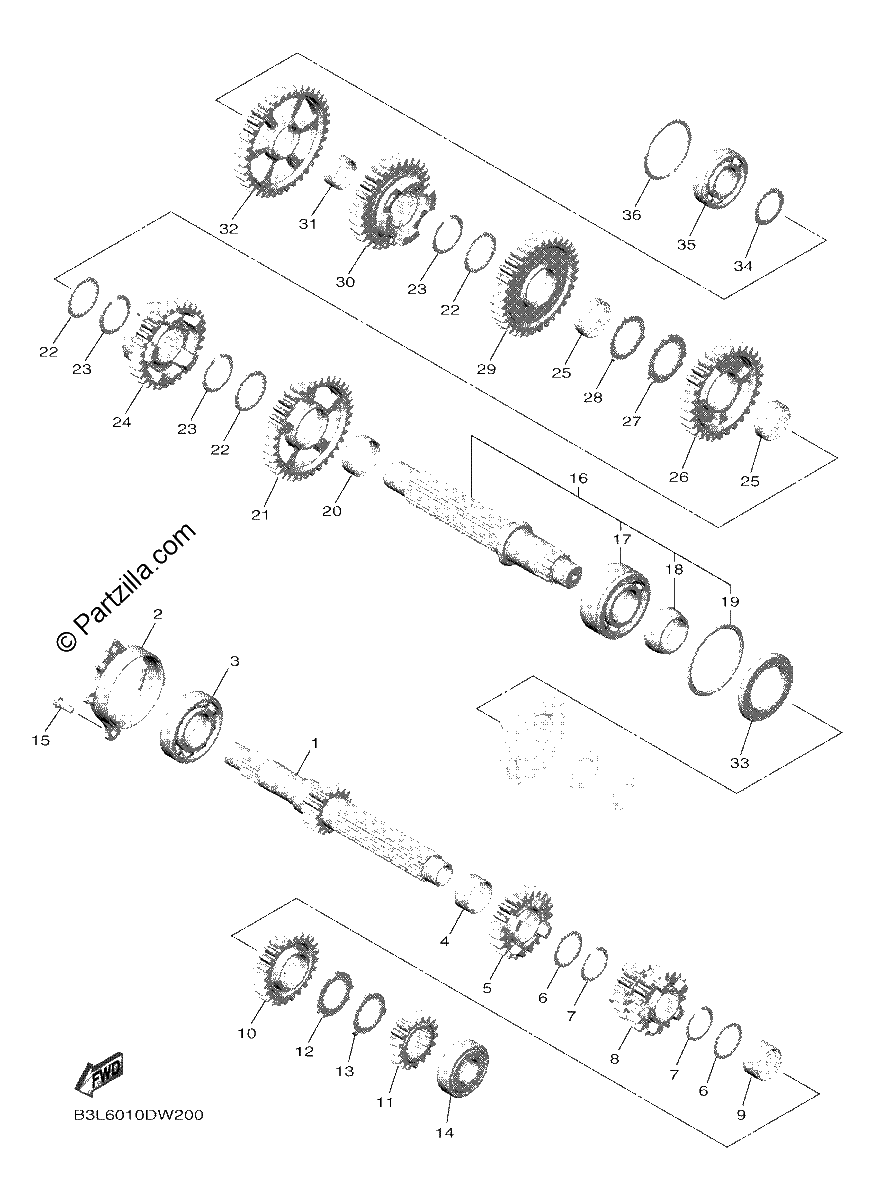

Diagrama de TRANSMISSION

Repuestos

#1
2CR-17411-00-00
AXLE, MAIN (15T)
$182.71¢91 356
1
#2
2CR-15163-00-00
HOUSING, BEARING 1
$167.22¢83 611
1
#3
93306-20652-00
BEARING
$87.34¢43 671
1
#4
90387-28003-00
COLLAR
$26.20¢13 099
1
#5
2CR-17151-00-00
GEAR, 5TH PINION (21T)
$110.49¢55 246
1
#6
90209-25011-00
WASHER
$7.91¢3 956
1
#7
93440-28184-00
CIRCLIP
$4.06¢2 030
1
#8
2CR-17131-01-00
GEAR, 3RD PINION (19/19T)
$402.94¢201 468
1
#9
90387-25023-00
COLLAR
$39.49¢19 746
1
#10
2CR-17161-00-00
GEAR, 6TH PINION (24T)
$131.92¢65 958
1
#11
B3L-17121-00-00
GEAR, 2ND PINION (17T)
$144.69¢72 346
1
#12
90214-25004-00
WASHER, CLAW
$7.93¢3 968
1
#13
90214-25003-00
WASHER, CLAW
$7.95¢3 973
1
#14
93306-27214-00
BEARING
$88.20¢44 103
1
#15
90149-06082-00
SCREW
$6.75¢3 375
1
#16
2CR-17402-00-00
DRIVE AXLE ASSY
$291.59¢145 797
1
#17
93305-20605-00
BEARING
$156.30¢78 148
1
#18
90387-30012-00
COLLAR
$29.03¢14 513
1
#19
93440-62032-00
CIRCLIP
$11.59¢5 796
1
#20
90387-31003-00
COLLAR
$19.72¢9 861
1
#21
BW8-17221-00-00
GEAR, 2ND WHEEL
$174.90¢87 452
1
#22
90209-28008-00
WASHER
$6.82¢3 410
1
#23
93440-31187-00
CIRCLIP
$6.83¢3 415
1
#24
2CR-17261-00-00
GEAR, 6TH WHEEL (30T)
$184.24¢92 121
1
#25
90387-28004-00
COLLAR
$31.05¢15 525
1
#26
2CR-17241-01-00
GEAR, 4TH WHEEL (30T)
$186.00¢93 001
1
#27
90214-29002-00
WASHER, CLAW
$8.31¢4 157
1
#28
90214-28002-00
WASHER, CLAW
$8.05¢4 025
1
#29
B67-17231-01-00
GEAR, 3RD WHEEL
$199.88¢99 941
1
#30
2CR-17251-00-00
GEAR, 5TH WHEEL (29T)
$184.47¢92 236
1
#31
90387-25008-00
COLLAR
$32.55¢16 273
1
#32
B60-17211-00-00
GEAR, 1ST WHEEL (39T)
$169.73¢84 864
1
#33
93102-40330-00
OIL SEAL
$23.52¢11 759
1
#34
90201-257H0-00
WASHER, PLATE
$9.10¢4 548
1
#35
93306-205A2-00
BEARING
$72.48¢36 242
1
#36
93440-52009-00
CIRCLIP
$10.67¢5 336
1
