REAR BRAKE CALIPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

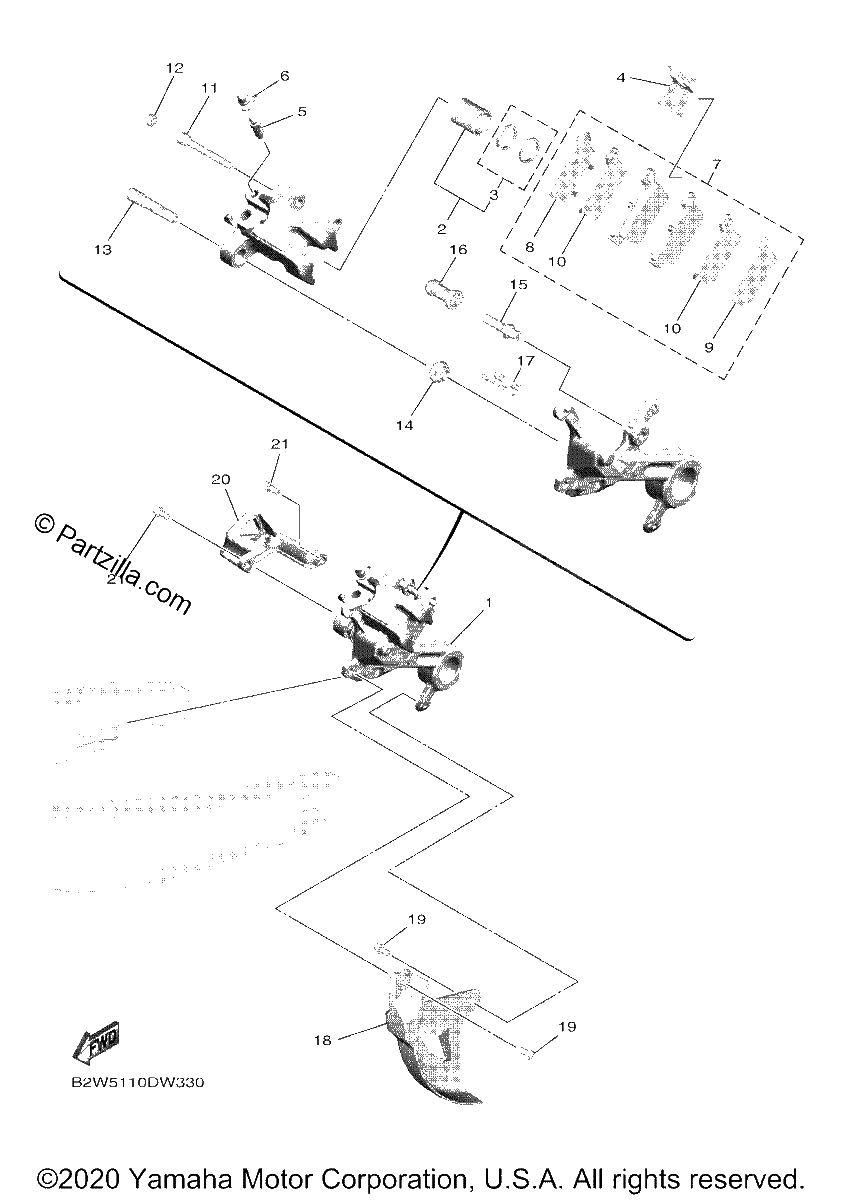

Diagrama de REAR BRAKE CALIPER

Repuestos

#1
B2W-2580W-00-00
CALIPER ASSY, REAR 2
$364.09¢182 044
1
#2
5UN-W0057-50-00
PISTON ASSY, CALIPER
$64.08¢32 038
1
#3
5UN-W0047-50-00
Caliper Seal Kit
$17.01¢8 506
1
#4
5DH-25919-50-00
SUPPORT,PAD
$21.13¢10 563
1
#5
36Y-W0048-00-00
BLEED SCREW KIT
$10.14¢5 069
1
#6
36Y-W0048-00-00
BLEED SCREW KIT
$10.14¢5 069
1
#7
1C3-W0046-50-00
BRAKE PAD KIT 2
$52.95¢26 475
1
#8
5UN-25828-60-00
SHIM, CALIPER
$12.24¢6 119
1
#9
5UN-25827-60-00
SHIM, CALIPER
$15.34¢7 669
1
#10
5UN-22898-60-00
INSULATOR, HEAT
$19.82¢9 913
1
#11
8CR-25924-00-00
PIN, PAD
$13.43¢6 713
1
#12
5DH-25916-00-00
PLUG
$8.85¢4 425
1
#13
5DH-25914-50-00
PIN, SLIDE
$22.44¢11 219
1
#14
3JD-25917-00-00
BOOT, CALIPER
$8.97¢4 488
1
#15
5UN-25914-00-00
PIN, SLIDE
$13.04¢6 519
1
#16
1UY-25937-51-00
BOOT 2
$14.65¢7 325
1
#17
5UN-25913-00-00
Retainer
$13.32¢6 663
1
#18
17D-25718-50-00
PROTECTOR, DISK BRAKE
$28.54¢14 269
1
#19
95E32-06012-00
BOLT, FLANGE DEEP RECESS
$1.07¢538
1
#20
B2W-2583E-00-00
PROTECTOR, CALIPER 2
$14.75¢7 375
1
#21
95E32-06012-00
BOLT, FLANGE DEEP RECESS
$1.07¢538
1
