CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

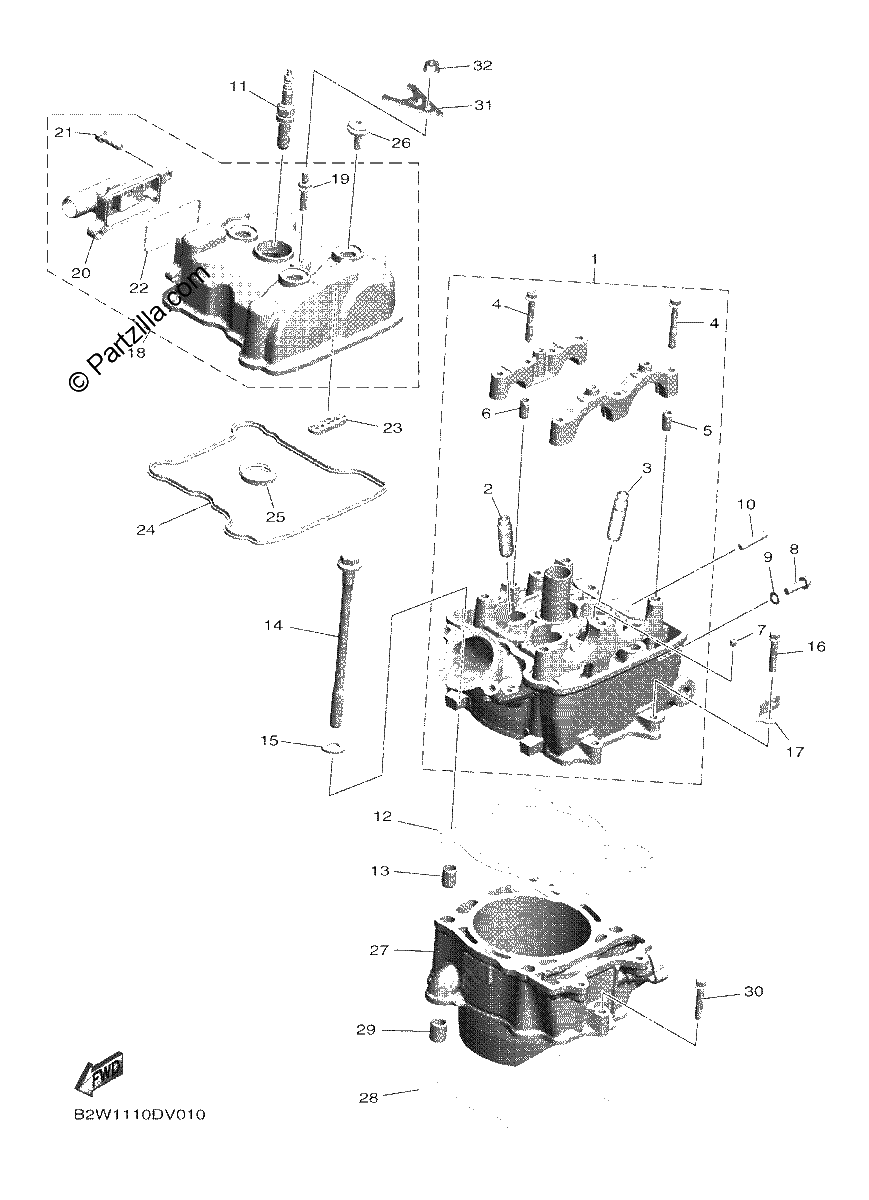

Diagrama de CYLINDER

Repuestos

#1
B2W-11102-00-00
Cylinder Head Assy
$774.56¢387 281
1
#2
B2W-11133-10-00
GUIDE, VALVE 1
$96.14¢48 069
1
#3
5PS-11134-10-00
GUIDE, VALVE 2
$80.38¢40 188
1
#4
90105-06027-00
BOLT, FLANGE
$7.67¢3 838
1
#5
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#6
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#7
B2W-15138-00-00
NOZZLE 1
$5.65¢2 825
1
#8
90105-06227-00
Bolt, Flange
$0.91¢456
1
#9
90430-06014-00
GASKET
$8.25¢4 125
1
#10
90116-06037-00
BOLT, stud
$4.03¢2 013
1
#11
LMA-R8G00-00-00
LMAR8 NGK SPLUG 10PK (replaces 94701-00434-00)
$14.72¢7 363
1
#12
B2W-11181-00-00
GASKET, CYLINDER HEAD 1
$27.81¢13 906
1
#13
93612-16254-00
PIN,DOWEL
$5.19¢2 594
1
#14
90105-10367-00
Bolt, Flange
$12.75¢6 375
1
#15
90201-10025-00
WASHER, plate
$7.41¢3 706
1
#16
95E32-06030-00
BOLT, FLANGE DEEP RECESS
$0.85¢425
1
#17
BR9-81128-00-00
Clamp
$7.06¢3 531
1
#18
B2W-11190-00-00
COVER, CYLINDER HEAD 1
$314.59¢157 294
1
#19
90116-06048-00
. BOLT, STUD
$5.51¢2 756
1
#20
B2W-11168-00-00
Cover, Breather
$36.14¢18 069
1
#21
90105-06225-00
Bolt, Flange
$0.96¢481
1
#22
B2W-11169-00-00
GASKET, BREATHER COVER
$8.92¢4 462
1
#23
B2W-12241-00-00
GUIDE, STOPPER 2
$10.54¢5 269
1
#24
B2W-11193-00-00
GASKET, HEAD COVER 1
$22.27¢11 138
1
#25
1SM-11194-00-00
GASKET, HEAD COVER 2
$17.01¢8 506
1
#26
5UM-1119E-00-00
BOLT, COVER HEAD
$13.06¢6 531
1
#27
B2W-11311-00-00
CYLINDER 1
$433.14¢216 569
1
#28
B2W-11351-00-00
Gasket, Cylinder
$14.57¢7 288
1
#29
99530-14016-00
PIN, DOWEL
$3.81¢1 906
1
#30
95E32-06030-00
BOLT, FLANGE DEEP RECESS
$0.85¢425
1
#31
BR9-11395-00-00
HOLDER
$5.07¢2 537
1
#32
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
