STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

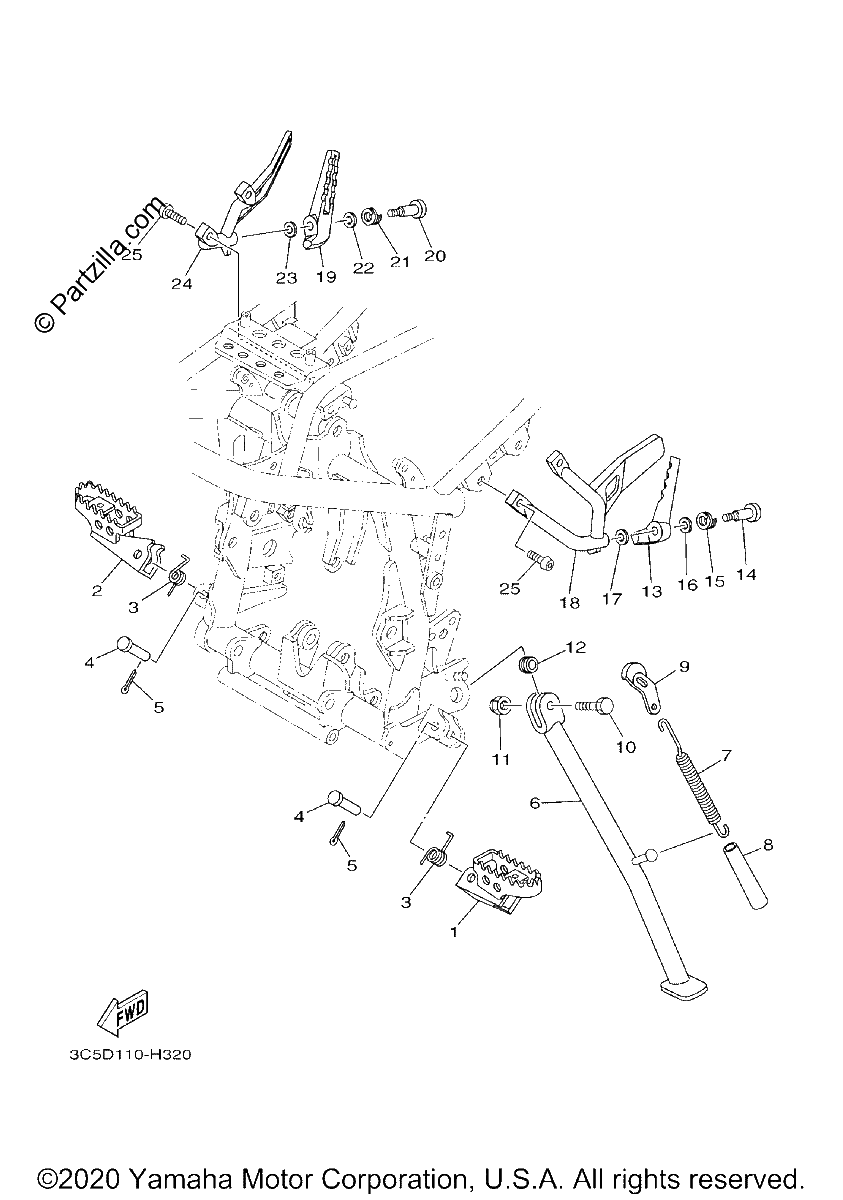

Diagrama de STAND FOOTREST

Repuestos

#1
3LD-27411-10-00
FOOTREST 1
$53.90¢26 950
1
#2
3LD-27421-10-00
FOOTREST 2
$53.50¢26 750
1
#3
90508-20583-00
SPRING,TORSION
$7.94¢3 969
1
#4
90240-10101-00
PIN,CLEVIS
$12.75¢6 375
1
#5
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#6
3C5-27311-10-00
STAND, SIDE
$67.86¢33 931
1
#7
90506-35473-00
SPRING,TENSION
$17.41¢8 706
1
#8
90445-22327-00
HOSE
$7.57¢3 787
1
#9
5XT-27315-01-00
LINK, SIDE STAND
$7.97¢3 988
1
#10
90101-10013-00
bolt
$4.20¢2 100
1
#11
90185-10012-00
NUT, SELF-LOCKING
$3.55¢1 775
1
#12
90387-10003-00
Collar
$25.39¢12 694
1
#13
3XP-27431-02-00
FOOTREST, REAR 1
$37.81¢18 906
1
#14
90109-085F5-00
BOLT(3XP)
$5.50¢2 750
1
#15
90504-18031-00
SPRING,COMPRESSION (replaces 90504-18005-00)
$9.13¢4 563
1
#16
92907-10600-00
WASHER (6TA)
$7.35¢3 675
1
#17
90201-083P5-00
WASHER, PLATE(3XP)
$6.14¢3 069
1
#18
3C5-27432-00-00
BRACKET 1
$80.65¢40 325
1
#19
3XP-27441-02-00
FOOTREST, REAR 2
$35.92¢17 963
1
#20
90109-085F5-00
BOLT(3XP)
$5.50¢2 750
1
#21
90504-18031-00
SPRING,COMPRESSION (replaces 90504-18005-00)
$9.13¢4 563
1
#22
92907-10600-00
WASHER (6TA)
$7.35¢3 675
1
#23
90201-083P5-00
WASHER, PLATE(3XP)
$6.14¢3 069
1
#24
3C5-27442-00-00
BRACKET 2
$80.49¢40 244
1
#25
92012-08020-00
BOLT, BUTTON HEAD
$2.65¢1 325
1
