SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

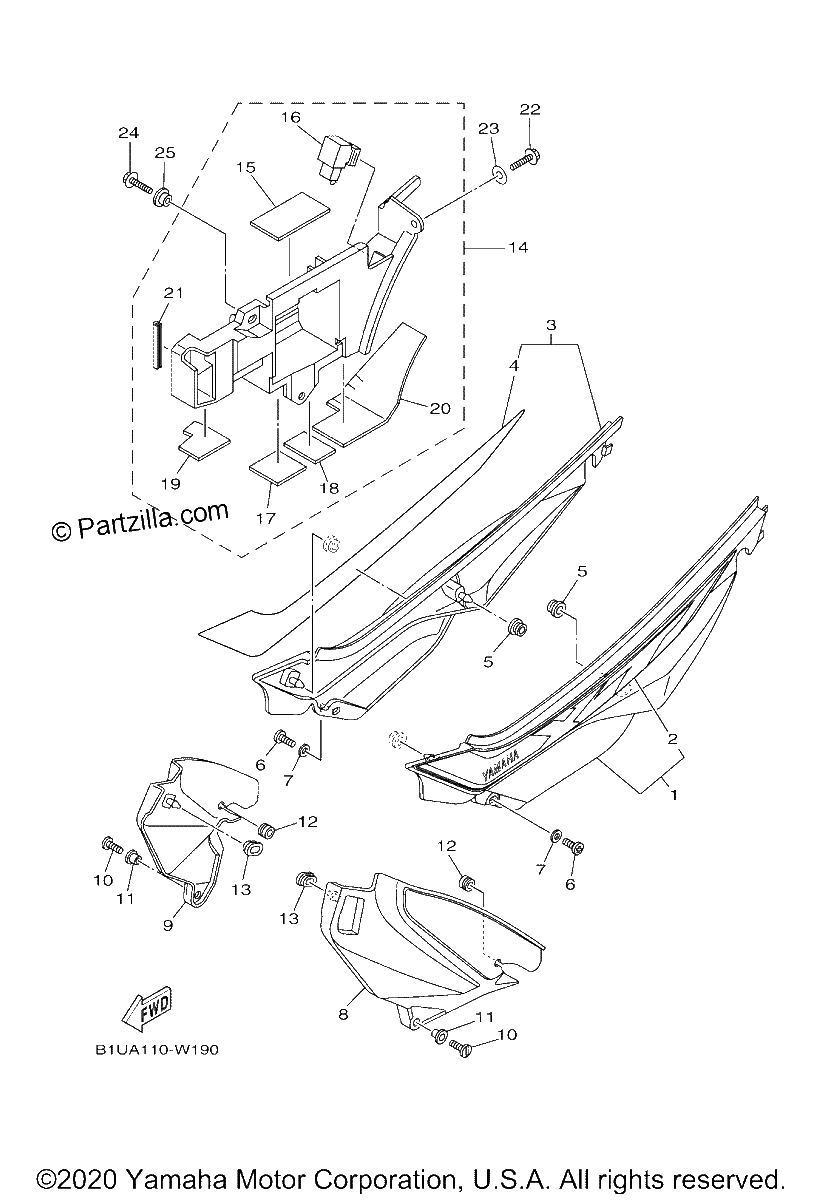

Diagrama de SIDE COVER

Repuestos

#1
3C5-Y2171-8A-00
COVER, SIDE 1
$117.91¢58 956
1
#2
B1U-2173E-00-00
. .GRAPHIC 1
$27.27¢13 638
1
#3
3C5-Y2172-8A-00
COVER, SIDE 2
$138.69¢69 344
1
#4
B1U-2173F-00-00
. .GRAPHIC 2
$27.27¢13 638
1
#5
90480-01558-00
Grommet
$4.69¢2 344
1
#6
90149-06298-00
SCREW,SPEC'L SHAPE
$5.07¢2 537
1
#7
90201-06020-00
WASHER, PLATE (replaces 90201-06058-00)
$7.48¢3 738
1
#8
3C5-21731-00-00
COVER, SIDE 3
$14.56¢7 281
1
#9
3C5-21741-00-00
COVER, SIDE 4
$15.60¢7 800
1
#10
90146-06014-00
SCREW,OVAL FLSTR
$2.99¢1 494
1
#11
90387-06048-00
Collar
$7.23¢3 613
1
#12
90480-10334-00
Grommet
$8.21¢4 106
1
#13
90480-01141-00
90480-01401-00 This item has been discontinued and may not be available. Contact us for more information.
$6.75¢3 375
1
#14
1YB-8210E-20-00
BATTERY BOX ASSY
$138.65¢69 325
1
#15
5EJ-2414H-00-00
DAMPER, PLATE 1
$7.86¢3 931
1
#16
4MY-83350-02-00
FLASHER RELAY ASSY (replaces 4MY-83350-01-00)
$55.98¢27 988
1
#17
5XT-2174A-00-00
INSULATOR, SIDE COVE
$4.30¢2 150
1
#18
5XT-2174T-00-00
INSULATOR, SIDE COVE
$4.15¢2 075
1
#19
5XT-2172S-00-00
INSULATOR 3
$4.70¢2 350
1
#20
5XT-2173S-00-00
INSULATOR 4
$5.95¢2 975
1
#21
31A-24188-01-00
MOLD, FUEL TANK
$14.55¢7 275
1
#22
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.65¢2 325
1
#23
90201-06095-00
WASHER, PLATE (replaces 90201-06063-00)
$7.49¢3 744
1
#24
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
1
#25
90387-06066-00
Collar
$6.38¢3 188
1
