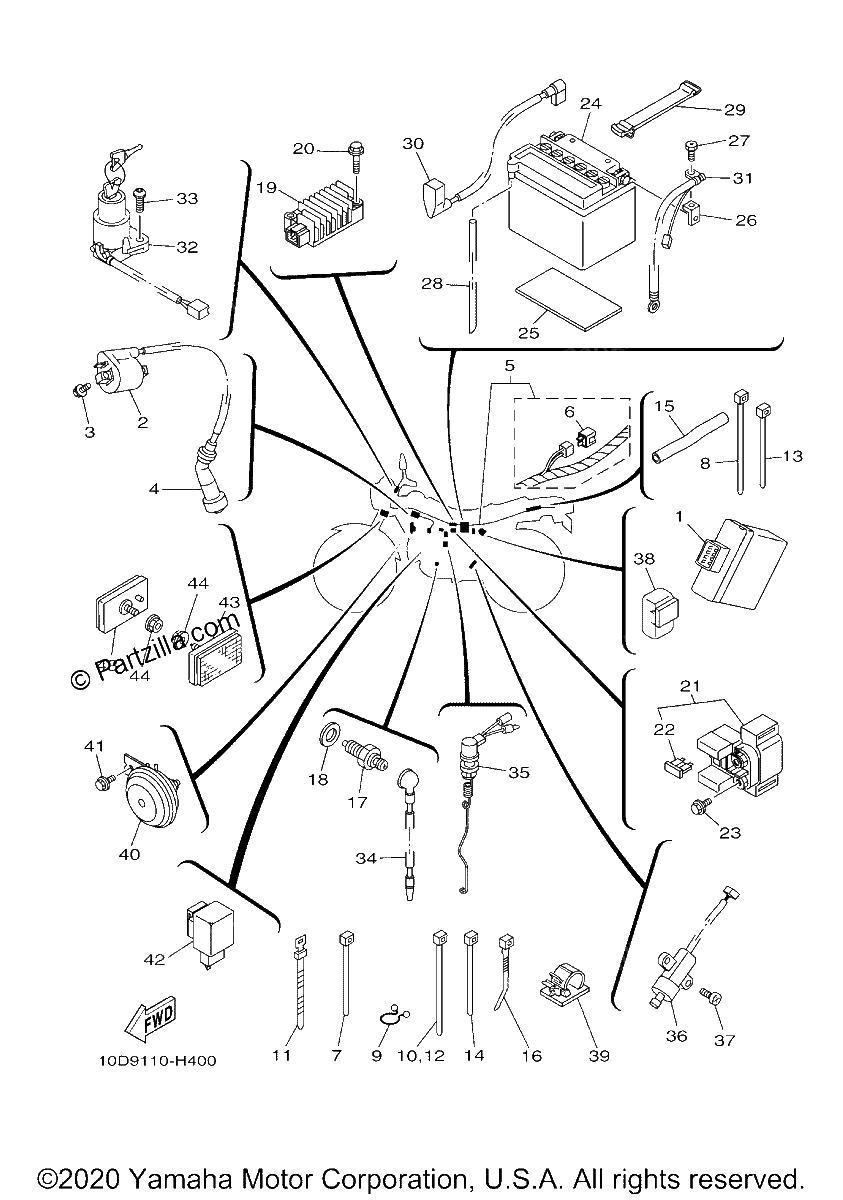

ELECTRICAL 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
C.D.I. UNIT ASSY (replaces 5LB-85540-01-00)
$195.93¢97 963
#2
IGNITION COIL ASSY
$46.46¢23 231
#3
BOLT, FLANGE
$7.48¢3 738
#4
PLUG CAP ASY
$38.68¢19 338
#5
WIRE HARNESS ASSY
$297.10¢148 550
#6
RECTIFIER 2
$22.45¢11 225
#7
CLAMP 1
$7.86¢3 931
#8
BAND
$4.91¢2 456
#9
CLAMP (replaces 341-82594-00-00)
$6.91¢3 456
#10
BAND
$4.91¢2 456
#11
BAND, SWITCH CORD
$4.91¢2 456
#12
BAND
$4.91¢2 456
#13
CLAMP 1
$7.86¢3 931
#14
CLAMP 1
$7.86¢3 931
#15
HOSE(4CS) (replaces 90446-15377-00)
$2.35¢1 175
#16
CLAMP
$2.78¢1 388
#17
NEUTRAL SWITCH ASSY
$39.93¢19 963
#18
Gasket
$5.66¢2 831
#19
RECTIFIER/REG ASY
$179.44¢89 719
#20
BOLT,SMALL FLANGE
$3.77¢1 888
#21
STARTER RELAY ASSY
$125.11¢62 556
#22
FUSE (20A-BL) (replaces 2GH-82151-00-00)
$5.15¢2 575
#23
BOLT, FLANGE
$6.67¢3 338
#24
GM7CZ3D GS BATTERY (replaces 1JE-82110-61-00)
$101.48¢50 738
#25
SEAT, BATTERY
$8.15¢4 075
#26
TERMINAL
$12.72¢6 363
#27
SCREW, HEXAGON
$7.31¢3 656
#28
HOSE (3GG) (replaces 90445-082F3-00)
$19.55¢9 775
#29
BAND,BATTERY (replaces 18G-82131-00-00)
$19.11¢9 556
#30
WIRE, plus lead
$43.50¢21 750
#31
WIRE, MINUS LEAD
$24.35¢12 175
#32
MAIN SWITCH STEERING
$189.14¢94 569
#33
SCREW,SPEC'L SHAPE
$7.48¢3 738
#34
Wire, Lead
$16.51¢8 256
#35
STOP SWITCH ASSY
$26.14¢13 069
#36
SWITCH,SIDE STAND
$59.44¢29 719
#37
SCREW, PAN HEAD
$1.68¢838
#38
RELAY ASSY
$83.00¢41 500
#39
Clamp
$6.44¢3 219
#40
HORN
$51.11¢25 556
#41
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
#42
FLASHER RELAY ASSY (replaces 4MY-83350-01-00)
$55.98¢27 988
#43
FRT.REFLECTOR ASSY (replaces 20G-85110-00-00)
$25.65¢12 825
#44
NUT, FLANGE
$7.35¢3 675
