SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

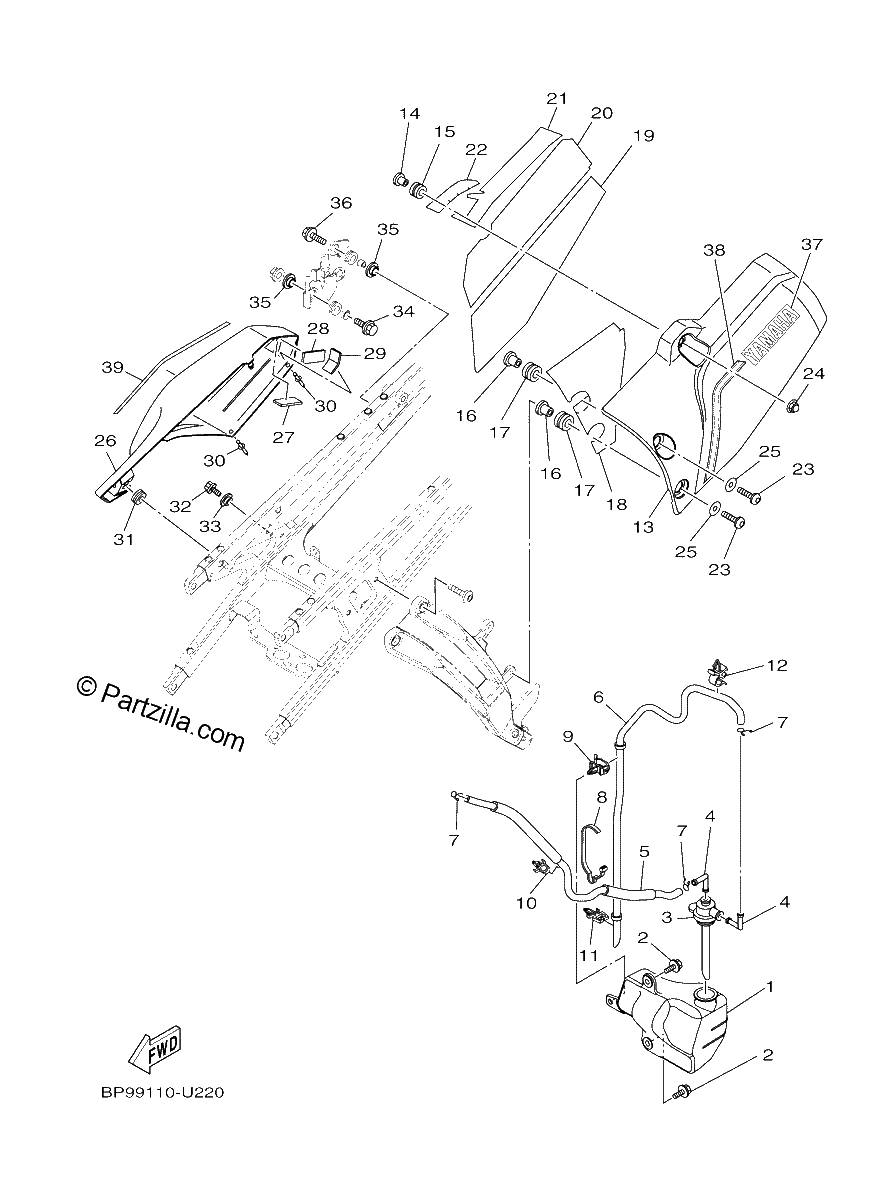

Diagrama de SIDE COVER

Repuestos

#1
23P-21871-00-00
TANK, RECOVERY
$45.39¢22 694
1
#2
90119-06137-00
BOLT, WITH WASHER
$7.43¢3 713
1
#3
23P-21875-00-00
CAP
$15.40¢7 700
1
#4
26H-21828-00-00
ELBOW
$26.14¢13 069
1
#5
23P-21816-00-00
PIPE 1
$18.10¢9 050
1
#6
23P-21877-00-00
PIPE, OVERFLOW
$5.72¢2 863
1
#7
90467-08075-00
CLIP
$7.34¢3 669
1
#8
90464-07M40-00
CLAMP
$16.57¢8 288
1
#9
90464-14M55-00
CLAMP
$2.20¢1 100
1
#10
90464-08008-00
CLAMP
$1.63¢813
1
#11
90464-07M56-00
CLAMP
$2.25¢1 125
1
#12
90464-09129-00
CLAMP
$2.20¢1 100
1
#13
2BS-14718-00-00
PROTECTOR, MUFFLER 1
$91.51¢45 756
1
#14
90387-06273-00
Collar
$3.28¢1 638
1
#15
90480-12581-00
GROMMET
$5.54¢2 769
1
#16
90387-10102-00
COLLAR
$5.63¢2 813
1
#17
90480-01025-00
GROMMET
$4.75¢2 375
1
#18
2BS-1475P-00-00
SEAT
$34.86¢17 431
1
#19
2BS-1476P-00-00
SEAT
$40.55¢20 275
1
#20
2BS-1477P-00-00
SEAT
$27.90¢13 950
1
#21
2BS-1479P-00-00
SEAT 5
$16.73¢8 363
1
#22
2BS-1471P-00-00
SEAT, 6
$4.01¢2 006
1
#23
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
1
#24
90176-06047-00
NUT, CAP
$8.18¢4 088
1
#25
90201-06112-00
WASHER, PLATE
$4.68¢2 338
1
#26
2KB-21721-00-P0
COVER, SIDE 2 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$287.86¢143 931
1
#27
1S3-82122-00-00
SEAT, BATTERY
$3.73¢1 863
1
#28
14B-28237-00-00
DAMPER 3
$3.73¢1 863
1
#29
3D7-1442H-00-00
DAMPER 4
$3.57¢1 787
1
#30
90269-06081-00
RIVET
$6.78¢3 388
1
#31
90480-12325-00
GROMMET
$8.22¢4 113
1
#32
95802-08016-00
BOLT, FLANGE
$7.94¢3 969
1
#33
90387-08079-00
COLLAR
$8.92¢4 462
1
#34
95802-06020-00
BOLT, FLANGE
$3.31¢1 656
1
#35
90387-06066-00
Collar
$6.38¢3 188
1
#36
95802-06025-00
BOLT, FLANGE
$0.30¢150
1
#37
99246-00100-00
EMBLEM, YAMAHA
$18.38¢9 188
1
#38
2BS-146E1-90-00
GRAPHIC 1
$13.94¢6 969
1
#39
2KB-21788-90-00
GRAPHIC
$16.02¢8 012
1
