ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

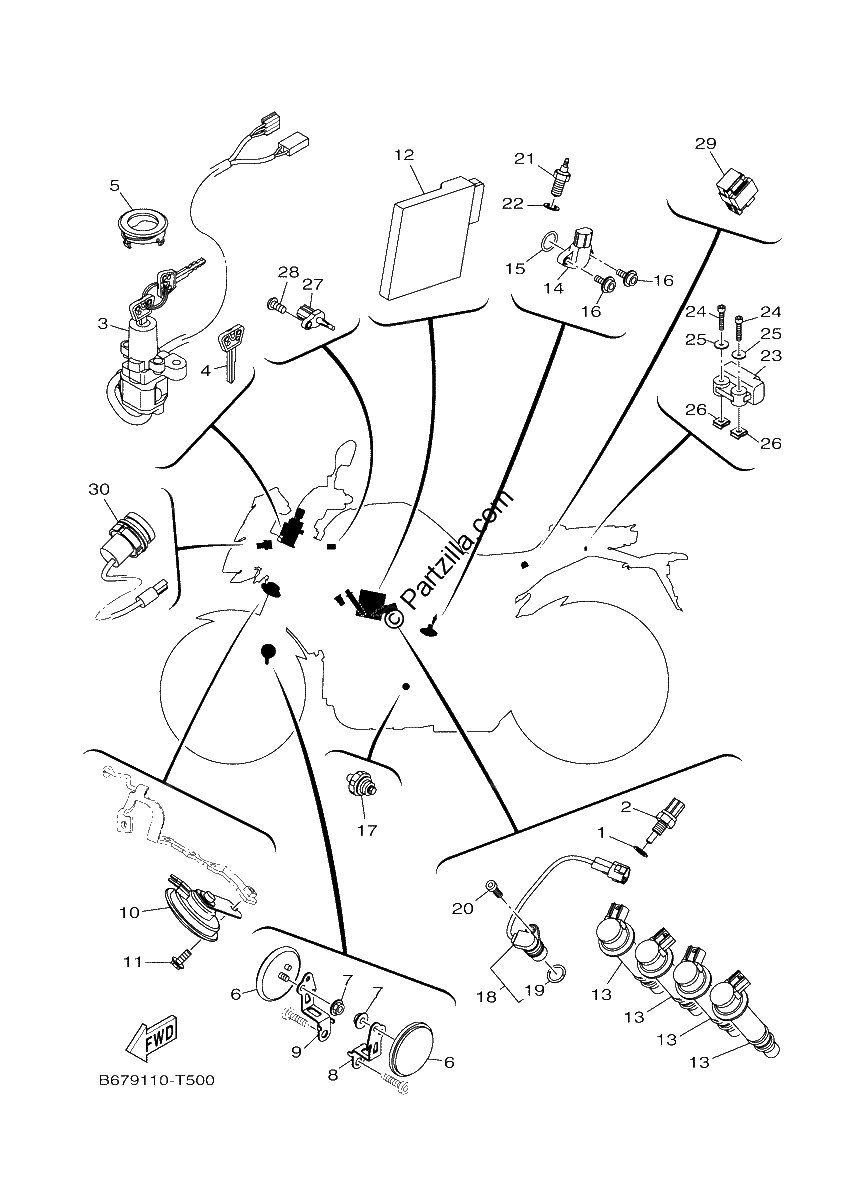

Diagrama de ELECTRICAL 1

Repuestos

#1
90430-10004-00
GASKET
$7.08¢3 538
1
#2
4P9-83591-00-00
THERMO UNIT
$34.40¢17 200
1
#3
B67-82501-10-00
MAIN SWITCH STEERING LOCK
$165.50¢82 750
1
#4
4BH-82511-09-00
BLANK KEY | AP
$29.11¢14 556
1
#5
36P-82552-00-00
CAP, SWITCH
$14.98¢7 488
1
#6
4AG-85111-00-00
REFLECTOR, FRONT 1
$15.25¢7 625
1
#7
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#8
2CR-85112-00-00
BRACKET, REFLECTOR 1
$25.07¢12 538
1
#9
2CR-85122-00-00
BRACKET, REFLECTOR 2
$29.34¢14 669
1
#10
B67-83371-00-00
HORN
$79.01¢39 506
1
#11
95812-06012-00
BOLT, FLANGE (replaces 95802-06012-00)
No Disponible
1
#12
B67-8591A-51-00
ENGINE CONTROL UNIT ASSY
$2475.60¢1 237 800
1
#13
B67-82310-00-00
IGNITION COIL ASSY
$154.24¢77 119
1
#14
2CR-85899-10-00
SENSOR, GEAR POSITION
$130.10¢65 050
1
#15
93210-17008-00
O-RING
$2.16¢1 081
1
#16
90110-05067-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#17
1WS-82504-00-00
OIL PRESSURE SWITC
$72.81¢36 406
1
#18
5VY-85896-02-00
SENSOR, CAM POSITION (replaces 5VY-85896-01-00)
$151.31¢75 656
1
#19
4D9-81168-00-00
O-RING
$5.15¢2 575
1
#20
90110-06175-00
BOLT, HEXAGON SOCKET HEAD
$2.44¢1 219
1
#21
3GB-82540-01-00
NEUTRAL SWITCH ASSY
$62.85¢31 425
1
#22
90430-10148-00
Gasket
$5.66¢2 831
1
#23
5PS-82576-01-00
SENSOR, LEAN ANGLE
$95.25¢47 625
1
#24
91312-04025-00
BOLT
$1.84¢919
1
#25
90201-04030-00
WASHER, PLATE
$1.80¢900
1
#26
90183-04039-00
NUT, SPRING
$7.03¢3 513
1
#27
5YU-85886-00-00
SENSOR, AIR TEMPERATURE
$35.84¢17 919
1
#28
97702-50516-00
SCREW, TAPPING
$1.75¢875
1
#29
5DM-81950-01-00
RELAY ASSY (replaces 5DM-81950-00-00)
$29.46¢14 731
1
#30
B67-8254B-01-00
TERMINAL COMP.
$72.02¢36 012
1
