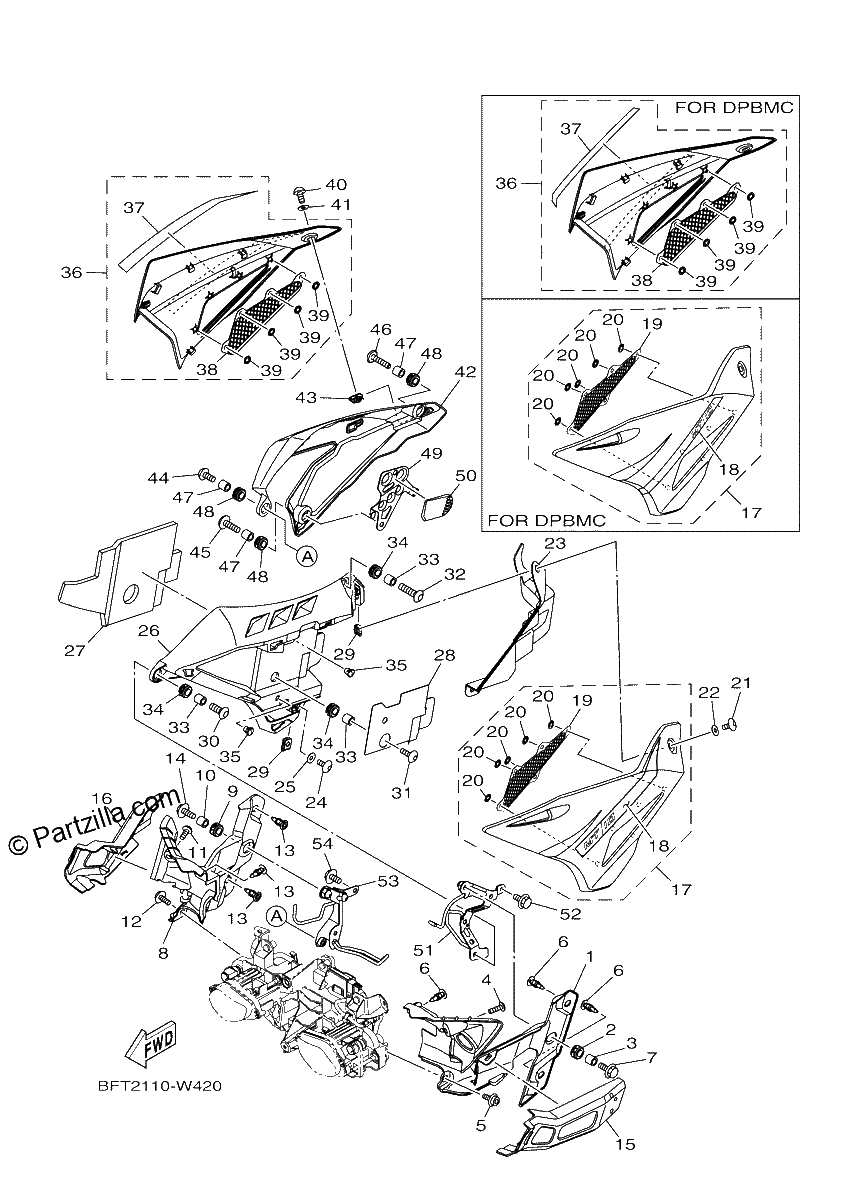

COWLING 3
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PANEL, INNER 3
$18.10¢9 050
#2
GROMMET
$7.43¢3 713
#3
COLLAR
$7.43¢3 713
#4
SCREW, TAPPING
$2.11¢1 056
#5
BOLT, HEXAGON SOCKET HEAD
$6.35¢3 175
#6
RIVET
$6.45¢3 225
#7
Bolt, Flange
$1.79¢894
#8
PANEL, INNER 4
$18.10¢9 050
#9
GROMMET
$7.43¢3 713
#10
COLLAR
$7.43¢3 713
#11
SCREW, TAPPING
$2.11¢1 056
#12
BOLT, HEXAGON SOCKET HEAD
$6.35¢3 175
#13
RIVET
$6.45¢3 225
#14
Bolt, Flange
$1.79¢894
#15
STAY, SIDE 1
$47.35¢23 675
#16
STAY, SIDE 1
$47.35¢23 675
#17
COVER 1 (DEEP PURPLISH BLUE METALLIC C)
$203.78¢101 888
#18
.. GRAPHIC 1 (DEEP PURPLISH BLUE METALLIC C)
$10.81¢5 406
#19
GRILL, AIR OUTLET 1
$20.29¢10 144
#20
NUT, SPRING
$0.50¢250
#21
BOLT,HEX. SOCKET BUTTON
$2.55¢1 275
#22
WASHER, PLATE
$7.66¢3 831
#23
COVER 3
$28.35¢14 175
#24
BOLT,HEX. SOCKET BUTTON
$2.55¢1 275
#25
WASHER, PLATE
$7.66¢3 831
#26
BRACKET 1
$52.36¢26 181
#27
DAMPER 1
$44.23¢22 113
#28
SHEET 1
$6.69¢3 344
#29
NUT, SPRING
$2.82¢1 412
#30
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
#31
BOLT, HEX. SOCKET BUTTON
$5.86¢2 931
#32
BOLT, HEX. SOCKET BUTTON
$3.98¢1 988
#33
COLLAR
$7.43¢3 713
#34
GROMMET
$7.43¢3 713
#35
PLUG
$6.76¢3 381
#36
COVER 2 (DEEP PURPLISH BLUE METALLIC C)
$291.94¢145 969
#37
.. GRAPHIC 2 (DEEP PURPLISH BLUE METALLIC C)
$10.81¢5 406
#38
GRILL, AIR OUTLET 2
$28.85¢14 425
#39
NUT, SPRING
$0.50¢250
#40
BOLT,HEX. SOCKET BUTTON
$2.55¢1 275
#41
WASHER, PLATE
$7.66¢3 831
#42
BRACKET 2
$52.31¢26 156
#43
NUT, SPRING
$2.82¢1 412
#44
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
#45
BOLT, HEX. SOCKET BUTTON
$5.86¢2 931
#46
BOLT, HEX. SOCKET BUTTON
$3.98¢1 988
#47
COLLAR
$7.43¢3 713
#48
GROMMET
$7.43¢3 713
#49
BRACKET 12
$16.32¢8 163
#50
Damper
$12.06¢6 031
#51
BRACKET 1
$80.34¢40 169
#52
Bolt, Flange
$1.79¢894
#53
BRACKET 2
$68.78¢34 388
#54
Bolt, Flange
$1.79¢894
