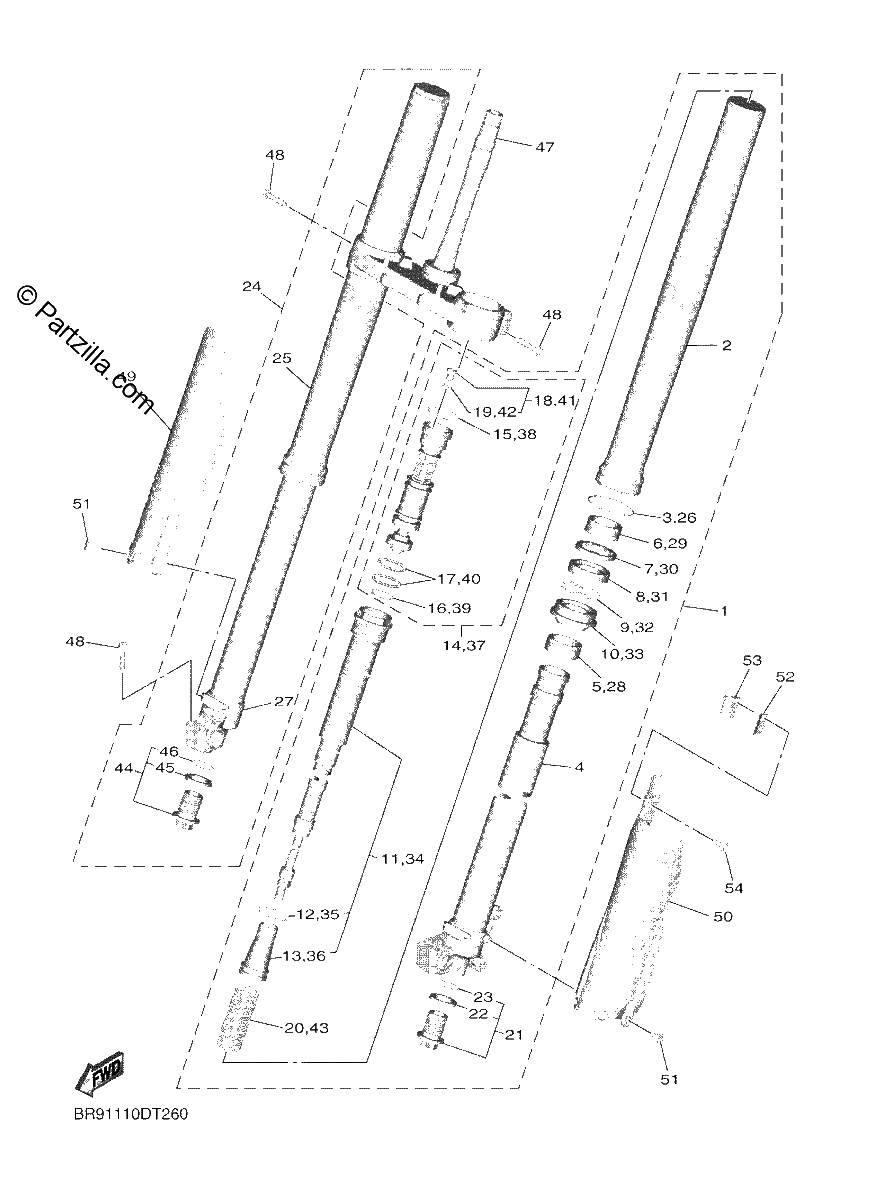

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$1317.89¢658 944
#2
TUBE, OUTER
$822.24¢411 119
#3
RING, SNAP
$4.58¢2 289
#4
INNER TUBE COMP.2
$436.02¢218 011
#5
PISTON, FRONT FORK
$22.67¢11 333
#6
METAL, SLIDE 1
$23.02¢11 511
#7
WASHER, OIL SEAL
$11.60¢5 802
#8
Oil Seal
$21.75¢10 873
#9
RING, SNAP
$7.04¢3 519
#10
SEAL, DUST
$21.11¢10 557
#11
. CYLINDER COMP, FRONT FORK
$640.54¢320 269
#12
O-RING
$3.51¢1 754
#13
SEAT, SPRING UPPER
$55.67¢27 836
#14
. VALVE COMP
$388.12¢194 062
#15
O-RING
$3.00¢1 501
#16
O-RING
$6.51¢3 254
#17
. O-RING
$8.14¢4 071
#18
AIR VALVE COMP.
$21.98¢10 988
#19
O-RING
$3.00¢1 501
#20
SPRING, FRONT FORK (K=4.7)
$133.46¢66 729
#21
BOLT, CAP
$75.81¢37 904
#22
GASKET
$10.43¢5 215
#23
. . ..GASKET
$4.25¢2 128
#24
FRONT FORK ASSY (R.H)
$1317.89¢658 944
#25
TUBE, OUTER
$822.24¢411 119
#26
RING, SNAP
$4.58¢2 289
#27
INNER TUBE COMP.1
$436.02¢218 011
#28
PISTON, FRONT FORK
$22.67¢11 333
#29
METAL, SLIDE 1
$23.02¢11 511
#30
WASHER, OIL SEAL
$11.60¢5 802
#31
Oil Seal
$21.75¢10 873
#32
RING, SNAP
$7.04¢3 519
#33
SEAL, DUST
$21.11¢10 557
#34
. CYLINDER COMP, FRONT FORK
$640.54¢320 269
#35
O-RING
$3.51¢1 754
#36
SEAT, SPRING UPPER
$55.67¢27 836
#37
. VALVE COMP
$388.12¢194 062
#38
O-RING
$3.00¢1 501
#39
O-RING
$6.51¢3 254
#40
. O-RING
$8.14¢4 071
#41
AIR VALVE COMP.
$21.98¢10 988
#42
O-RING
$3.00¢1 501
#43
SPRING, FRONT FORK (K=4.7)
$133.46¢66 729
#44
BOLT, CAP
$75.81¢37 904
#45
GASKET
$10.43¢5 215
#46
. . ..GASKET
$4.25¢2 128
#47
UNDER BRACKET COMP.
$542.79¢271 394
#48
BOLT, FLANGE DEEP RECESS
$2.70¢1 351
#49
PROTECTOR 2
$15.21¢7 607
#50
PROTECTOR 1
$15.21¢7 607
#51
BOLT
$3.61¢1 805
#52
CLAMP
$18.14¢9 068
#53
CLAMP
$24.83¢12 414
#54
BOLT, FLANGE
$4.65¢2 323
