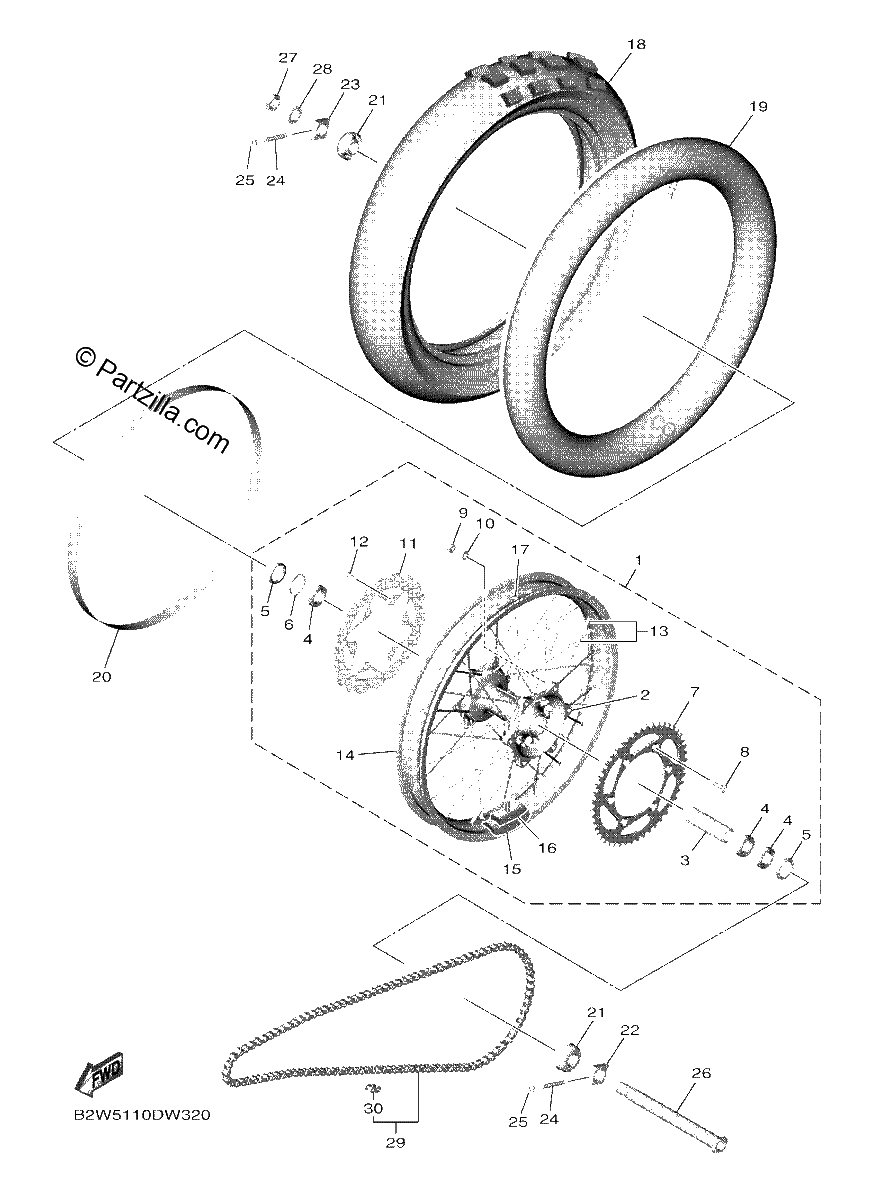

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
REAR WHEEL SUB-ASSY
$929.99¢464 994
#2
Hub, Rear
$351.10¢175 550
#3
SPACER, bearing
$46.33¢23 163
#4
BEARING
$47.27¢23 638
#5
. OIL SEAL
$19.44¢9 719
#6
Circlip
$7.43¢3 713
#7
SPROCKET, DRIVEN (48T)
$108.60¢54 300
#7
SPROCKET, DRIVEN (50T)
$95.88¢47 938
#7
SPROCKET, DRIVEN (51T)
$112.49¢56 244
#7
SPROCKET, DRIVEN (52T)
$112.49¢56 244
#7
SPROCKET, DRIVEN (49T)
$85.10¢42 550
#7
SPROCKET, DRIVEN (47T)
$85.10¢42 550
#8
bolt
$3.39¢1 694
#9
NUT, SELF-LOCKING
$7.16¢3 581
#10
WASHER, plate
$6.88¢3 438
#11
DISK, REAR BRAKE 2
$139.01¢69 506
#12
SCREW, COUNTERSUNK
$3.17¢1 588
#13
SPOKE SET, REAR
$215.81¢107 906
#14
RIM (1.85-19)
$424.09¢212 044
#15
SPACER,BEAD
$63.74¢31 869
#16
Damper
$7.91¢3 956
#17
GROMMET
$8.06¢4 031
#18
TIRE (100/90-19 57M X20R)
$162.49¢81 244
#19
TUBE (80/100-19 M/C TR4)
$50.51¢25 256
#20
BAND, RIM (1.85-19)
$14.90¢7 450
#21
COLLAR ASSY
$41.14¢20 569
#22
PULLER, CHAIN 1
$34.84¢17 419
#23
PULLER, CHAIN 2
$31.69¢15 844
#24
bolt
$8.01¢4 006
#25
Nut
$6.23¢3 113
#26
AXLE, WHEEL
$94.56¢47 281
#27
NUT, SELF-LOCKING
$32.30¢16 150
#28
WASHER, plate
$7.03¢3 513
#29
CHAIN(DID520DMA4 SDH G&B L114)
$171.00¢85 500
#30
JOINT, CHAIN
$7.65¢3 825
