CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

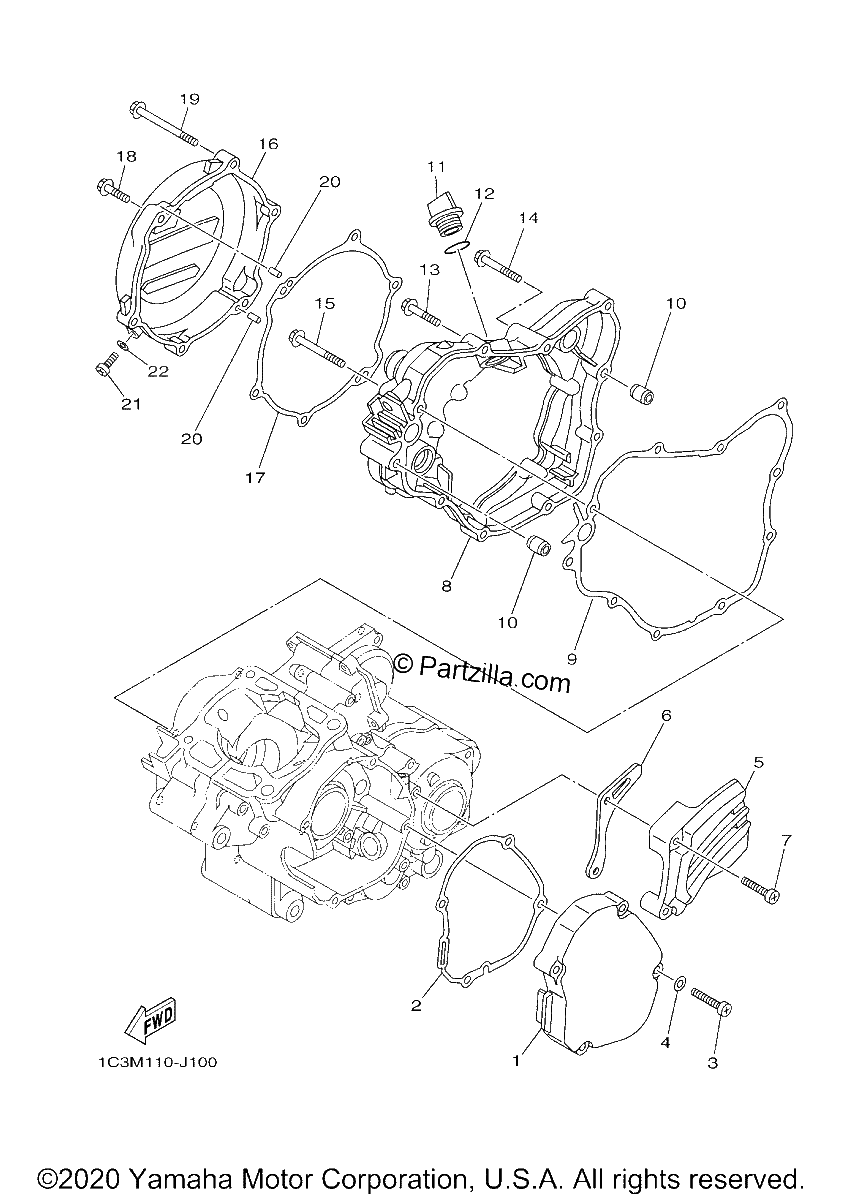

Diagrama de CRANKCASE COVER 1

Repuestos

#1
1C3-15411-10-00
COVER, CRANKCASE 1
$45.55¢22 775
1
#2
1C3-15451-00-00
GASKET, CRANKCASE COVER 1
$16.25¢8 125
1
#3
97885-06030-00
SCREW, PAN HEAD
$5.53¢2 763
1
#4
92990-06600-00
WASHER, PLATE
$3.40¢1 700
1
#5
1C3-15421-10-00
COVER, CRANKCASE 2
$70.30¢35 150
1
#6
1C3-17466-00-00
GUIDE, CHAIN
$12.89¢6 444
1
#7
98502-06030-00
SCREW, PAN HEAD
$1.47¢737
1
#8
1C3-15431-01-00
COVER, CRANKCASE 3
$159.22¢79 613
1
#9
1C3-15462-00-00
GASKET, CRANKCASE COVER 3
$17.96¢8 981
1
#10
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#11
3Y1-15363-10-00
PLUG, OIL
$20.35¢10 175
1
#12
93210-19123-00
O-Ring
$8.24¢4 119
1
#13
95022-06030-00
BOLT, FLANGE
$1.68¢838
1
#14
95022-06040-00
Bolt, Flange
$3.57¢1 787
1
#15
95022-06050-00
BOLT, FLANGE
$1.70¢850
1
#16
1C3-15415-10-00
COVER, 1
$122.94¢61 469
1
#17
1C3-15463-00-00
GASKET, 2
$18.04¢9 019
1
#18
95022-06065-00
BOLT, FLANGE
$2.11¢1 056
1
#19
95022-06025-00
BOLT, FLANGE
$1.75¢875
1
#20
93604-10011-00
PIN, DOWEL
$6.25¢3 125
1
#21
92012-06012-00
BOLT, BUTTON HEAD
$2.97¢1 487
1
#22
90430-06014-00
GASKET
$8.25¢4 125
1
