INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

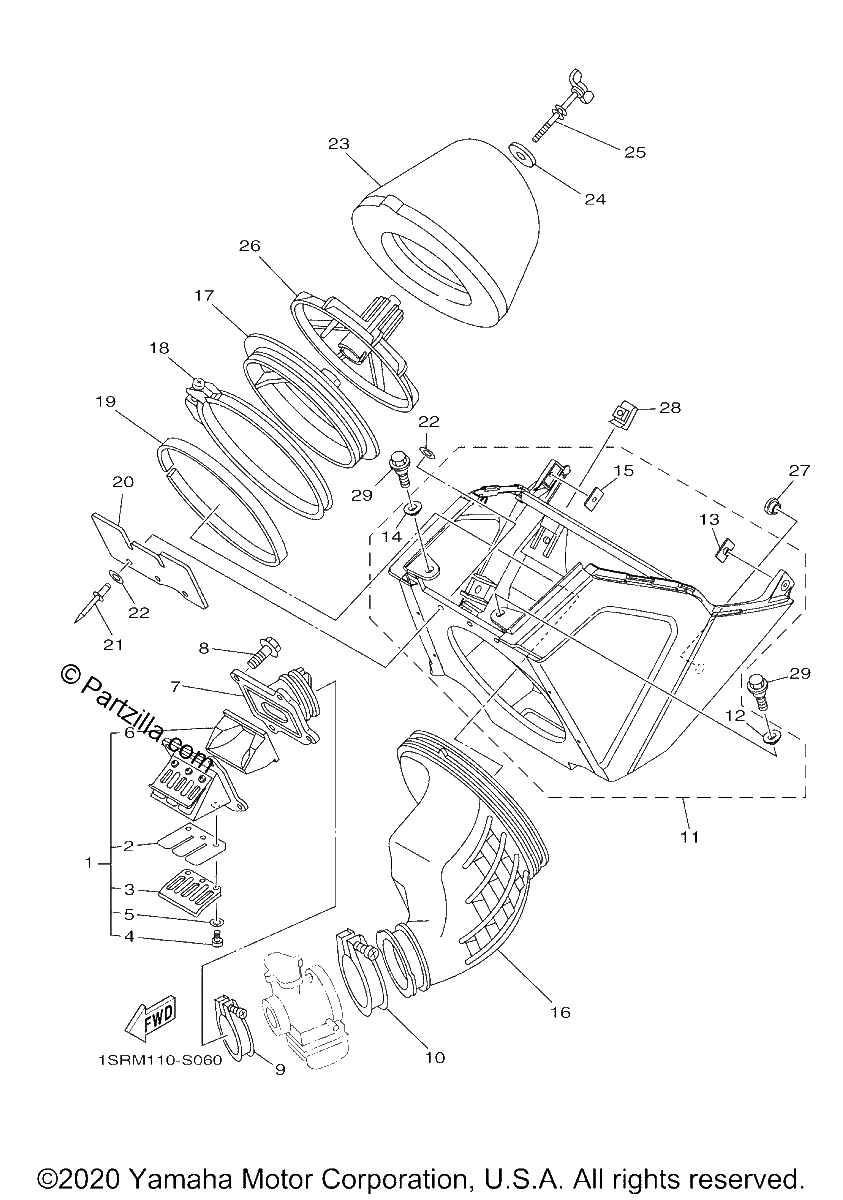

Diagrama de INTAKE

Repuestos

#1
1C3-13610-20-00
REED VALVE ASSY
$355.41¢177 704
1
#2
5UN-13613-00-00
REED, VALVE
$124.23¢62 117
1
#3
5MV-13616-10-00
STOPPER, REED VALVE
$7.89¢3 944
1
#4
98580-03006-00
SCREW, PAN HEAD
$7.58¢3 789
1
#5
92990-03100-00
WASHER, SPRING
$6.75¢3 375
1
#6
1C3-13625-10-00
SPACER, REED VALVE
$49.21¢24 604
1
#7
1C3-13565-00-00
JOINT, CARBURETOR
$67.86¢33 931
1
#8
95022-06020-00
BOLT, FLANGE
$3.65¢1 823
1
#9
90450-54007-00
HOSE CLAMP ASSY
$13.47¢6 733
1
#10
90450-70002-00
HOSE CLAMP ASSY
$19.86¢9 930
1
#11
1SS-14401-00-00
AIR CLEANER CASE ASSY
$218.15¢109 077
1
#12
17D-14449-00-00
Collar
$7.38¢3 691
1
#13
5XE-21635-10-00
NUT, REAR FENDER
$13.90¢6 952
1
#14
17D-14449-00-00
Collar
$7.38¢3 691
1
#15
5XE-21635-10-00
NUT, REAR FENDER
$13.90¢6 952
1
#16
1C3-14453-11-00
JOINT, AIR CLEANER 1
$71.56¢35 782
1
#17
5NY-14459-00-00
HOLDER, GUIDE
$35.35¢17 675
1
#18
5NY-14455-20-00
BAND
$38.34¢19 171
1
#19
5NY-14442-00-00
SPACER
$22.38¢11 189
1
#20
5NY-14417-01-00
COVER 1
$15.08¢7 538
1
#21
90267-32070-00
RIVET, BLIND
$2.44¢1 219
1
#22
90201-03313-00
WASHER, PLATE
$7.01¢3 507
1
#23
4XM-14451-01-00
ELEMENT, AIR CLEANER
$41.05¢20 528
1
#24
90209-06096-00
WASHER
$7.19¢3 594
1
#25
90122-06005-00
BOLT, WING
$7.53¢3 766
1
#26
3JD-14458-01-00
GUIDE
$69.56¢34 782
1
#27
90480-10M28-00
GROMMET
$3.29¢1 644
1
#28
90183-06023-00
NUT,SPRING
$8.14¢4 071
1
#29
90105-06170-00
BOLT, FLANGE
$4.65¢2 323
1
