CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

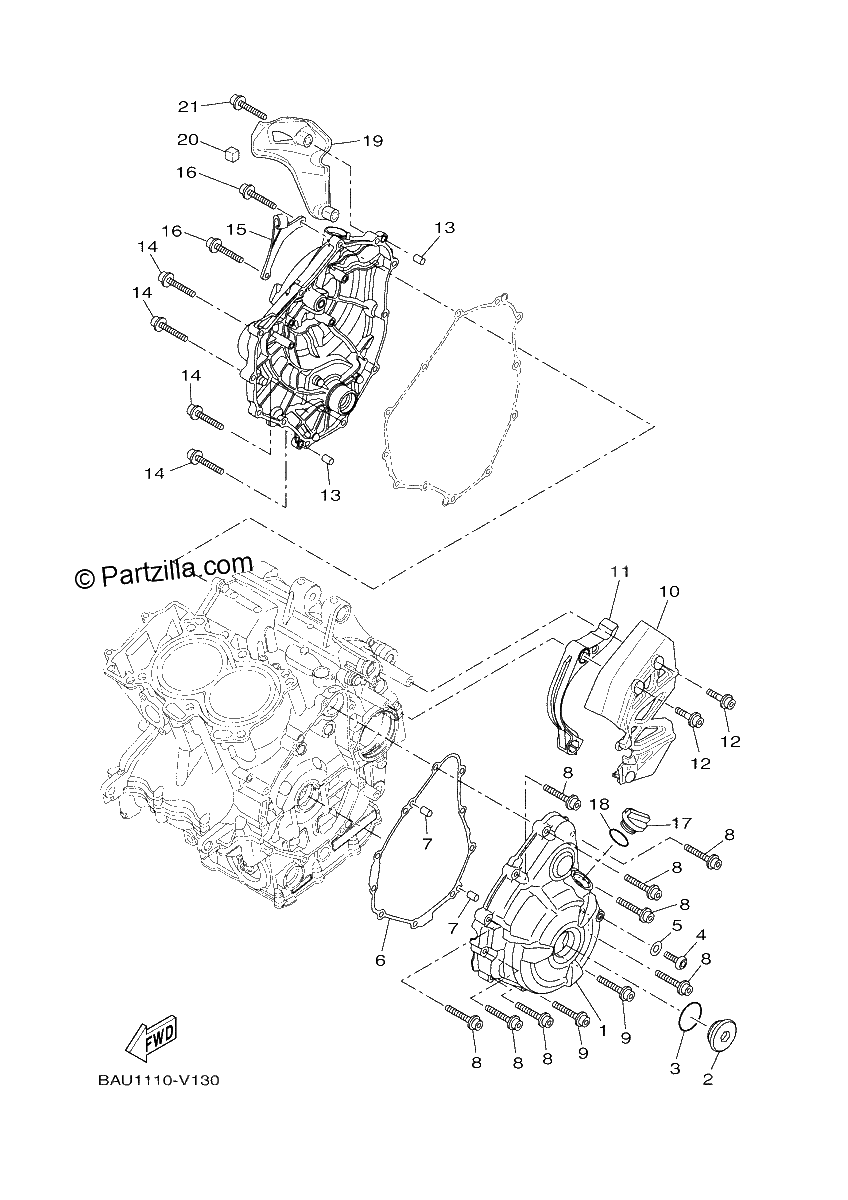

Diagrama de CRANKCASE COVER 1

Repuestos

#1
1WS-15411-00-00
COVER, CRANKCASE 1
$131.45¢65 725
1
#2
90340-36005-00
PLUG, STRAIGHT SCREW
$30.80¢15 400
1
#3
93210-357A3-00
O-RING
$0.59¢294
1
#4
92017-08012-00
BOLT, BUTTON HEAD
$7.35¢3 675
1
#5
90430-08143-00
GASKET
$3.67¢1 838
1
#6
1WS-15451-00-00
Gasket, Crankcase
$21.74¢10 869
1
#7
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#8
90110-06388-00
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 919
1
#9
90110-06389-00
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 919
1
#10
BW3-E5418-00-00
COVER, CHAIN CASE
$85.81¢42 906
1
#11
1WS-15377-00-00
GUIDE, INLET
$33.69¢16 844
1
#12
90110-06395-00
BOLT, HEXAGON SOCKET HEAD
$2.97¢1 487
1
#13
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#14
90110-06388-00
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 919
1
#15
1WS-15441-00-00
HOLDER, CLUTCH CAB
$16.27¢8 137
1
#16
90110-06389-00
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 919
1
#17
3F9-15362-10-00
PLUG, OIL LEVEL
$22.93¢11 463
1
#18
93210-27194-00
O-Ring
$8.21¢4 106
1
#19
BW3-15499-00-00
PROTECTOR, COVER
$59.60¢29 800
1
#20
90520-10010-00
DAMPER, PLATE
$1.80¢900
1
#21
90110-06049-00
BOLT, HEXAGON SOCKET HEAD
$2.97¢1 487
1
