FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

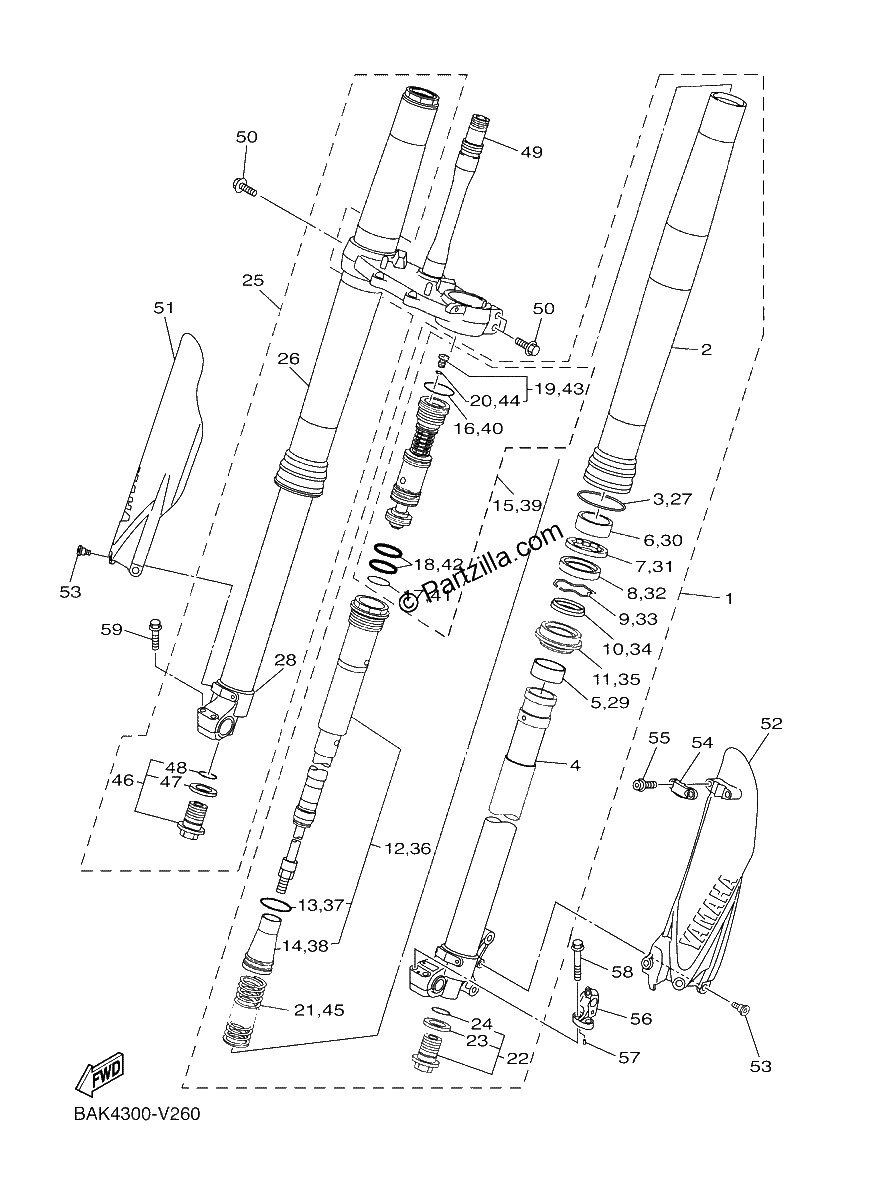

Diagrama de FRONT FORK

Repuestos

#1
BAK-23102-00-00
FRONT FORK ASSY (L.H)
$1299.49¢649 744
1
#2
33D-23136-00-00
TUBE, OUTER
$822.24¢411 119
1
#3
17D-23153-00-00
RING, SNAP
$4.58¢2 289
1
#4
B7R-23120-00-00
INNER TUBE COMP.2
$423.61¢211 807
1
#5
5XE-23171-L0-00
PISTON, FRONT FORK
$22.67¢11 333
1
#6
5XE-23125-L0-00
METAL, SLIDE 1
$23.02¢11 511
1
#7
5XC-23146-10-00
WASHER, OIL SEAL
$11.60¢5 802
1
#8
B29-23145-00-00
Oil Seal
$21.75¢10 873
1
#9
5XE-23153-L0-00
RING, SNAP
$7.04¢3 519
1
#10
B29-4381D-00-00
SCRAPER
$18.14¢9 068
1
#11
5XE-23144-L0-00
SEAL, DUST
$21.11¢10 557
1
#12
B3J-23170-20-00
CYLINDER COMP., front fork
$745.19¢372 594
1
#13
1C3-23147-L0-00
O-RING
$3.51¢1 754
1
#14
BR9-23142-01-00
SEAT, SPRING UPPER
$55.67¢27 836
1
#15
BAK-2316A-00-00
VALVE COMP.
$354.83¢177 416
1
#16
1C3-23188-L0-00
O-RING
$3.00¢1 501
1
#17
1C3-23188-P0-00
O-RING
$6.51¢3 254
1
#18
1AE-23147-00-00
. O-RING
$8.14¢4 071
1
#19
1C3-23190-L0-00
AIR VALVE COMP.
$21.98¢10 988
1
#20
1C3-23188-R0-00
O-RING
$3.00¢1 501
1
#21
BR9-23141-30-00
SPRING, FRONT FORK (K=4.6)
$133.46¢66 729
1
#22
5XC-23111-00-00
BOLT, CAP
$75.81¢37 904
1
#23
2HH-23158-L0-00
GASKET
$10.43¢5 215
1
#24
276-23114-00-00
GASKET
$4.25¢2 128
1
#25
BAK-23103-00-00
FRONT FORK ASSY (R.H)
$1299.49¢649 744
1
#26
33D-23136-00-00
TUBE, OUTER
$822.24¢411 119
1
#27
17D-23153-00-00
RING, SNAP
$4.58¢2 289
1
#28
B7R-23110-00-00
INNER TUBE COMP.1
$469.06¢234 531
1
#29
5XE-23171-L0-00
PISTON, FRONT FORK
$22.67¢11 333
1
#30
5XE-23125-L0-00
METAL, SLIDE 1
$23.02¢11 511
1
#31
5XC-23146-10-00
WASHER, OIL SEAL
$11.60¢5 802
1
#32
B29-23145-00-00
Oil Seal
$21.75¢10 873
1
#33
5XE-23153-L0-00
RING, SNAP
$7.04¢3 519
1
#34
B29-4381D-00-00
SCRAPER
$18.14¢9 068
1
#35
5XE-23144-L0-00
SEAL, DUST
$21.11¢10 557
1
#36
B3J-23170-20-00
CYLINDER COMP., front fork
$745.19¢372 594
1
#37
1C3-23147-L0-00
O-RING
$3.51¢1 754
1
#38
BR9-23142-01-00
SEAT, SPRING UPPER
$55.67¢27 836
1
#39
BAK-2316A-00-00
VALVE COMP.
$354.83¢177 416
1
#40
1C3-23188-L0-00
O-RING
$3.00¢1 501
1
#41
1C3-23188-P0-00
O-RING
$6.51¢3 254
1
#42
1AE-23147-00-00
. O-RING
$8.14¢4 071
1
#43
1C3-23190-L0-00
AIR VALVE COMP.
$21.98¢10 988
1
#44
1C3-23188-R0-00
O-RING
$3.00¢1 501
1
#45
BR9-23141-30-00
SPRING, FRONT FORK (K=4.6)
$133.46¢66 729
1
#46
5XC-23111-00-00
BOLT, CAP
$75.81¢37 904
1
#47
2HH-23158-L0-00
GASKET
$10.43¢5 215
1
#48
276-23114-00-00
GASKET
$4.25¢2 128
1
#49
B7R-23340-00-00
UNDER BRACKET COMP.
$678.97¢339 486
1
#50
95E34-08035-00
BOLT, FLANGE DEEP RECESS
$2.70¢1 351
1
#51
17D-2315J-H0-00
PROTECTOR 2
$15.21¢7 607
1
#52
B7R-2315H-10-00
PROTECTOR 1
$17.12¢8 562
1
#53
90109-06232-00
BOLT
$3.61¢1 805
1
#54
B7R-23466-00-00
Clamp
$26.24¢13 122
1
#55
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#56
B7R-83955-00-00
BRACKET 1
$56.75¢28 376
1
#57
93603-07073-00
PIN, DOWEL
$6.41¢3 203
1
#58
95E34-08045-00
BOLT, FLANGE DEEP RECESS
$2.60¢1 299
1
#59
95E34-08035-00
BOLT, FLANGE DEEP RECESS
$2.70¢1 351
1
