SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

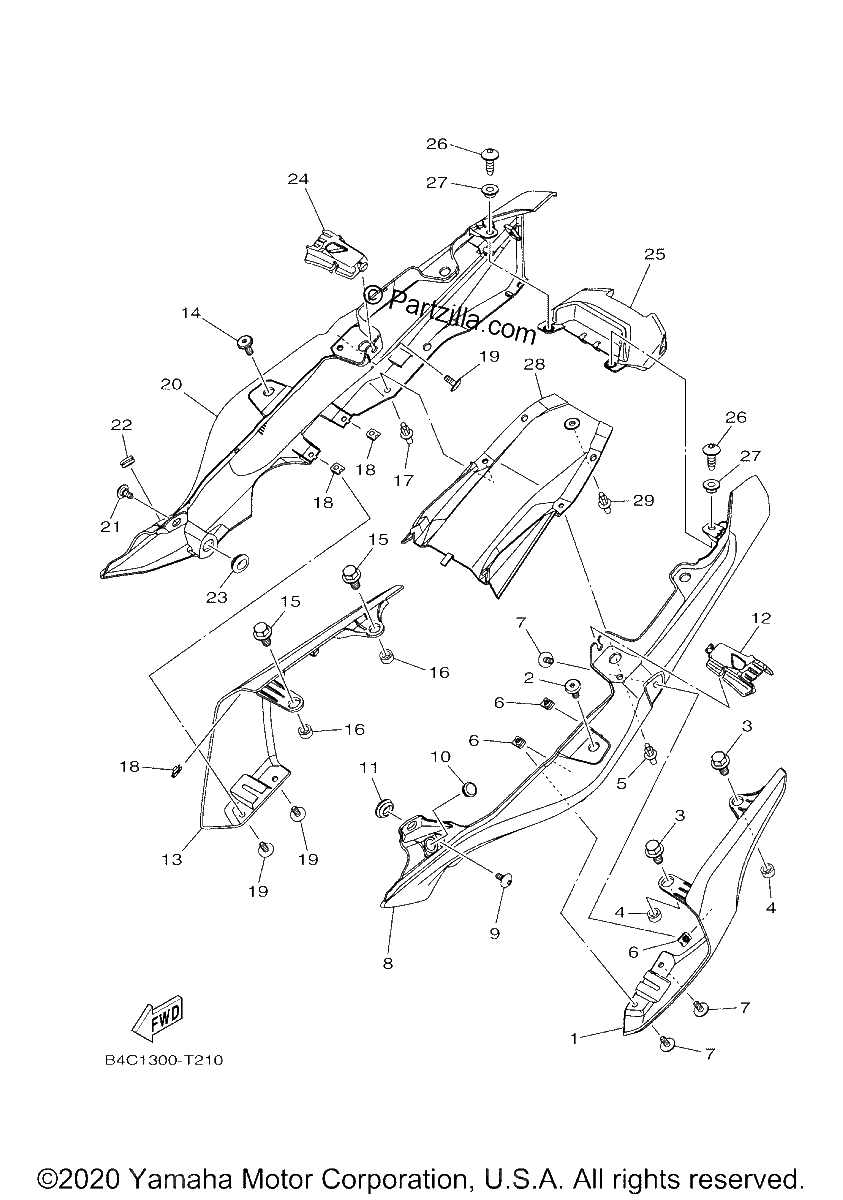

Diagrama de SIDE COVER

Repuestos

#1
B4C-21711-00-P5
COVER, SIDE 1
$62.16¢31 079
1
#1
B4C-21711-00-P3
COVER, SIDE 1
$75.96¢37 979
1
#1
B4C-21711-00-P1
COVER, SIDE 1
$67.86¢33 931
1
#2
90109-06259-00
bolt
$3.08¢1 541
1
#3
90105-08021-00
BOLT, FLANGE
$6.87¢3 433
1
#4
90387-08088-00
Collar
$1.69¢845
1
#5
90269-06008-00
RIVET
$8.10¢4 048
1
#6
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#7
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#8
B4C-2171E-00-00
COVER, SIDE 5
$62.33¢31 165
1
#9
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$4.77¢2 386
1
#10
90480-14100-00
GROMMET
$7.07¢3 536
1
#11
90480-01559-00
Grommet
$5.27¢2 633
1
#12
B4C-2171L-00-00
MOLE, SIDE COVER 1
$7.91¢3 956
1
#13
B4C-21721-00-P3
COVER, SIDE 2
$75.96¢37 979
1
#13
B4C-21721-00-P5
COVER, SIDE 2
$75.96¢37 979
1
#13
B4C-21721-00-P1
COVER, SIDE 2
$71.20¢35 598
1
#14
90109-06259-00
bolt
$3.08¢1 541
1
#15
90105-08021-00
BOLT, FLANGE
$6.87¢3 433
1
#16
90387-08088-00
Collar
$1.69¢845
1
#17
90269-06008-00
RIVET
$8.10¢4 048
1
#18
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#19
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#20
B4C-2171X-00-00
COVER, SIDE 6
$62.33¢31 165
1
#21
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$4.77¢2 386
1
#22
90480-14100-00
GROMMET
$7.07¢3 536
1
#23
90480-01559-00
Grommet
$5.27¢2 633
1
#24
B4C-2171M-00-00
MOLE, SIDE COVER 2
$7.59¢3 795
1
#25
B4C-2172X-00-00
Cover, Taillight
$19.53¢9 763
1
#26
90167-05076-00
SCREW, TAPPING
$1.94¢972
1
#27
90387-05021-00
COLLAR
$6.87¢3 433
1
#28
1WS-21651-00-00
COVER, REAR FENDER
$141.82¢70 909
1
#29
90269-06008-00
RIVET
$8.10¢4 048
1
