CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

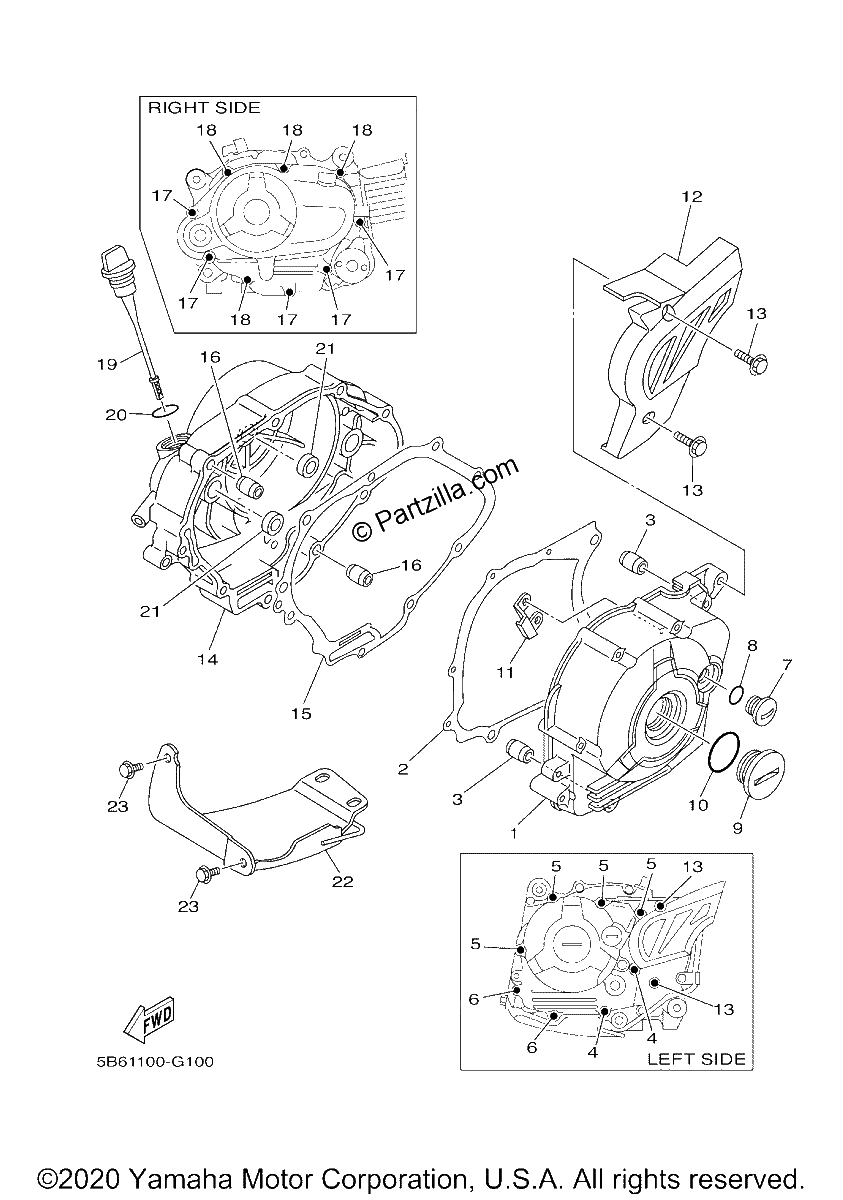

Diagrama de CRANKCASE COVER 1

Repuestos

#1
5B6-E5411-00-00
COVER, CRANKCASE 1
$477.60¢238 800
1
#2
3S0-E5451-00-00
GASKET, CRANKCASE COVER 1
$10.39¢5 194
1
#3
91810-14809-00
PIN, DOWEL
$3.01¢1 506
1
#4
95022-06040-00
Bolt, Flange
$3.57¢1 787
1
#5
95022-06050-00
BOLT, FLANGE
$1.70¢850
1
#6
95022-06080-00
BOLT, FLANGE (replaces 9502L-06080-00)
$4.20¢2 100
1
#7
90340-14812-00
PLUG, STRAIGHT SCREW
$9.79¢4 894
1
#8
93210-14369-00
O-Ring
$6.91¢3 456
1
#9
90340-32806-00
PLUG, STRAIGHT SCREW
$9.51¢4 756
1
#10
93210-32172-00
O-Ring
$6.88¢3 438
1
#11
5TP-E5113-00-00
PLATE
$0.76¢381
1
#12
5B6-15418-00-00
COVER, CHAIN CASE
$49.00¢24 500
1
#13
95022-06025-00
BOLT, FLANGE
$1.75¢875
1
#14
5B6-E5421-00-00
COVER, CRANKCASE 2
$177.73¢88 863
1
#15
4ST-E5461-11-00
GASKET, CRANKCASE COVER 2
$13.70¢6 850
1
#16
91810-14809-00
PIN, DOWEL
$3.01¢1 506
1
#17
95022-06040-00
Bolt, Flange
$3.57¢1 787
1
#18
95022-06050-00
BOLT, FLANGE
$1.70¢850
1
#19
5B6-E5362-00-00
PLUG, OIL LEVEL
$10.44¢5 219
1
#20
93210-19522-00
O-RING
$6.99¢3 494
1
#21
93101-10142-00
OIL SEAL
$7.31¢3 656
1
#22
5B6-E5436-00-00
COVER, STARTING MOTOR
$70.49¢35 244
1
#23
95817-08016-00
BOLT, FLANGE
$4.91¢2 456
1
