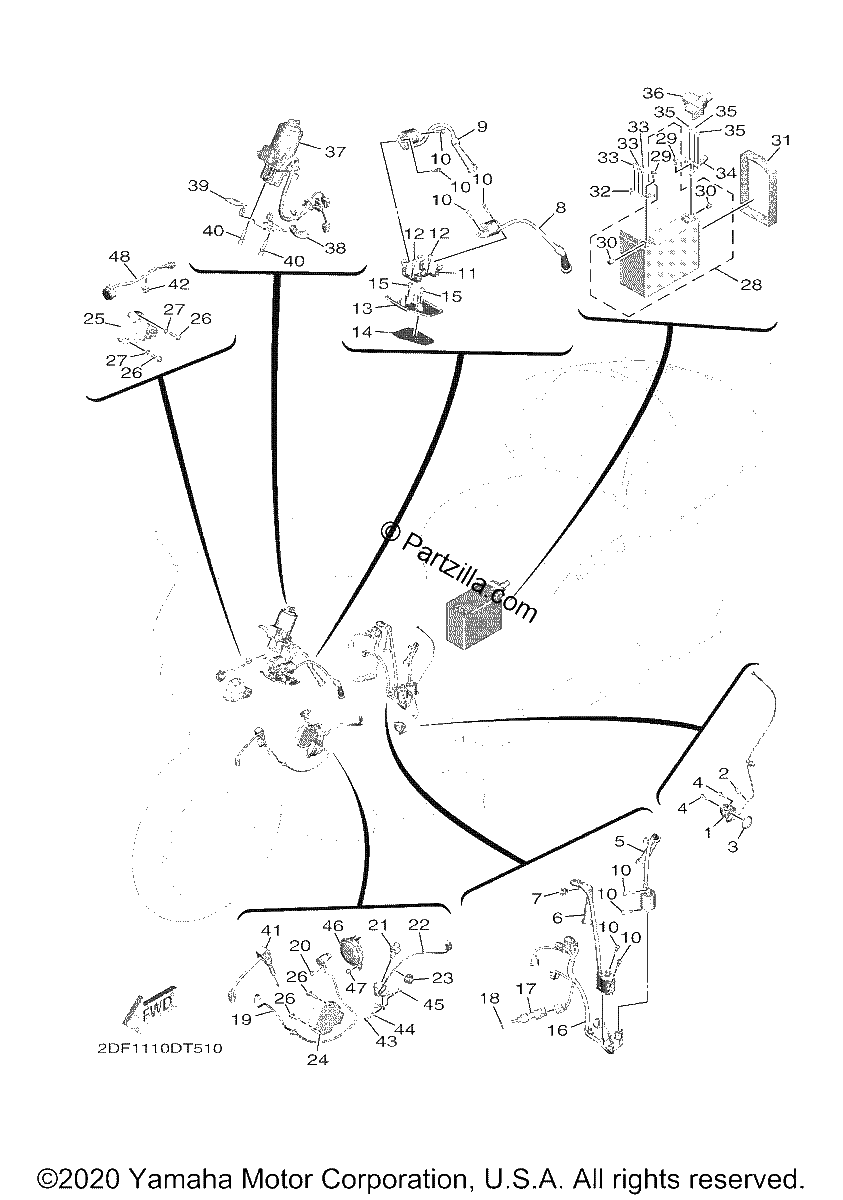

ELECTRICAL 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
NEUTRAL SWITCH ASSY
$45.34¢22 669
#2
CLAMP
$39.96¢19 981
#3
O-RING
$7.69¢3 844
#4
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
#5
IGN. COIL SUB-ASSY
$87.36¢43 681
#6
IGN. COIL SUB-ASSY
$97.33¢48 663
#7
CLAMP(3SK)
$7.60¢3 800
#8
IGN. COIL SUB-ASSY
$87.36¢43 681
#9
IGN. COIL SUB-ASSY
$71.36¢35 681
#10
BOLT, HEXAGON SOCKET HEAD
$8.39¢4 194
#11
BRACKET, COIL
$16.32¢8 163
#12
BOLT, BUTTON HEAD
$2.44¢1 219
#13
PLATE 2
$13.35¢6 675
#14
SHEET 1
$3.86¢1 931
#15
SCREW, TRUSS HEAD TAPPING
$7.35¢3 675
#16
LEAD WIRE ASSY
$92.58¢46 288
#17
THERMO UNIT
$217.76¢108 881
#18
WASHER,PLATE
$3.44¢1 719
#19
Sensor, Cam Position
$107.05¢53 525
#20
BOLT
$1.46¢731
#21
OIL PRESSURE SWITC
$72.81¢36 406
#22
LEAD WIRE ASSY
$45.30¢22 650
#23
CLAMP
$7.46¢3 731
#24
RECTIFIER REGULATOR ASSY
$178.46¢89 231
#25
RECTIFIER REGULATOR ASSY
$178.46¢89 231
#26
BOLT,FLANGE (replaces 90105-06125-00)
$1.75¢875
#27
WASHER, PLATE
$8.46¢4 231
#28
YTX20LBS YUASA BATT
No Disponible
#29
BOLT, SPECIAL
$13.73¢6 863
#30
Nut
$13.73¢6 863
#31
BAND, BATTERY
$14.00¢7 000
#32
TERMINAL 1
$19.07¢9 538
#33
SCREW, PAN HEAD
$7.64¢3 819
#34
TERMINAL
$25.95¢12 975
#35
SCREW, PAN HEAD
$7.64¢3 819
#36
CAP
$22.71¢11 356
#37
Main Switch Assy
$390.69¢195 344
#38
PROTECTER, WIRE HARNESS
$11.55¢5 775
#39
GUIDE, CABLE
$39.44¢19 719
#40
BOLT
$7.35¢3 675
#41
STOP SWITCH ASSY
$50.56¢25 281
#42
Clamp
$1.63¢813
#43
BOLT
$7.34¢3 669
#44
WASHER, PLATE
$0.96¢481
#45
NUT, HEXAGON (replaces 95307-05600-00)
$1.35¢675
#46
HORN
$43.67¢21 838
#47
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
#48
BUZZER
$41.84¢20 919
