CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

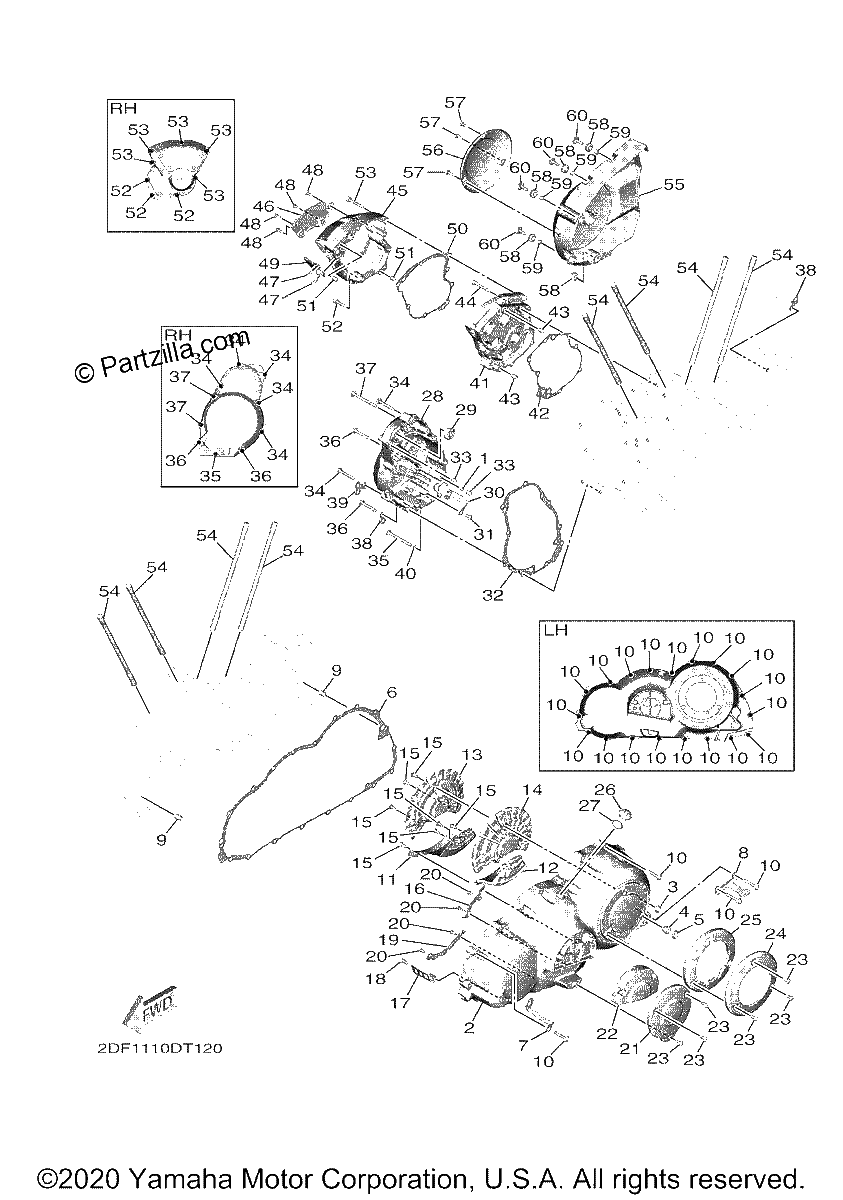

Diagrama de CRANKCASE COVER 1

Repuestos

#1
2DF-15148-00-00
NOZZLE 2
$4.35¢2 175
1
#2
2DF-15411-00-00
COVER, CRANKCASE 1
$235.23¢117 613
1
#3
93102-10008-00
Oil Seal
$5.54¢2 769
1
#4
93317-11295-00
BEARING
$47.73¢23 863
1
#5
93102-12224-00
OIL SEAL
$9.94¢4 969
1
#6
2DF-15451-00-00
GASKET, CRANKCASE COVER 1
$21.90¢10 950
1
#7
2DF-1546D-00-00
HOLDER, 2
$10.11¢5 056
1
#8
2DF-15759-00-00
CLIP, GUIDE
$7.06¢3 531
1
#9
99530-10114-00
PIN,DOWEL
$2.71¢1 356
1
#10
90110-06403-00
BOLT, HEXAGON SOCKET HEAD
$2.54¢1 269
1
#11
2DF-15113-00-00
PLATE
$39.08¢19 538
1
#12
2DF-1542B-00-00
DAMPER 2
$24.16¢12 081
1
#13
2DF-15589-00-00
PLATE
$36.23¢18 113
1
#14
2DF-1542A-00-00
DAMPER 1
$34.74¢17 369
1
#15
90149-06156-00
SCREW
$7.56¢3 781
1
#16
2DF-15142-00-00
GUIDE 1
$6.76¢3 381
1
#17
2DF-15484-00-00
CLAMP 2
$5.40¢2 700
1
#18
90149-06068-00
SCREW
$3.99¢1 994
1
#19
2DF-15143-00-00
Guide
$7.14¢3 569
1
#20
90149-05030-00
SCREW
$2.54¢1 269
1
#21
2DF-15425-00-00
COVER, GENERATOR 2
$88.06¢44 031
1
#22
2DF-15316-00-00
DAMPER 1
$24.66¢12 331
1
#23
90149-06191-00
Screw
$0.78¢388
1
#24
2DF-15415-00-00
COVER, 1
$73.05¢36 525
1
#25
2DF-1542C-00-00
DAMPER 3
$16.44¢8 219
1
#26
5PX-15189-00-00
PLUG
$30.84¢15 419
1
#27
93210-20003-00
O-RING
$7.48¢3 738
1
#28
2DF-15421-00-00
COVER, CRANKCASE 2
$102.27¢51 137
1
#29
93306-00004-00
BEARING
$38.96¢19 481
1
#30
2DF-15377-00-00
GUIDE, INLET
$8.64¢4 319
1
#31
90149-06156-00
SCREW
$7.56¢3 781
1
#32
2DF-15461-00-00
GASKET, CRANKCASE COVER 2
$4.04¢2 019
1
#33
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#34
90110-06418-00
BOLT, HEXAGON SOCKET HEAD
$1.69¢844
1
#35
90110-06420-00
BOLT, HEXAGON SOCKET HEAD
$2.76¢1 381
1
#36
90110-06417-00
BOLT, HEXAGON SOCKET HEAD
$1.69¢844
1
#37
90110-06419-00
BOLT, HEXAGON SOCKET HEAD
$2.76¢1 381
1
#38
2DF-15144-00-00
Plate, Lock
$3.23¢1 613
1
#39
2DF-1546C-00-00
HOLDER
$4.75¢2 375
1
#40
90430-06014-00
GASKET
$8.25¢4 125
1
#41
2DF-15430-00-00
CRANKCASE COVER ASSY 3
$116.19¢58 094
1
#42
2DF-15462-00-00
GASKET, CRANKCASE COVER 3
$5.66¢2 831
1
#43
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#44
90110-06423-00
BOLT, HEXAGON SOCKET HEAD
$2.76¢1 381
1
#45
2DF-15429-00-00
Cover, Shifter
$106.85¢53 425
1
#46
2DF-15427-00-00
COVER, CAP 2
$75.89¢37 944
1
#47
90111-05053-00
BOLT,HEX. SOCKET BUTTON (replaces 90111-05052-00)
$0.75¢375
1
#48
90111-05053-00
BOLT,HEX. SOCKET BUTTON (replaces 90111-05052-00)
$0.75¢375
1
#49
2DF-15499-00-00
PROTECTOR, COVER
$17.64¢8 819
1
#50
2DF-12286-00-00
GASKET, DECOMPRESSION
$4.35¢2 175
1
#51
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#52
90110-06413-00
BOLT, HEXAGON SOCKET HEAD
$0.83¢413
1
#53
90110-06423-00
BOLT, HEXAGON SOCKET HEAD
$2.76¢1 381
1
#54
90116-12020-00
BOLT, stud
$18.31¢9 156
1
#55
2DF-15426-01-00
COVER, OIL PUMP 2
$62.18¢31 088
1
#56
2DF-15779-00-00
Cover
$75.99¢37 994
1
#57
90169-05003-00
TAPPING SCREW
$2.50¢1 250
1
#58
90480-13018-00
GROMMET
$7.43¢3 713
1
#59
90387-0611W-00
COLLAR
$3.79¢1 894
1
#60
90111-06130-00
BOLT, HEX. SOCKET BUTTON
$4.49¢2 244
1
