FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

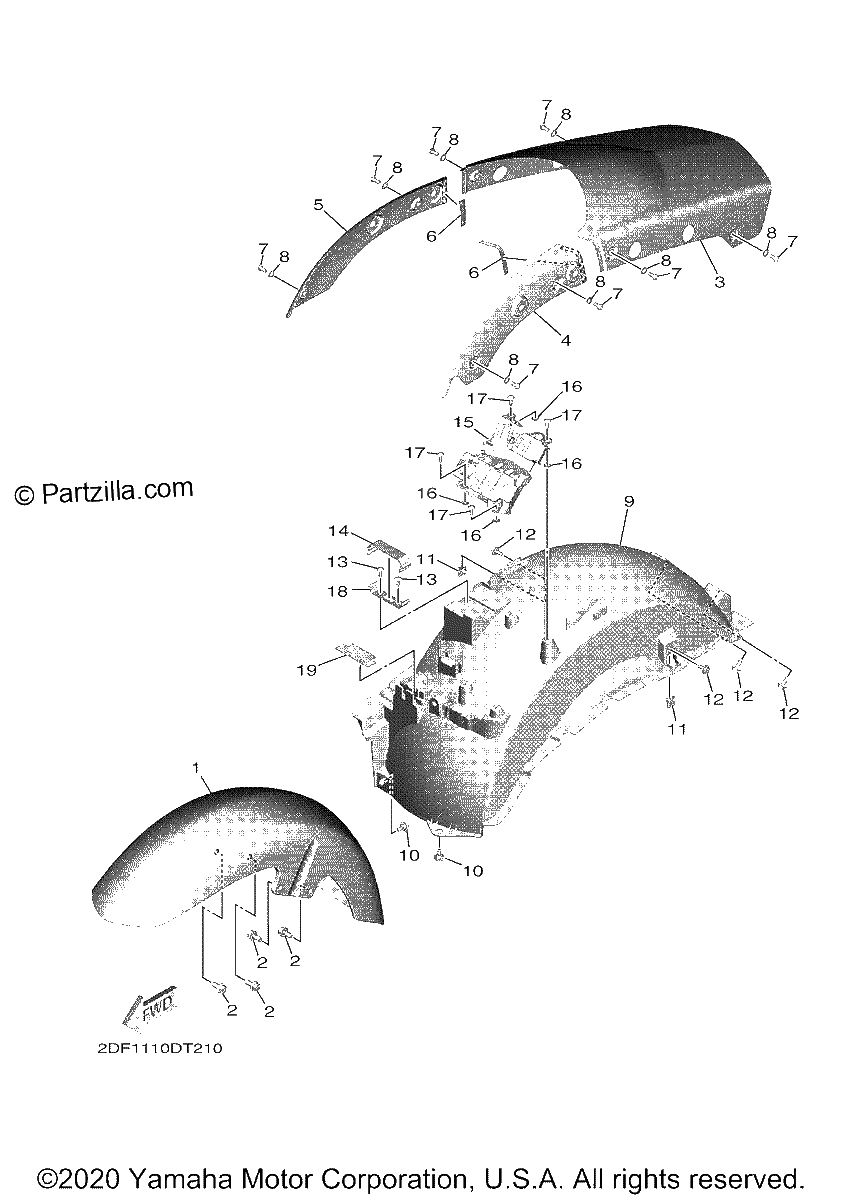

Diagrama de FENDER

Repuestos

#1
2DF-YK215-00-P3
FRONT FENDER COMP. (VIVID PURPLISH BLUE COCKTAIL 5)
$604.70¢302 350
1
#1
2DF-YK215-00-P0
FRONT FENDER COMP.
$711.42¢355 713
1
#2
95D32-08016-00
BOLT, FLANGE DEEP RECESS
$1.14¢569
1
#3
2DF-YK216-00-P0
REAR FENDER COMP.
$752.49¢376 244
1
#3
2DF-YK216-00-P3
REAR FENDER COMP. (VIVID PURPLISH BLUE COCKTAIL 5)
$752.49¢376 244
1
#4
2DF-YK263-00-P0
CLEAR STAY, FENDER 1
$329.64¢164 819
1
#4
2DF-YK263-00-P3
CLEAR STAY, FENDER 1 (VIVID PURPLISH BLUE COCKTAIL 5)
$372.60¢186 300
1
#5
2DF-YK264-00-P3
CLEAR STAY, FENDER 2 (VIVID PURPLISH BLUE COCKTAIL 5)
$372.60¢186 300
1
#5
2DF-YK264-00-P0
CLEAR STAY, FENDER 2
$329.64¢164 819
1
#6
13S-28237-00-00
DAMPER 3
$7.95¢3 975
1
#7
92014-06012-00
BOLT,BUTTON HEAD
$2.95¢1 475
1
#8
92990-06200-00
WASHER, PLAIN
$0.96¢481
1
#9
2DF-21629-00-00
GUARD, MUD
$176.08¢88 038
1
#10
90109-06322-00
bolt
$6.46¢3 231
1
#11
90183-06069-00
NUT, SPRING
$7.26¢3 631
1
#12
90119-06242-00
BOLT, WITH WASHER
$6.99¢3 494
1
#13
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#14
26L-82131-00-00
BAND, BATTERY | FOR CALIFORNIA
$8.39¢4 194
1
#15
2DF-21688-00-00
BRACKET, REAR STAY
$31.78¢15 888
1
#16
2DF-21616-00-00
WASHER, SPECIAL 2
$1.17¢587
1
#17
90269-05055-00
RIVET,SPEC'L SHAPE
$8.34¢4 169
1
#18
2DF-2161A-00-00
BRACKET 3
$6.76¢3 381
1
#19
2DF-21669-00-00
SEAL
$2.97¢1 487
1
