INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

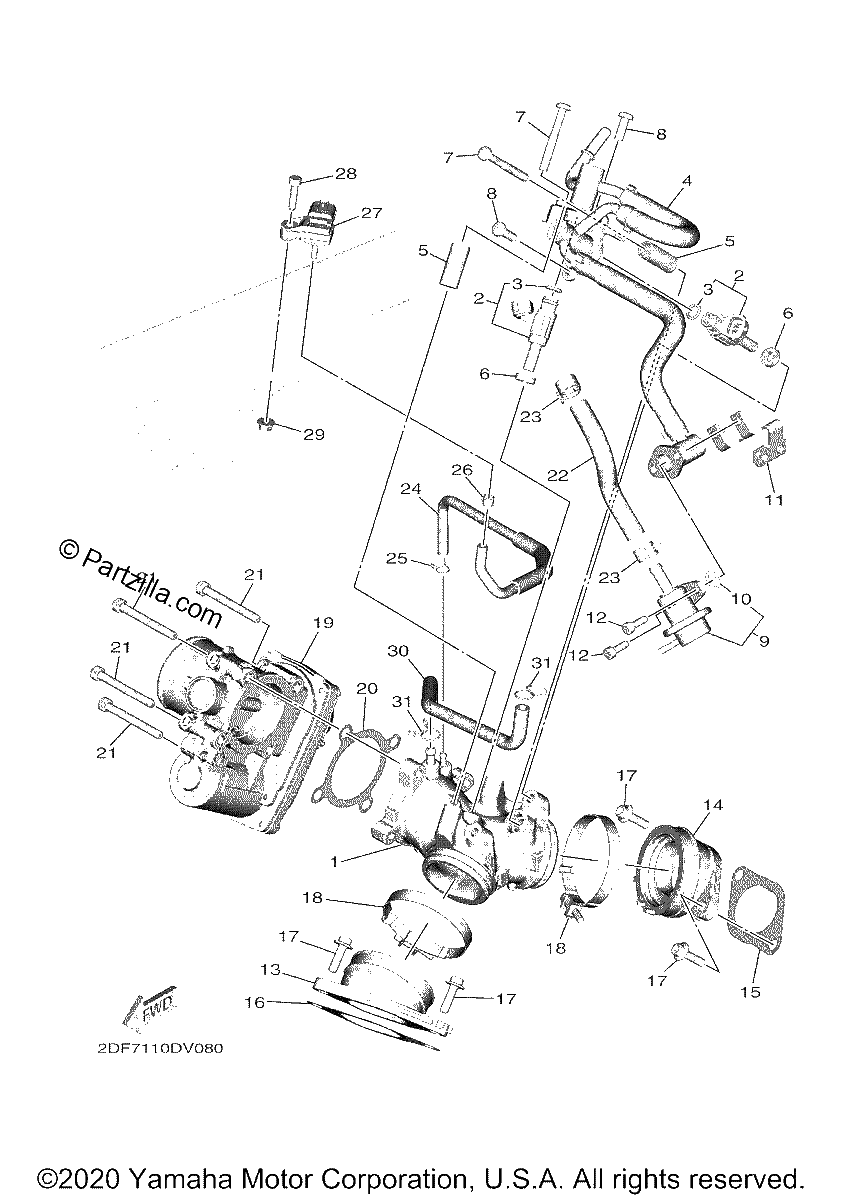

Diagrama de INTAKE

Repuestos

#1
2DF-13640-00-00
MANIFOLD
$224.20¢112 100
1
#2
2DF-13761-00-00
Injector
$105.80¢52 900
1
#3
68V-1416A-00-00
O-Ring
$13.00¢6 500
1
#4
2DF-13930-00-00
PIPE INLET ASSEMBLY
$323.61¢161 806
1
#5
2DF-13716-00-00
Collar
$6.55¢3 275
1
#6
8FP-13556-10-00
Gasket, Manifold
$7.08¢3 538
1
#7
98504-06045-00
SCREW, PAN HEAD (replaces 98502-06045-00) This item has been discontinued and may not be available. Contact us for more information.
$0.72¢363
1
#8
98580-06016-00
SCREW,PAN HEAD (replaces 98502-06016-00)
$3.67¢1 838
1
#9
5C7-13906-00-00
REGULATOR, PRESSURE
$224.44¢112 219
1
#10
5S7-13769-00-00
O-RING
$36.65¢18 325
1
#11
2DF-14291-00-00
BRACKET 1
$14.01¢7 006
1
#12
91312-05014-00
BOLT
$3.26¢1 631
1
#13
2DF-13586-00-00
JOINT, CARBURETOR 1
$66.95¢33 475
1
#14
2DF-13596-00-00
JOINT, CARBURETOR 2
$66.95¢33 475
1
#15
2DF-14457-00-00
SEAL
$18.64¢9 319
1
#16
2DF-14467-00-00
SEAL
$15.89¢7 944
1
#17
90110-06348-00
BOLT, HEXAGON SOCKET (replaces 90110-06347-00)
$3.49¢1 744
1
#18
90450-62004-00
HOSE CLAMP ASSY
$16.89¢8 444
1
#19
2DF-13750-00-00
THROTTLE BODY ASSY
$427.64¢213 819
1
#20
2DF-14452-00-00
SEAL
$11.81¢5 906
1
#21
91312-06050-00
BOLT
$4.65¢2 325
1
#22
2DF-24315-00-00
PIPE 5
$18.43¢9 213
1
#23
90467-12003-00
CLIP
$7.43¢3 713
1
#24
2DF-13542-00-00
HOSE, VACUUM SENSING 1
$10.81¢5 406
1
#25
90467-08021-00
CLIP
$7.34¢3 669
1
#26
90467-07093-00
CLIP
$2.11¢1 056
1
#27
1WS-82380-00-00
Sensor, Pressure
$203.69¢101 844
1
#28
91317-05020-00
bolt
$2.95¢1 475
1
#29
95702-05500-00
NUT,FLANGE (SILVER)
$0.91¢456
1
#30
2DF-14465-00-00
PIPE
$14.74¢7 369
1
#31
90467-090A2-00
Clip
$2.97¢1 487
1
