FUEL TANK 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

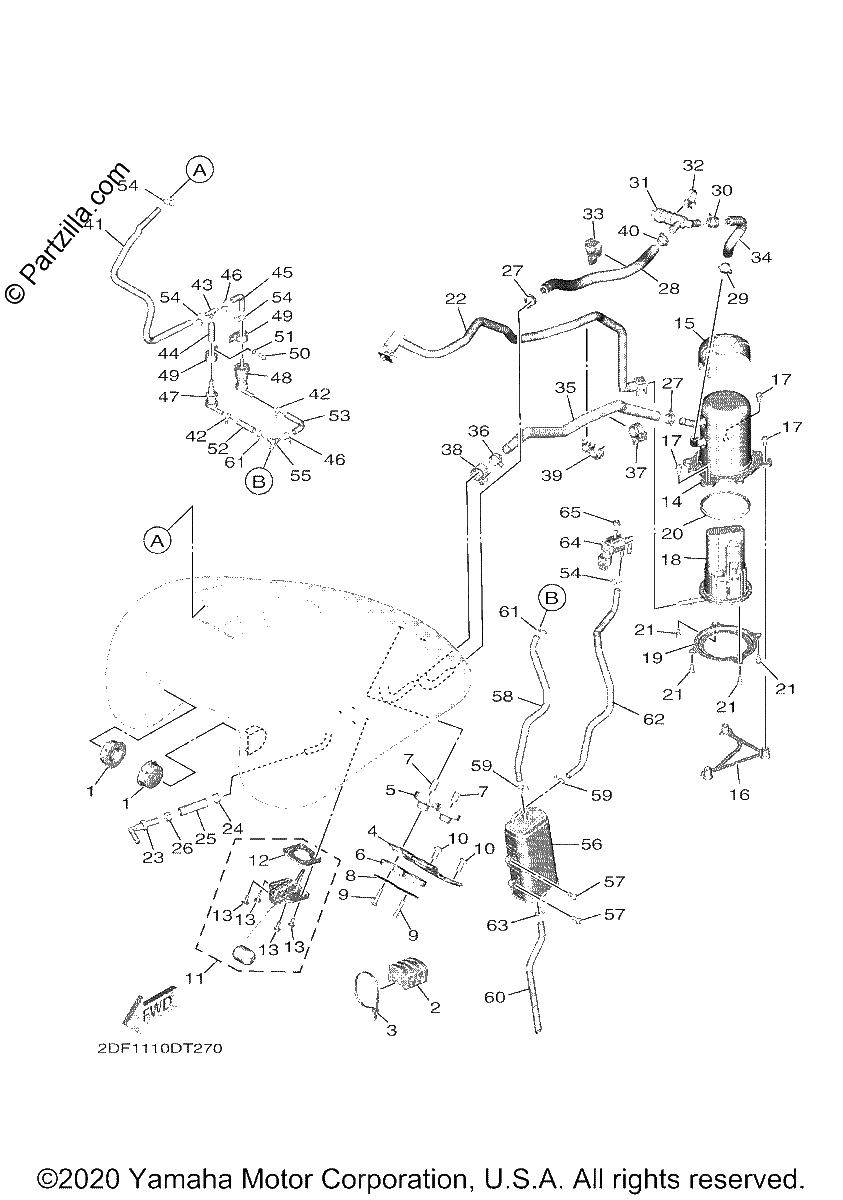

Diagrama de FUEL TANK 2

Repuestos

#1
4H7-24181-00-00
DAMPER, LOCATING 1
$6.52¢3 262
1
#2
2DF-24183-00-00
DAMPER, LOCATING 3
$15.36¢7 681
1
#3
90464-80002-00
CLAMP
$6.14¢3 069
1
#4
2DF-2413Y-00-00
BRACKET, TANK FITTING
$18.10¢9 050
1
#5
2DF-24181-00-00
DAMPER, locating 1
$13.24¢6 619
1
#6
2DF-24182-00-00
DAMPER, locating 2
$9.53¢4 763
1
#7
90387-06553-00
Collar
$8.49¢4 244
1
#8
2DF-24186-00-00
WASHER, special
$4.60¢2 300
1
#9
92012-06025-00
BOLT, BUTTON HEAD
$3.44¢1 719
1
#10
92012-08016-00
BOLT, BUTTON HEAD
$8.31¢4 156
1
#11
2DF-85701-00-00
SENDER ASSY
$124.45¢62 225
1
#12
5G3-85753-00-00
GASKET, SENDER UNIT
$17.96¢8 981
1
#13
90119-05071-00
BOLT, WITH WASHER
$7.77¢3 887
1
#14
2DF-244A0-00-00
PUMP CASE COMP.
$365.30¢182 650
1
#15
2DF-24185-01-00
DAMPER, LOCATING 5
$4.13¢2 063
1
#16
2DF-2412F-00-00
Bracket, Seat
$29.55¢14 775
1
#17
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#18
2DF-13907-00-00
FUEL PUMP COMP.
$390.56¢195 281
1
#19
2DF-24491-00-00
Bracket, Fuel Pump
$18.38¢9 188
1
#20
1RC-24486-00-00
O-RING
$29.22¢14 612
1
#21
91312-05010-00
BOLT
$5.86¢2 931
1
#22
2DF-13971-00-00
PIPE, FUEL 1
$180.44¢90 219
1
#23
2DF-24461-00-00
PIPE, JOINT
$17.71¢8 856
1
#24
90467-150A6-00
CLIP
$6.14¢3 069
1
#25
2DF-24314-00-00
PIPE 4
$5.72¢2 863
1
#26
90467-150A6-00
CLIP
$6.14¢3 069
1
#27
5PX-2411M-00-00
CLIP
$10.54¢5 269
1
#28
2DF-24311-00-00
PIPE, FUEL 1
$32.56¢16 281
1
#29
5PX-2411M-00-00
CLIP
$10.54¢5 269
1
#30
90467-160A2-00
CLIP
$5.19¢2 594
1
#31
1D7-24305-00-00
FUEL PIPE JOINT COMP. 2
$159.82¢79 913
1
#32
90464-20010-00
CLAMP
$2.58¢1 288
1
#33
90464-20237-00
Clamp
$2.20¢1 100
1
#34
2DF-24312-00-00
PIPE 2
$18.79¢9 394
1
#35
2DF-24313-00-00
PIPE 3
$53.15¢26 575
1
#36
90467-160A2-00
CLIP
$5.19¢2 594
1
#37
90464-20016-00
CLAMP
$6.40¢3 200
1
#38
5JW-14723-00-00
COVER 1
$19.38¢9 688
1
#39
90464-19001-00
CLAMP
$1.96¢981
1
#40
5PX-2411M-00-00
CLIP
$10.54¢5 269
1
#41
2DF-24316-00-00
PIPE 6
$34.04¢17 019
1
#42
90467-090A2-00
Clip
$2.97¢1 487
1
#43
90413-07007-00
WAY 3
$10.19¢5 094
1
#44
5UX-24311-00-00
PIPE, FUEL 1
$4.35¢2 175
1
#45
5YU-24314-00-00
PIPE 4
$14.78¢7 388
1
#46
90467-090A2-00
Clip
$2.97¢1 487
1
#47
3UH-24180-00-00
ROLL OVER VLV ASSY
$43.39¢21 694
1
#48
5RB-24180-00-00
ROLL OVER VALVE ASSY
$122.94¢61 469
1
#49
90464-15014-00
Clamp
$2.35¢1 175
1
#50
92012-05014-00
BOLT, BUTTON HEAD
$7.48¢3 738
1
#51
92907-05600-00
WASHER, PLATE
$0.96¢481
1
#52
5UX-24311-00-00
PIPE, FUEL 1
$4.35¢2 175
1
#53
2DF-24322-00-00
PIPE 11
$6.69¢3 344
1
#54
90467-090A2-00
Clip
$2.97¢1 487
1
#55
90413-06002-00
WAY 3
$22.91¢11 456
1
#56
2DF-24170-00-00
CANISTER ASSY
$217.14¢108 569
1
#57
92017-06012-00
BOLT, BUTTON HEAD
$2.44¢1 219
1
#58
2DF-24323-00-00
PIPE 12
$23.49¢11 744
1
#59
90467-090A2-00
Clip
$2.97¢1 487
1
#60
2DF-24324-00-00
PIPE 13
$7.21¢3 606
1
#61
90467-090A2-00
Clip
$2.97¢1 487
1
#62
2DF-24325-00-00
PIPE 14
$33.79¢16 894
1
#63
90467-11106-00
Clip
$3.25¢1 625
1
#64
BG4-86120-00-00
Solenoid Valve Assy
$50.11¢25 056
1
#65
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
