INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

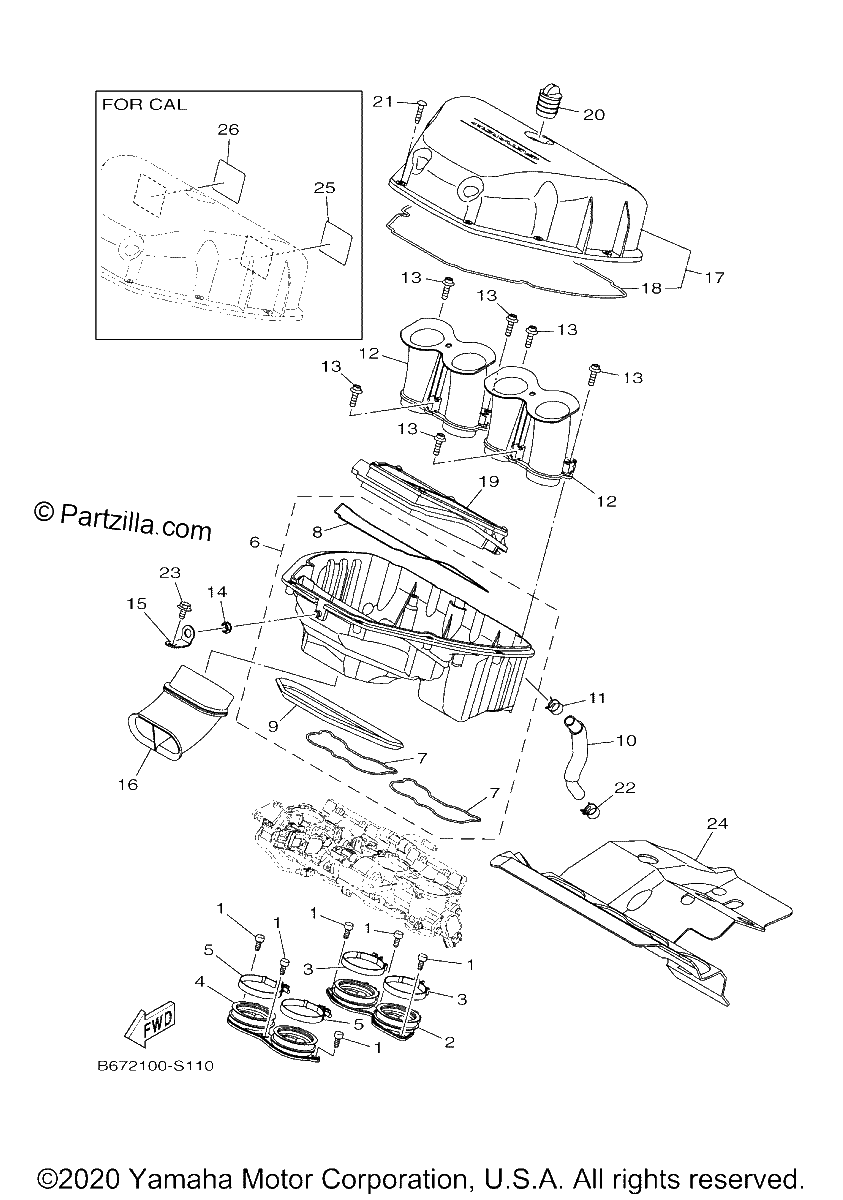

Diagrama de INTAKE

Repuestos

#1
91312-06014-00
bolt
$5.20¢2 599
1
#2
2CR-13635-00-00
JOINT, INTAKE 1
$57.71¢28 853
1
#3
90450-60004-00
HOSE CLAMP ASSY
$16.09¢8 044
1
#4
2CR-13636-00-00
JOINT, INTAKE 2
$57.71¢28 853
1
#5
90450-60004-00
HOSE CLAMP ASSY
$16.09¢8 044
1
#6
B67-14411-00-00
CASE, AIR CLEANER 1
$139.43¢69 713
1
#7
2CR-14457-00-00
SEAL
$6.75¢3 375
1
#8
2CR-14462-00-00
SEAL
$11.94¢5 969
1
#9
2CR-14425-00-00
DAMPER 1
$4.47¢2 237
1
#10
2CR-15393-00-00
PIPE, BREATHER 2
$14.78¢7 389
1
#11
90467-15001-00
CLIP
$6.49¢3 243
1
#12
B67-14469-00-00
FUNNEL, AIR
$51.31¢25 656
1
#13
90110-06163-00
BOLT, HEXAGON SOCKET
$8.39¢4 198
1
#14
90480-12010-00
GROMMET
$5.91¢2 956
1
#15
B67-14498-00-00
STAY 1
$6.64¢3 318
1
#16
B67-14437-00-00
DUCT
$52.22¢26 111
1
#17
B67-14421-00-00
CASE, AIR CLEANER 2
$117.91¢58 955
1
#18
2CR-14452-00-00
SEAL
$19.68¢9 838
1
#19
2CR-14451-00-00
ELEMENT, AIR CLEANER
$38.27¢19 136
1
#20
5VY-14862-00-00
PLUG
$9.95¢4 974
1
#21
90160-05013-00
SCREW, ROUND TAPPING
$6.75¢3 375
1
#22
90467-160A6-00
CLIP
$3.29¢1 644
1
#23
90119-06051-00
BOLT, WITH WASHER
$6.89¢3 444
1
#24
2CR-12682-10-00
PROTECTOR, HEAT
$72.00¢36 001
1
#25
14B-21684-00-00
PLATE, ROUTING | FOR CALIFORNIA
$4.32¢2 162
1
#26
2CR-21686-00-00
PLATE, ROUTING 2 | FOR CALIFORNIA
$8.05¢4 025
1
